Eaton FWP-100B FWP100B BUS 700V HIGH SPEED RPLS FWP-100A

Product Description

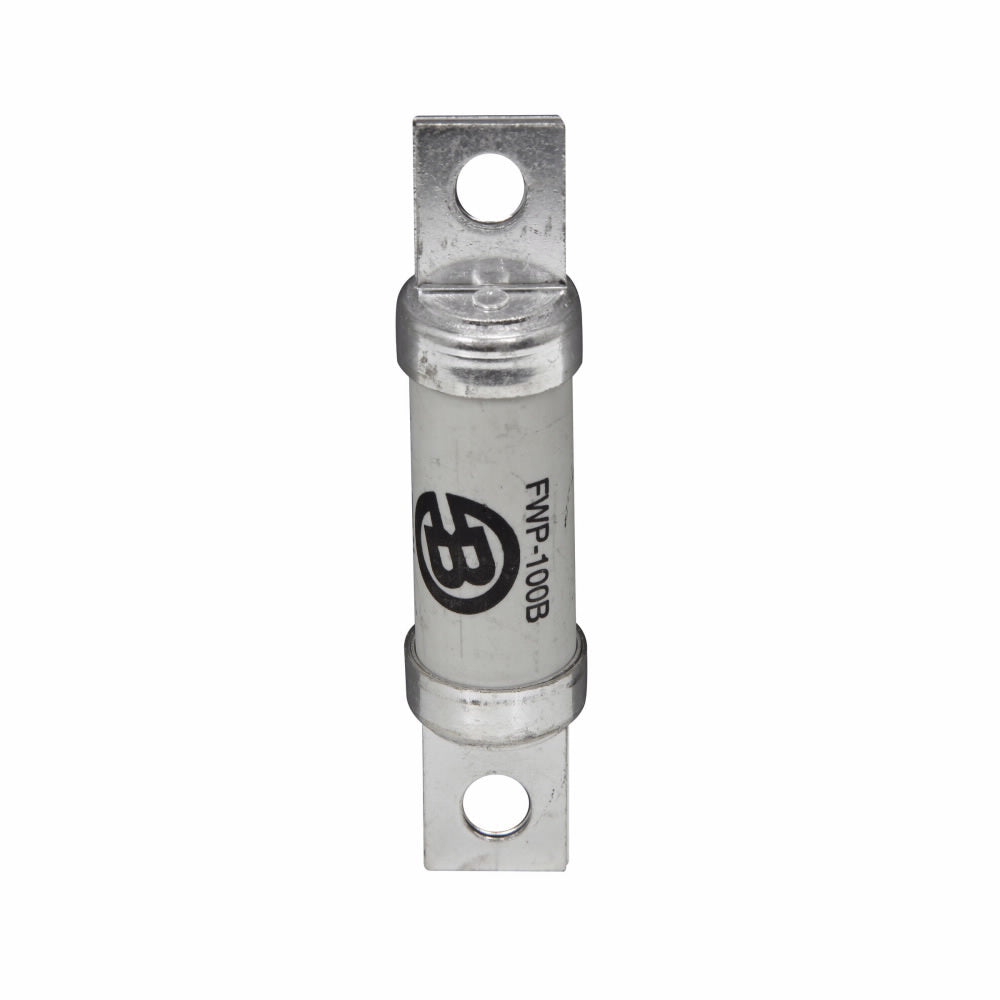

Eaton's FWP-100B is a fast acting semi-conductor high speed fuse designed to protect electrical assemblies. This fuse is rated for one hundred amperes and can handle up to seven hundred volts AC. It has a fifty kiloamp interrupt rating, ensuring effective performance in various applications.

• Fast acting for immediate circuit protection
• Cylindrical body size of zero point nine four seven inches in diameter by four point four oh six inches in length
• Suitable for AC and DC applications like power converters and variable speed drives

Product Highlights

This fuse is non-indicating and designed for easy installation with blade end terminals. Its cylindrical design and single element composition make it a reliable choice for critical power applications.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171279604

Technical Specifications

• Amperage Rating: 100 A
• Voltage Rating: 700 VAC
• Frequency Rating: 45 to 1000 Hz
• Body Size: 0.947 in Dia x 4.406 in L
• Body Type: Cylindrical
• Element: Single
• Mounting Type: Stud
• Material: Ceramic
• Standards/Approvals: CE Marking, CSA Certified, UL Listed
