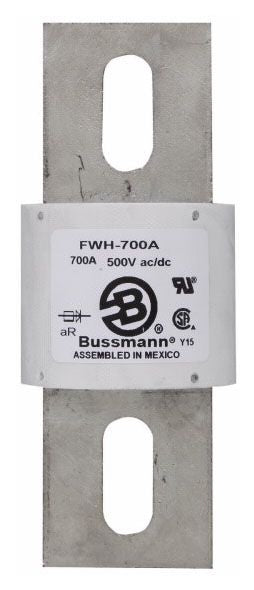

EATON FWH-700A BUSS FUSE 500V SEMICOND FUSE

Product Description

The EATON FWH-700A is a Buss fuse designed for high-speed applications with a voltage rating of five hundred volts. This semi-conductor fuse is suitable for use in various settings, including DC common bus systems, DC drives, and power converters. The fuse has a current rating of seven hundred amps and an interrupting rating of two hundred kiloamps, with an additional fifty kiloamps rating at five hundred volts DC.

• High-speed fuse with a current rating of 700 amps.
• Suitable for DC common bus, DC drive, and power converter applications.
• Includes UL, CSA, and CE approvals for safety compliance.

Product Highlights

Designed to protect electrical circuits, the EATON FWH-700A is a reliable option for high-speed fuse needs.

Product Information

Standard Information

• Manufacturer: EATON
• UPC: 05171215023
• Approval: UL, CSA, CE

Technical Specifications

• Voltage Rating: 500 Volt AC/DC
• Current Rating: 700 Amp
• Interrupting Rating: 200 Kiloamp (Symmetrical); 50 Kiloamp at 500 Volt DC
• Diameter: 2.5 inches
• Length: 6.34 inches
• Terminal Type: Blade
• Mounting Type: Stud
• Country of Origin: MEX
• Currency Code: USD
