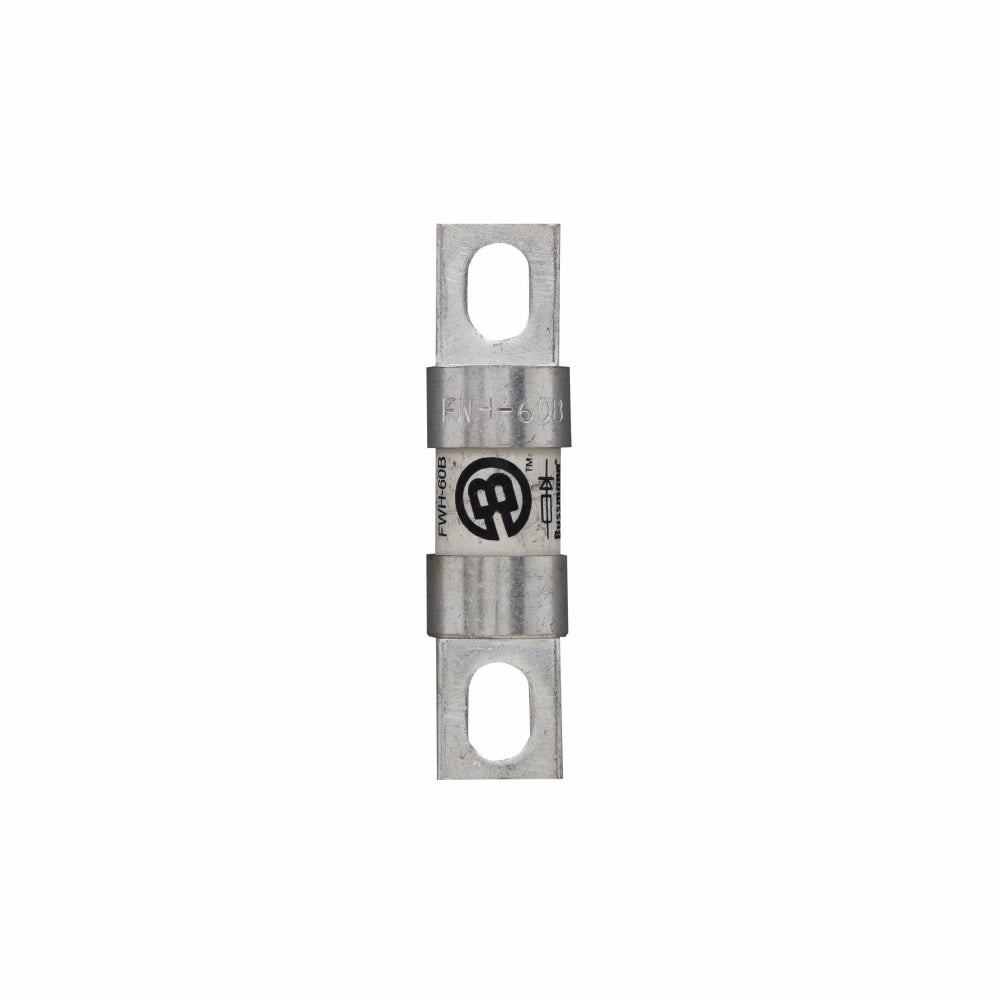

Eaton FWH-60B BUS FUSE 500V SEMICONDUCTOR

Product Description

The Eaton FWH-60B is a fast-acting high-speed fuse designed to protect electrical circuits. It operates at 60 A and supports a voltage rating of 500 VAC. This cylindrical body fuse has a ceramic construction ideal for various industrial applications.

• Fast-acting fuse with a 50 kA interrupt rating.
• Dimensions of zero point eight one three inches in diameter and three point one eight eight inches in length.
• Suitable for AC and DC Drives, power converters, and variable speed drives.

Product Highlights

Designed for use in electrical assemblies and safety systems, perfect for critical power applications.

Product Information

Standard Information

• Manufacturer: Eaton
• Type: Fast Acting

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 500 VAC
• Body Size: 0.813 in dia x 3.188 in L
• Body Type: Cylindrical
• Element: Single
• Material: Ceramic
• Frequency Rating: 45 to 1000 Hz
• Mounting Type: Stud
• Terminal Type: Blade End
• Standards/Approvals: CE Marking, CSA Certified, UL Listed File No. E91958
