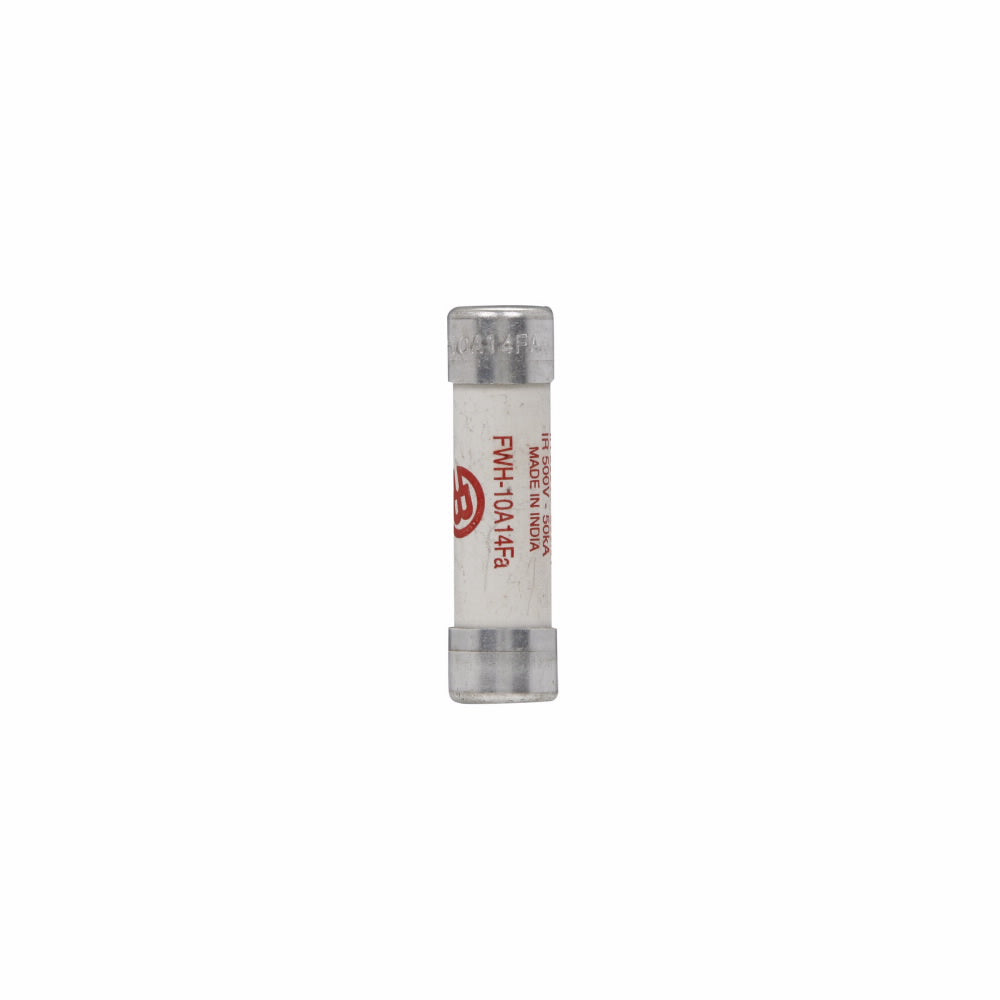

Eaton FWH-10A14F BUS Semiconductor Fuse 10A 500 VAC Replacement MPN

Product Description

Eaton's FWH-10A14F is a high-speed bus semiconductor fuse designed for various electrical applications. This fuse is ideal for protecting AC and DC drives, power converters, and rectifiers. It features a cylindrical body and offers fast acting performance.

• Amperage rating of ten amps
• Voltage rating of five hundred volts AC
• Interrupt rating of two hundred kiloamperes

Product Highlights

This fuse provides excellent cycling capability and is compatible with various holders and blocks.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: FWH-10A14F

Technical Specifications

• Amperage Rating: 10 A
• Voltage Rating: 500 VAC
• Frequency Rating: 45 to 1000 Hz
• Body Size: 0.563 in Dia x 2 in L
• Body Type: Cylindrical
• Material: Ceramic
• Terminal Type: Ferrule End
• Rejection Type: Non-Rejection
• Element Type: Single
• Standards/Approvals: CE Marking, CSA Certified, UL Listed File No. E19180
