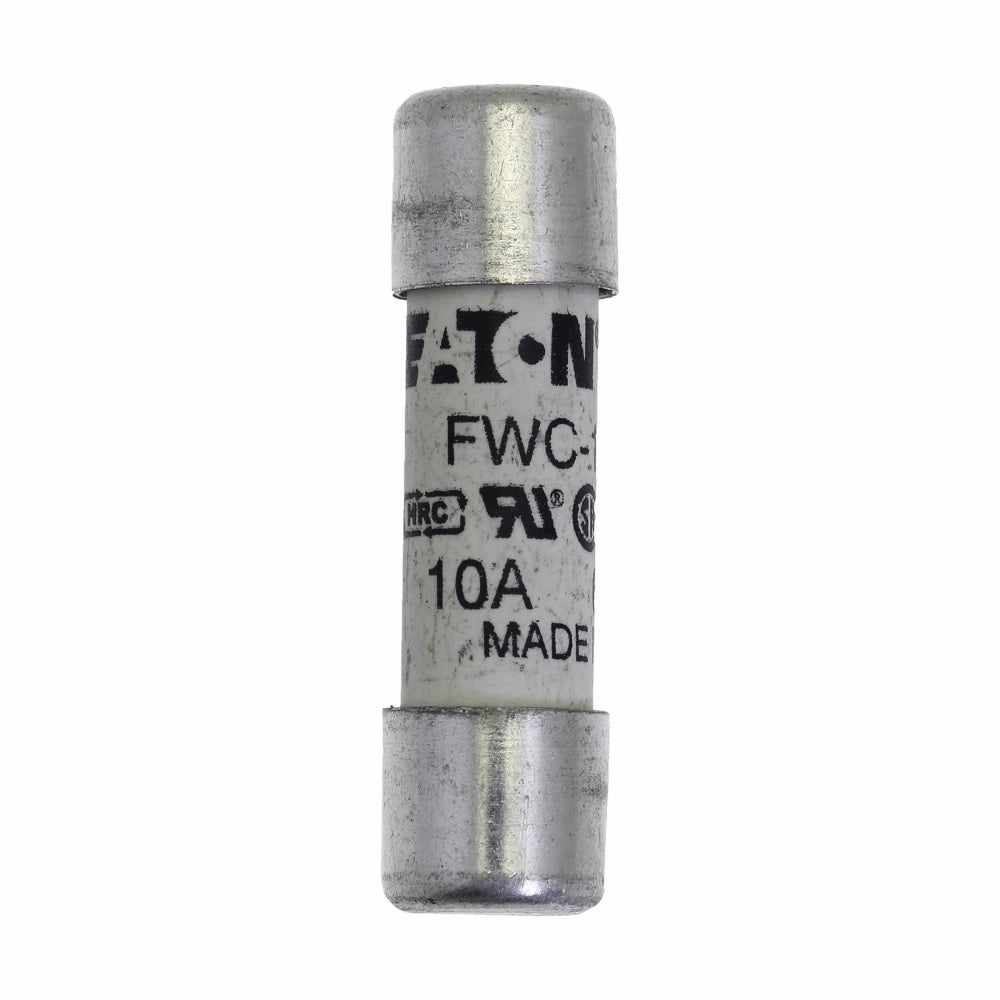

Eaton FWC-10A10F BUS 10A 600V SEMICONDUCTOR FUSE (1)

Product Description

The Eaton FWC-10A10F is a fast-acting high-speed fuse designed to provide optimal protection for electrical systems. This semiconductor fuse operates at ten amperes with a voltage rating of six hundred volts. It is suitable for a range of applications including AC and DC drives, power converters, and variable speed drives.

• Rated for ten amperes and six hundred volts
• Cylindrical body design
• Non-indicating with a fast-acting response

Product Highlights

This product features exceptional cycling capability and low energy let-through. It reduces wattage loss and integrates with finger-safe holders and blocks effectively.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: FWC-10A10F

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 10 A
• Body Size: 0.406 in Dia x 1.5 in L
• Body Type: Cylindrical
• Frequency Rating: 45 to 1000 Hz
• Material: Ceramic
• Mounting Type: Holder
• Terminal Type: Ferrule End
• Series: FWC
• Standards/Approvals: CE Marking, CSA Certified, RoHS Compliant, UL Listed
• Type: Fast Acting
