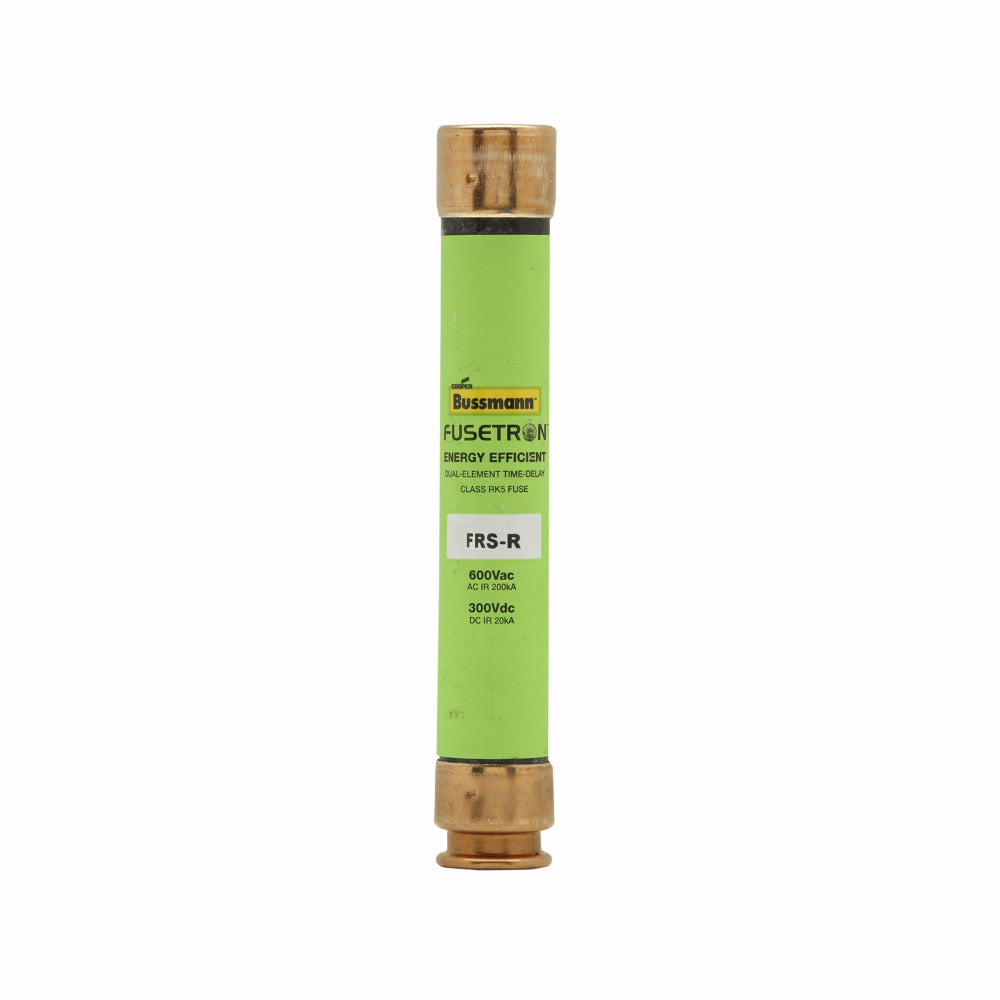

Eaton FRS-R-9 FRSR9 BUS 600V FUSE TRS9R

Product Description

The Eaton FRS-R-9 is a Bussmann Fusetron Time Delay Fuse designed for current limiting applications. It operates at nine amps and can handle up to six hundred volts for alternating current and three hundred volts for direct current. This fuse features a twenty to two hundred kA interrupt rating, making it suitable for a variety of electrical applications.

• Provides current limitation to protect downstream components
• Includes motor back-up protection
• Dual element design for optimal performance

Product Highlights

The FRS-R-9 fuse offers superior overload protection and enhanced motor performance in various setups.

Product Information

Standard Information

• Manufacturer: Eaton
• Fusible Type: Current Limiting Renewable

Technical Specifications

• Amperage Rating: 9 A
• Voltage Rating: 600 VAC / 300 VDC
• Body Size: 0.81 inches Diameter x 5 inches Length
• Class: RK5
• Material: Fiberglass
• Response Time: 10 seconds at 500%
• Element: Dual
• Standards/Approvals: UL 248-12, CSA, CE Certified
