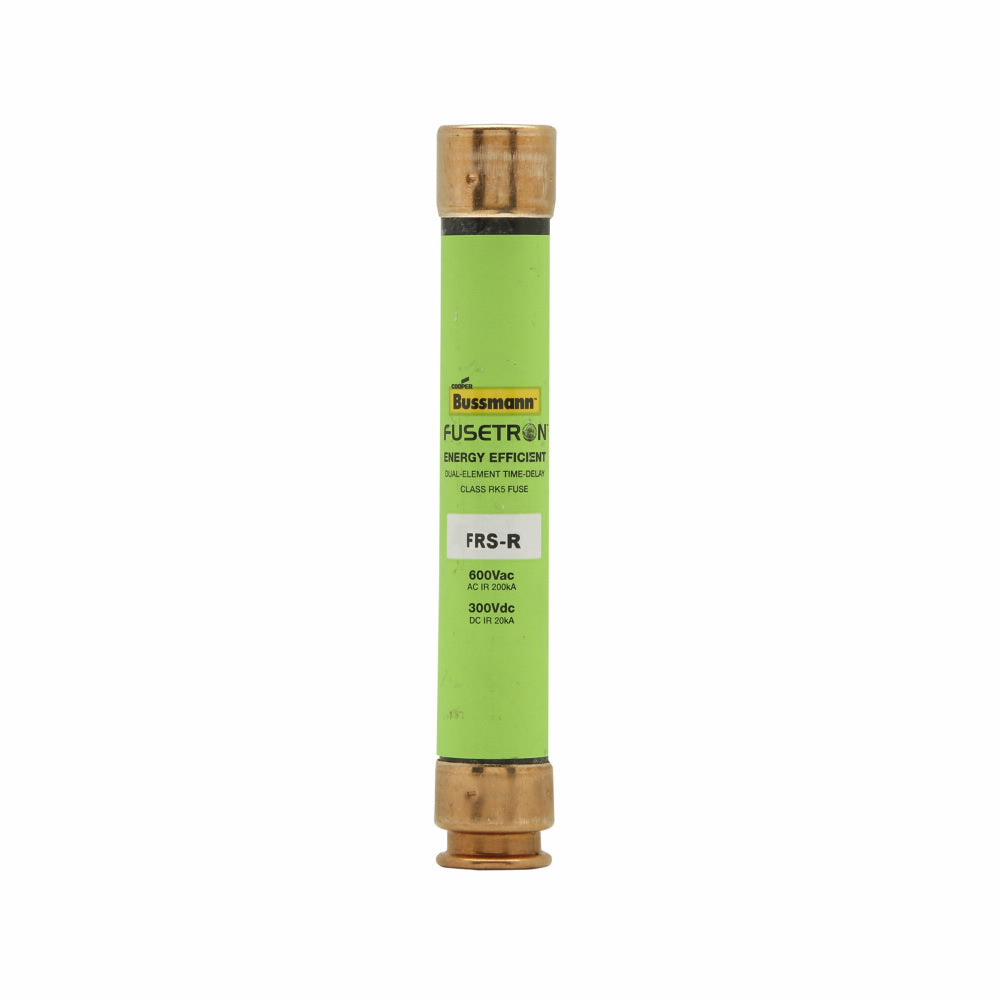

Eaton FRS-R-7-1/2 Bussmann Series Class RK5 Fusetron Dual Element Fuse

Product Description

Eaton FRS-R-7-1/2 fuse is a dual-element, current limiting fuse designed to provide protection to electrical components. It features time-delay characteristics suitable for applications requiring sustained overload support without nuisance blowing. This fuse meets Class RK5 standards and is designed for use in various circuit protection applications.

• Dual-element design for optimal time-delay performance.
• Rated for 7.5 Amps with an interrupting rating of 200 kA at 600 VAC.
• Applications include motor control centers, machinery disconnects, and power panelboards.

Product Highlights

Designed to protect critical electrical components while allowing for safe operation under temporary overload conditions.

Product Information

Standard Information

• Brand: Eaton
• Sub Brand: Fusetron

Technical Specifications

• MPN: FRS-R-7-1/2
• Size: 0.81 inches diameter x 5.0 inches length
• Type: Current limiting renewable
• Voltage Rating: 600 VAC / 300 VDC
• Amperage Rating: 7.5 Amps
• Response Time: 10 seconds at 500%
• Interrupt Rating: 20 kAIC at 300 VDC; 200 kAIC at 600 VAC
• Material: Fiberglass
• Standard: CSA, UL
