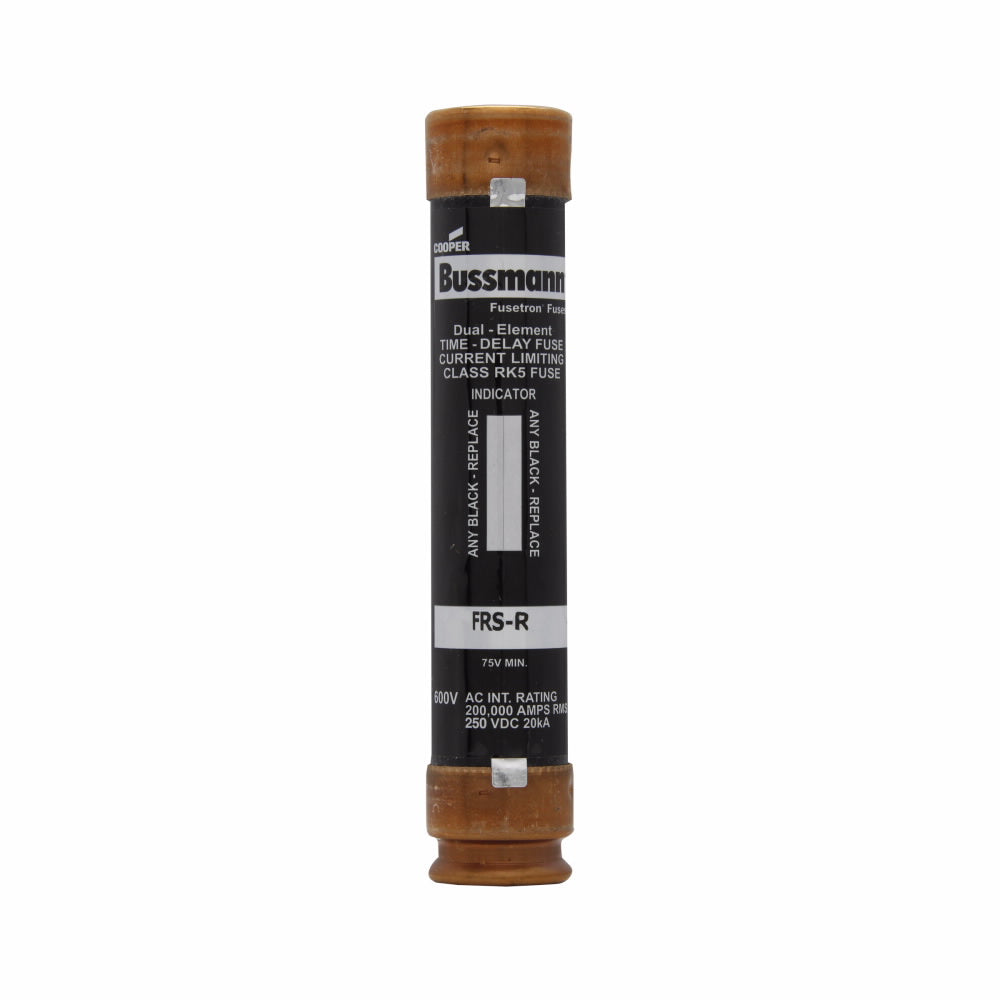

Eaton FRS-R-60ID BUSS FUSETRON DUAL ELEMENT CLASS RK5 INDICATI (1)

Product Description

The Eaton FRS-R-60ID is a Bussmann Fusetron Dual Element Class RK5 Current Limiting Time Delay Fuse. It is rated at sixty amps with a voltage capacity of six hundred VAC and two hundred fifty VDC. This fuse is designed for protection against overload and short circuits, making it suitable for various applications, including motor control centers and industrial equipment.

• Rated for 60 amps
• Voltage rating: 600 VAC/250 VDC
• Class RK5 time delay fuse

Product Highlights

Designed for high-performance protection in motor applications, this fuse features dual elements for added reliability and improved safety.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171220466

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 600 VAC/250 VDC
• Response Time: 10 s at 500%
• Body Size: 1.06 in Dia x 5.5 in L
• Body Type: Cylindrical
• Element: Dual
• Material: Fiberglass
• Indicating: Yes
