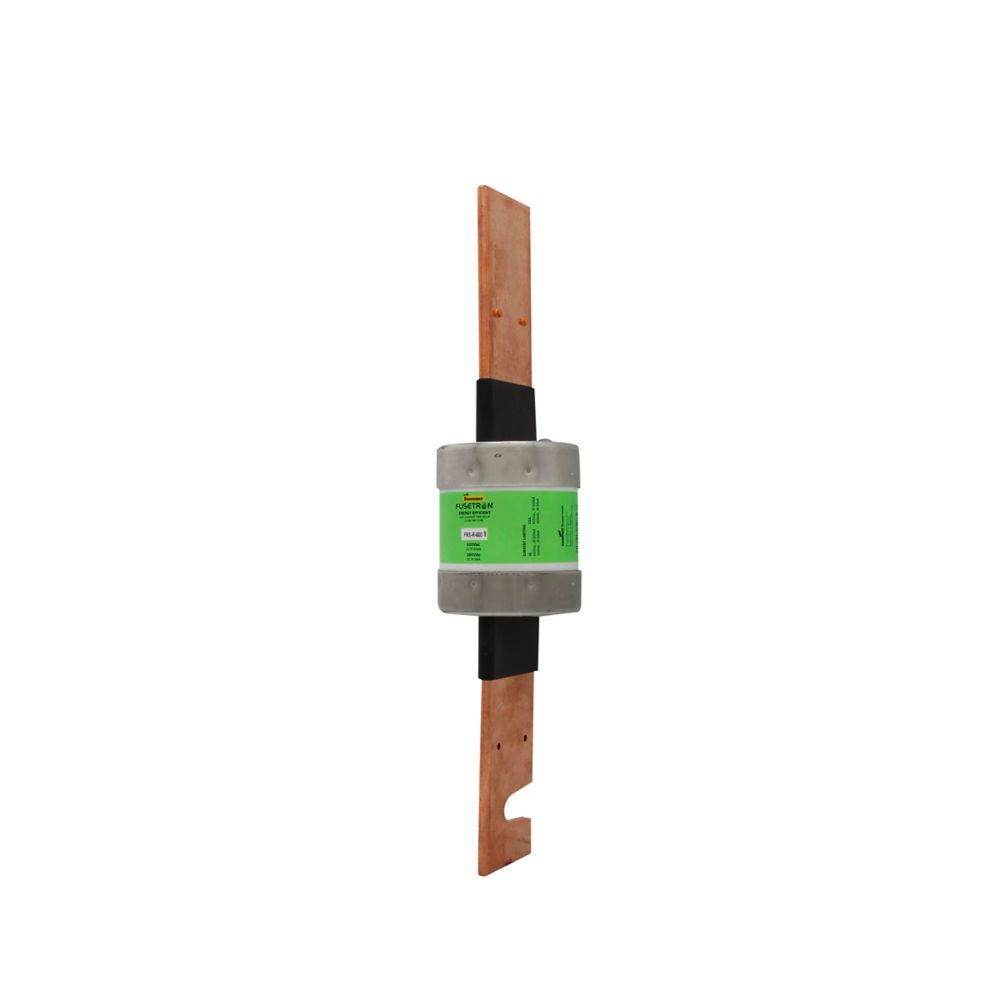

Eaton FRS-R-450 Bussmann Series FRS-R Fuse 450A

Product Description

The Eaton Bussmann Series FRS-R Fuse, MPN FRS-R-450, is a Class RK5, time-delay, dual-element, current limiting, non-indicating fuse with an amperage rating of 450 A. This fuse offers an interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc. It provides energy efficient advanced protection.

• Time-delay
• Dual-element
• Current limiting
• Non-indicating

Product Highlights

Eaton's Bussmann series FRS-R fuse is a reliable choice, offering time-delay and current limiting protection for various applications. It is suitable for use in systems up to 600 Vac and 300 Vdc.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FRS-R-450

Technical Specifications

• Product Name: Eaton Bussmann series FRS-R fuse
• Catalog Number: FRS-R-450
• UPC: 051712508544
• Product Type: Fuse
• Amperage Rating: 450 A
• Interrupt rating: 20 kAIC at 300 Vdc 200 kAIC at 600 Vac
• Response time: 10 sec at 500%
• Voltage rating: 600 Vac, 300 Vdc
• Number of elements: Dual
• Class: Class RK5
• Connection: Blade end x blade end
• Fuse indicator: Non-indicating
• Mfr Fullname: COOPER BUSSMANN
• Additional Information: CURRENT LIMITING
• Characteristics: 10 SEC TIME DELAY (AT 500 PERCENT RATED LOAD), DUAL ELEMENT
• Current Rating: 450 AMPERE
• Terminal Type: BLADE
• Mfrcode: BUSS
• Interrupting Rating: 200000 AMPERE (SYMMETRICAL), 20000 AMPERE (DC)
• Type: CLASS RK5
• Approval: UL 248-12, CSA, CE
• Part Number: FRS-R-450
• Manufacturer: Eaton Cutler-Hammer Breakers
• Family: Fusetron
• Amp: 450
• Volt: 600
• Category: Fuses
• AIC Ratings: 200kA@600V
