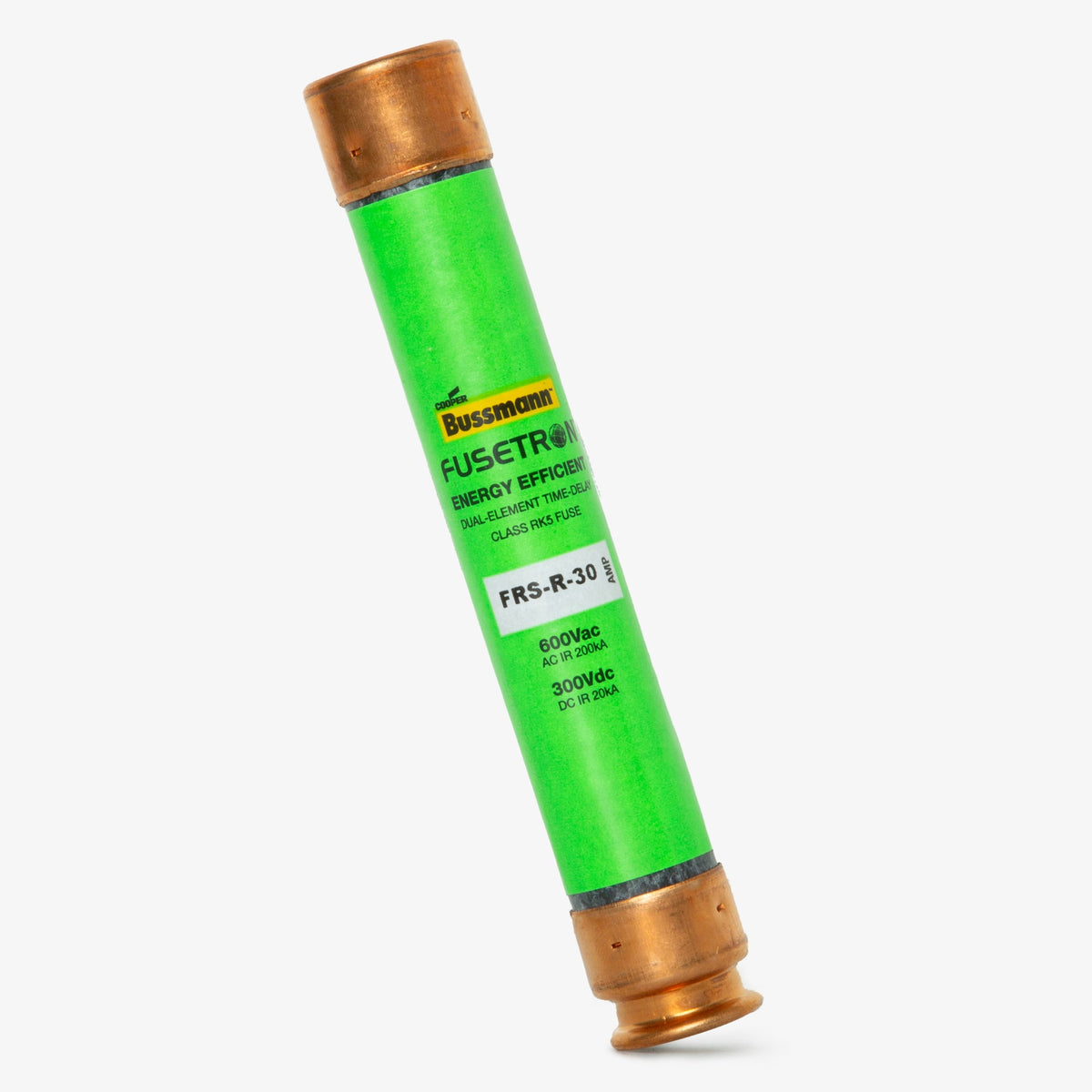

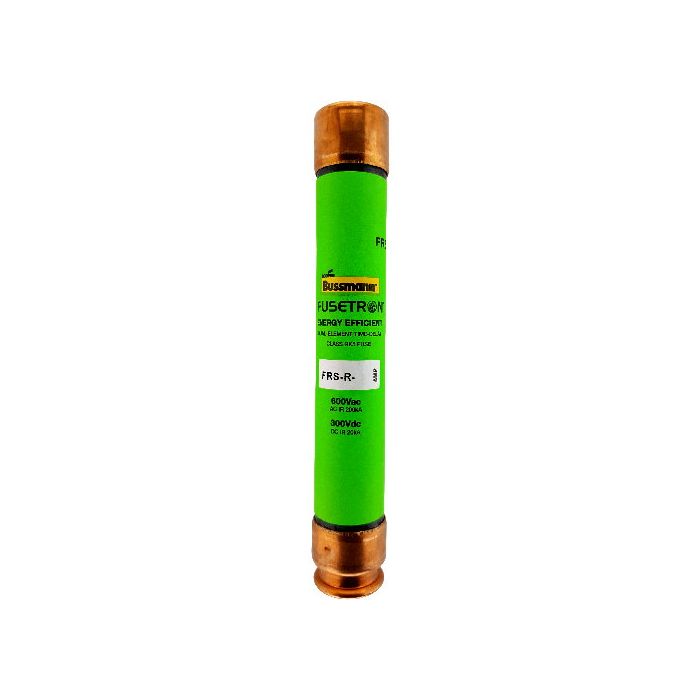

EATON FRS-R-30 Bussmann Series FRS-R Fuse 30A

Product Description

The Eaton Bussmann Series FRS-R Fuse, MPN FRS-R-30, is a reliable Class RK5 fuse designed for current limiting applications. This fuse is essential for protecting electrical circuits by providing a time-delay of 10 seconds at five times the rated current. With an interrupting rating of 200 kA at 600 Vac, it ensures safety and performance in various environments.

• Time-delay feature for enhanced circuit protection
• Dual-element design for effective current limiting
• Non-indicating type for straightforward installation

Product Highlights

This fuse is suitable for use in motor control centers, combination starters, and power panelboards. It features a fiberglass body for durability and a ferrule end connection for easy installation.

Product Information

Standard Information

• Catalog Number: FRS-R-30
• UPC: 051712508346

Technical Specifications

• Amperage Rating: 30 A
• Interrupt Rating: 20 kAIC at 300 Vdc, 200 kAIC at 600 Vac
• Response Time: 10 seconds at 500%
• Voltage Rating: 600 Vac, 300 Vdc
• Number of Elements: Dual
• Packaging Type: Standard
• Class: Class RK5
• Connection: Ferrule end x ferrule end
• Application: Combination starters, motor control centers, machinery disconnects, power panelboards
• Body Material: Fiberglass
• Diameter: 0.81 inches
• Dimensions: 2.34 inches H x 2.34 inches W x 11.63 inches L
• Length Tolerance: +/- 0.31 inches
• Mounting Type: Clip
• Series: FRS-R
• Type: Fuse
• Element: Dual Element
• UL Listed: Class RK5, Guide JDDZ, File E4273
• CSA Certified: Class 1422-01, File 53787
