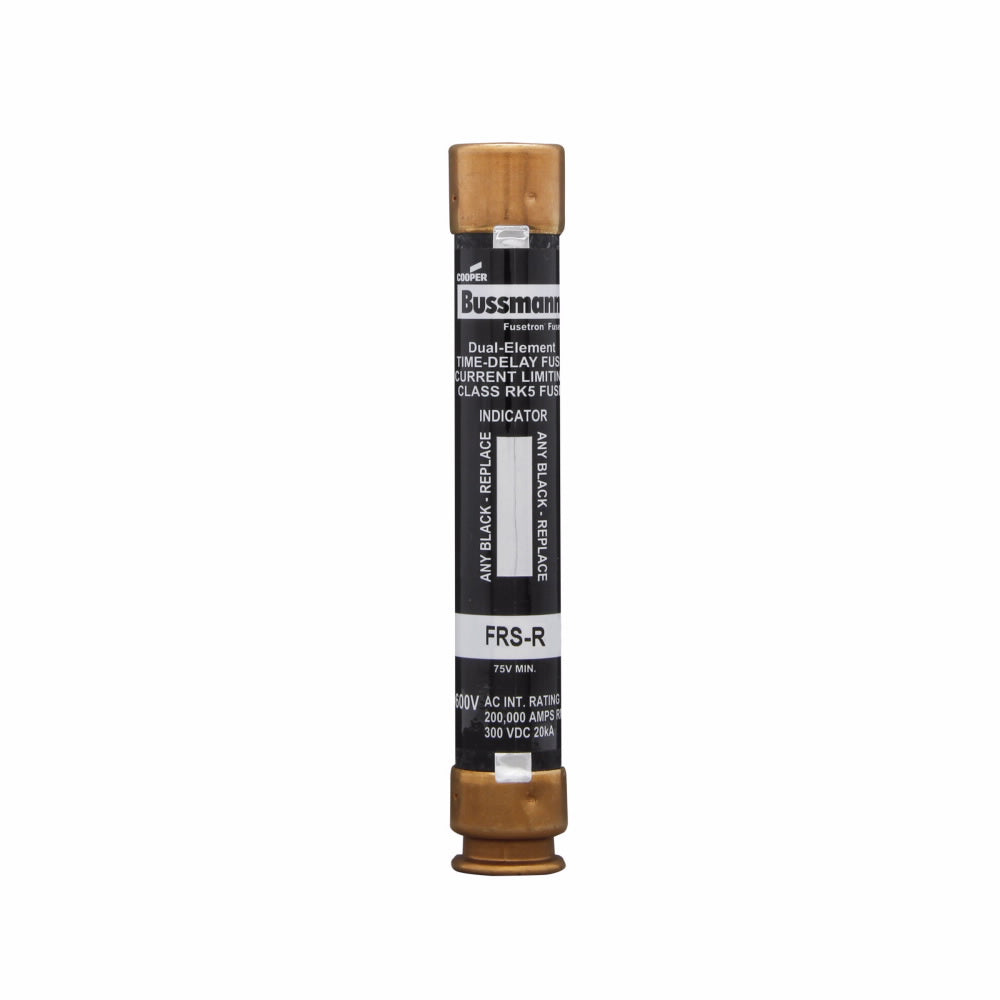

Eaton FRS-R-25ID BUS FUSETRON DUAL ELEMENT CLASS RK5 INDICATING

Product Description

The Eaton FRS-R-25ID is a Bussmann Fusetron fuse designed for current limiting and time delay functions. This fuse operates at a current rating of twenty-five amperes and can handle voltages up to six hundred VAC and three hundred VDC.

• Current limiting time delay functionality
• Suitable for industrial applications and machinery disconnects
• Ferrule end terminal connection

Product Highlights

The FRS-R-25ID fuse is ideal for applications requiring reliable overload protection and quick response. It is a dual-element construction, offering enhanced reliability in a compact design.

Product Information

Standard Information

• Manufacturer: Eaton
• Model Number: FRS-R-25ID

Technical Specifications

• Amperage Rating: 25 A
• Voltage Rating: 600 VAC/300 VDC
• Body Size: 0.81 inches Dia x 5 inches L
• Response Time: 10 seconds at 500%
• Material: Fiberglass
• Mounting Type: Holder
• Interrupt Rating: 200/20 kAIC
• Standards/Approvals: CE Certified, CSA C22.2, UL 248-12
