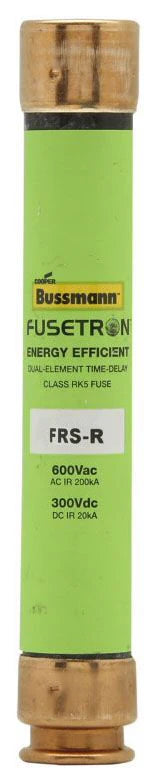

Eaton FRS-R-2-8/10 Bussmann Series FRS-R-2-8/10 Class RK5 Fusetron Dual Element Fuse

Product Description

The Eaton FRS-R-2-8/10 is a Bussmann Series FRS-R dual element fuse designed for various electrical applications. This fuse features a current rating of two point eight amps, a voltage rating of six hundred volts alternating current, and three hundred volts direct current. It has a cylindrical body type with ferrule terminal connections, and it is compliant with UL and CSA standards.

• Current Limiting Renewable Design
• 200 kA Interrupt Rating at 600 VAC and 20 kA at 300 VDC
• 10-second time delay at 500% rating for overload protection

Product Highlights

This fuse offers significant benefits for use in motor control centers, combination starters, and power panelboards. Its dual element construction allows for optimal protection in the event of fault currents, ensuring better safety for downstream equipment.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Amperage Rating: 2.8 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupting Rating: 200 kA at 600 VAC, 20 kA at 300 VDC
• Response Time: 10 seconds at 500% rating
• Body Size: 0.81 inches in diameter x 5 inches length
• End Type: Ferrule
• Class: RK5
• Material: Fiberglass
