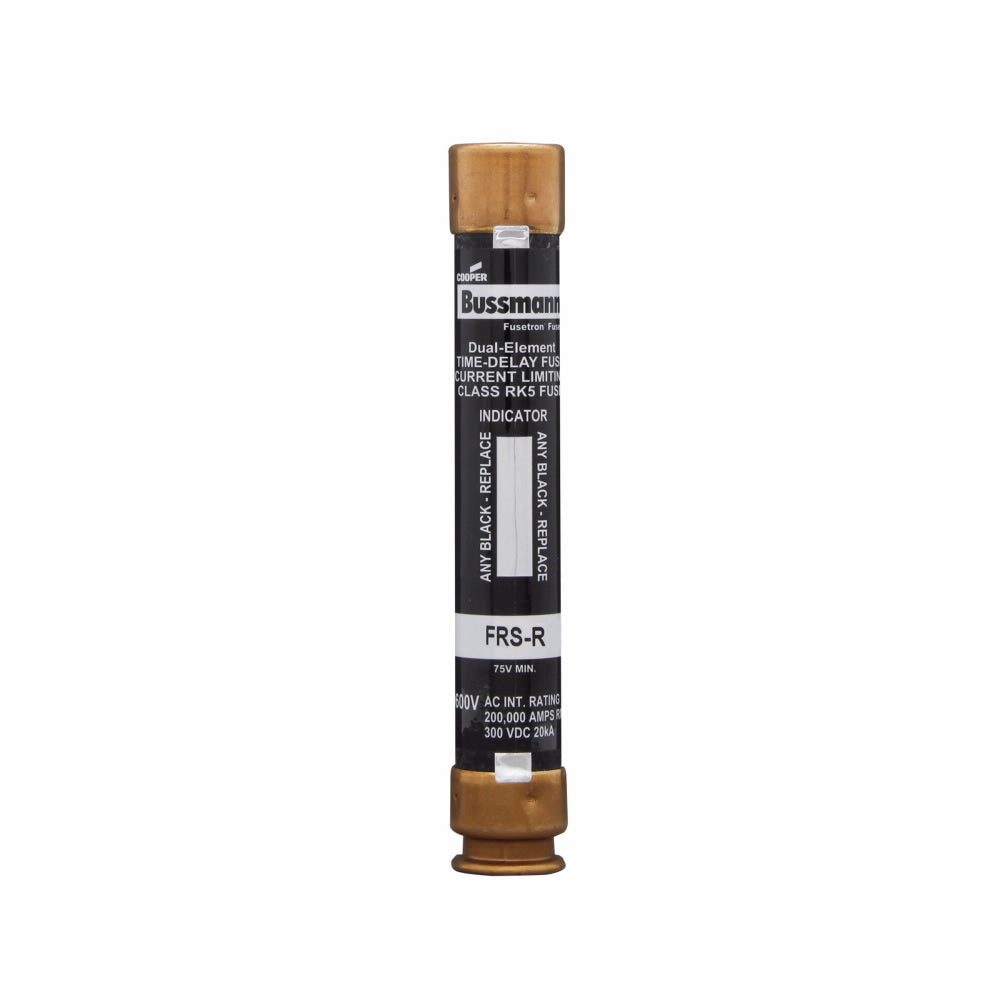

Eaton FRS-R-15ID BUS FUSE FUSETRON DUAL-ELEMENT CLASS RK5 INDICATING FUSE

Product Description

The Eaton FRS-R-15ID is a current limiting time delay fuse designed to safeguard circuits against overloads and short circuits. It features an amperage rating of fifteen amps and can operate at a voltage of six hundred volts AC or three hundred volts DC. This dual-element fuse is ideal for industrial applications, providing reliable protection in motor control centers and other critical systems.

• Current limiting time delay design
• Indicating type for easy monitoring
• Meets UL and CSA standards

Product Highlights

This fuse helps prevent motor burnout and improves system reliability.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171220456

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 600 VAC/300 VDC
• Body Size: 0.81 inches Diameter x 5 inches Length
• Material: Fiberglass
• Mounting Type: Holder
• Response Time: 10 seconds at 500%
• Standards/Approvals: CE Certified, CSA C22.2 File No.53787/248.12, UL 248-12 File No.E4273 Guide JDDZ
• Class: RK5
• Element Type: Dual
• Indicating: Yes
