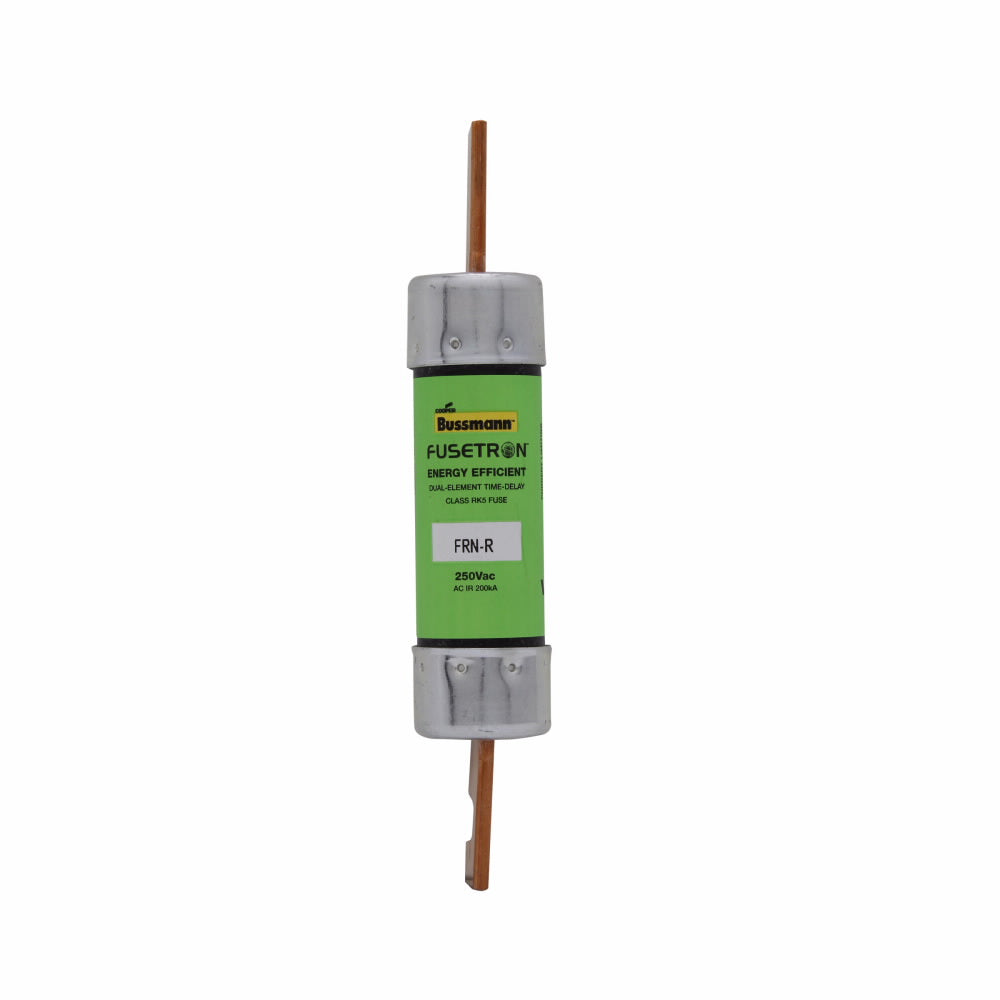

Eaton FRN-R-90 BUS 250V FUSE TR90R

Product Description

The Eaton FRN-R-90 is a Bussmann Fusetron time delay fuse designed to provide reliable protection for electrical circuits. This fuse is rated for ninety amperes with a voltage rating of two hundred fifty volts alternating current and one hundred twenty-five volts direct current. With current limiting capabilities, this fuse is ideal for use in applications that require robust overload protection.

• Time delay of ten seconds at five hundred percent of the rated current
• Rejection feature prevents incorrect fuse installation
• Compatible with various applications including power panel boards and motor control centers

Product Highlights

The Eaton FRN-R-90 provides motor overload and short circuit protection. This dual element fuse simplifies blackout prevention through selective coordination ratios.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171250742

Technical Specifications

• Amperage Rating: 90 A
• Voltage Rating: 250 VAC/125 VDC
• Body Size: 1.06 in Dia x 5.88 in L
• Body Type: Cartridge
• Class: RK5
• Element: Dual
• Material: Fiberglass
• Application: Various, including machinery disconnects and safety systems
