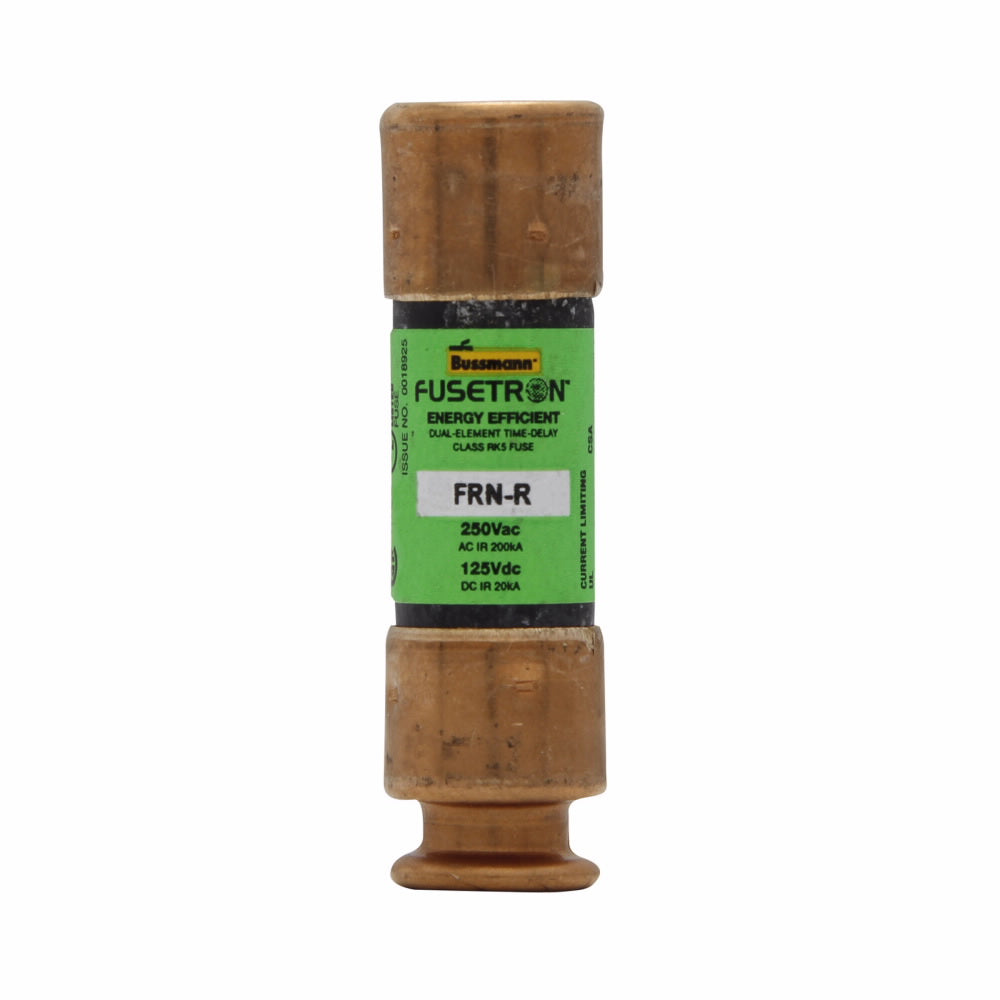

Eaton FRN-R-8/10 Fusetron RK5 Time-Delay Fuse 0.8 A (0.56 in x 2 in)

Product Description

The Eaton FRN-R-8/10 is a Bussmann Fusetron Class RK5 time-delay, dual-element, current-limiting fuse rated 0.8 A. It is rated for 250 VAC and 125 VDC with interrupting ratings of 200 kA at 250 VAC and 20 kA at 125 VDC. The cylindrical fiberglass body measures approximately 0.56 inch diameter by 2 inch length and uses ferrule terminals for holder mounting in motor and panel applications.

• Time-delay, dual-element current-limiting design for temporary motor overloads and inrush currents
• Rated 0.8 A at 250 VAC / 125 VDC with 200 kA AC and 20 kA DC interrupting capability
• Ferrule terminals, rejection-style holder mounting; body size 0.56 in diameter x 2 in length

Product Highlights

Class RK5 Fusetron fuse; non-indicating; approximately 10 s time delay at 500% of rated current; UL, CSA, CE approvals.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FRN-R-8/10
• Country of Origin: Mexico

Technical Specifications

• Brand: EATON
• MPN: FRN-R-8/10
• Series: Bussmann FRN-R
• Product Type: Fuse
• Fuse Class: RK5
• Fuse Type: Time-delay, dual-element, current-limiting
• Amperage Rating: 0.8 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupting Rating: 200 kA at 250 VAC; 20 kA at 125 VDC
• Response Time: Approximately 10 s at 500% of rated current (8 s for some smaller sizes)
• Element: Dual
• Indication: Non-indicating
• Body Size / Dimensions: 0.56 in diameter x 2 in length
• Terminal Type: Ferrule
• Connection Type: Ferrule end x ferrule end (rejection style for holder mounting)
• Material: Fiberglass
• Approvals / Standards: UL 248-12; CSA C22.2; CE
• Applications: Combination starters, motor control centers, machinery disconnects, power panelboards
• Class / Sub Brand: Fusetron
