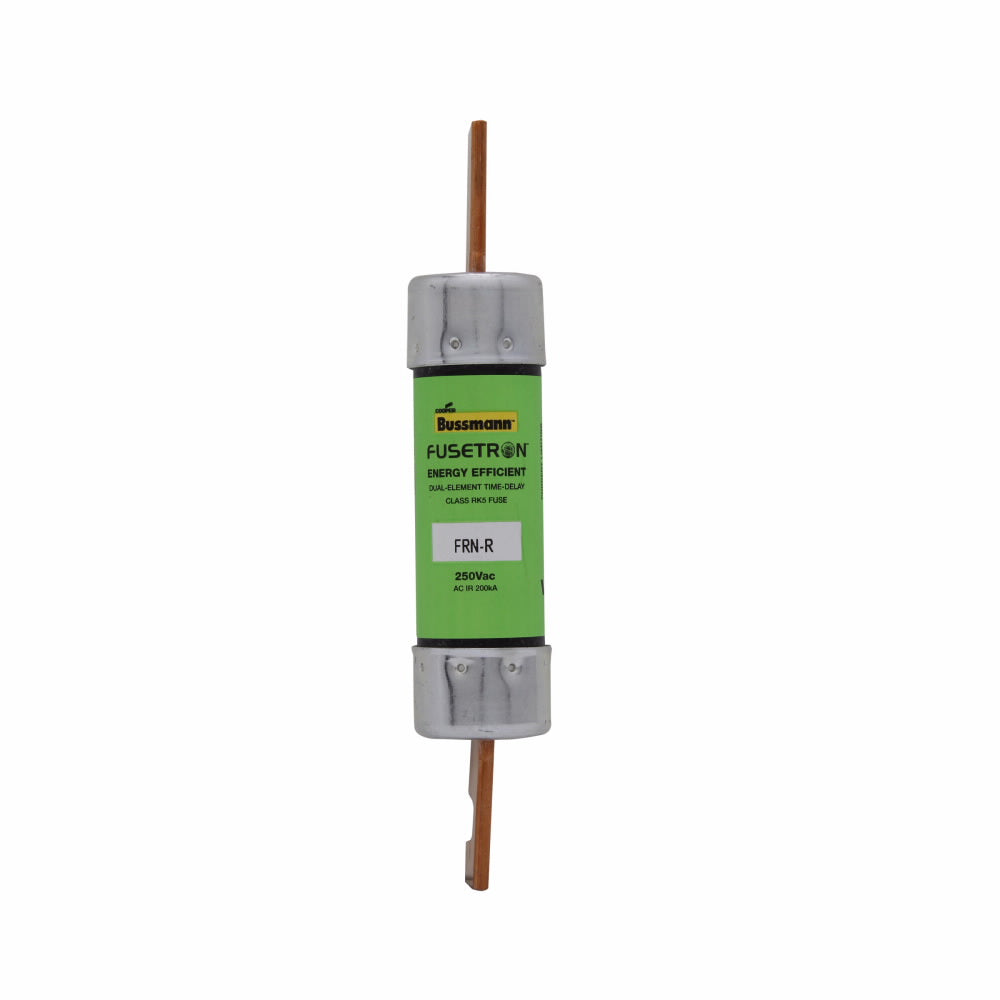

Eaton FRN-R-75 FRNR75 Buss 250V Fuse TR75R (1)

Product Description

Eaton FRN-R-75 Buss Fusetron Time Delay Fuse provides essential protection for electrical circuits. This fuse is rated at seventy-five amps with a voltage capacity of two hundred fifty volts AC and one hundred twenty-five volts DC. It is a current limiting fuse with a fiberglass body, designed to fit holder mounts seamlessly.

• Protects against overloads and short circuits
• Compatible with motor control centers and machinery disconnects
• Features a ten-second response time at five hundred percent of the rated current

Product Highlights

This fuse is ideal for use in combination starters and power panelboard applications, offering reliable performance in demanding environments.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171250693

Technical Specifications

• Amperage Rating: 75 A
• Voltage Rating: 250 VAC/125 VDC
• Response Time: 10 s
• Body Size: 1.06 in Dia x 5.88 in L
• Body Type: Cartridge
• Element: Dual
• Terminal Type: Knife Blade
• Class: RK5
• Material: Fiberglass
• Mounting Type: Holder
• Standards/Approvals: UL 248-12, CSA File No. 53787, CE Certified
