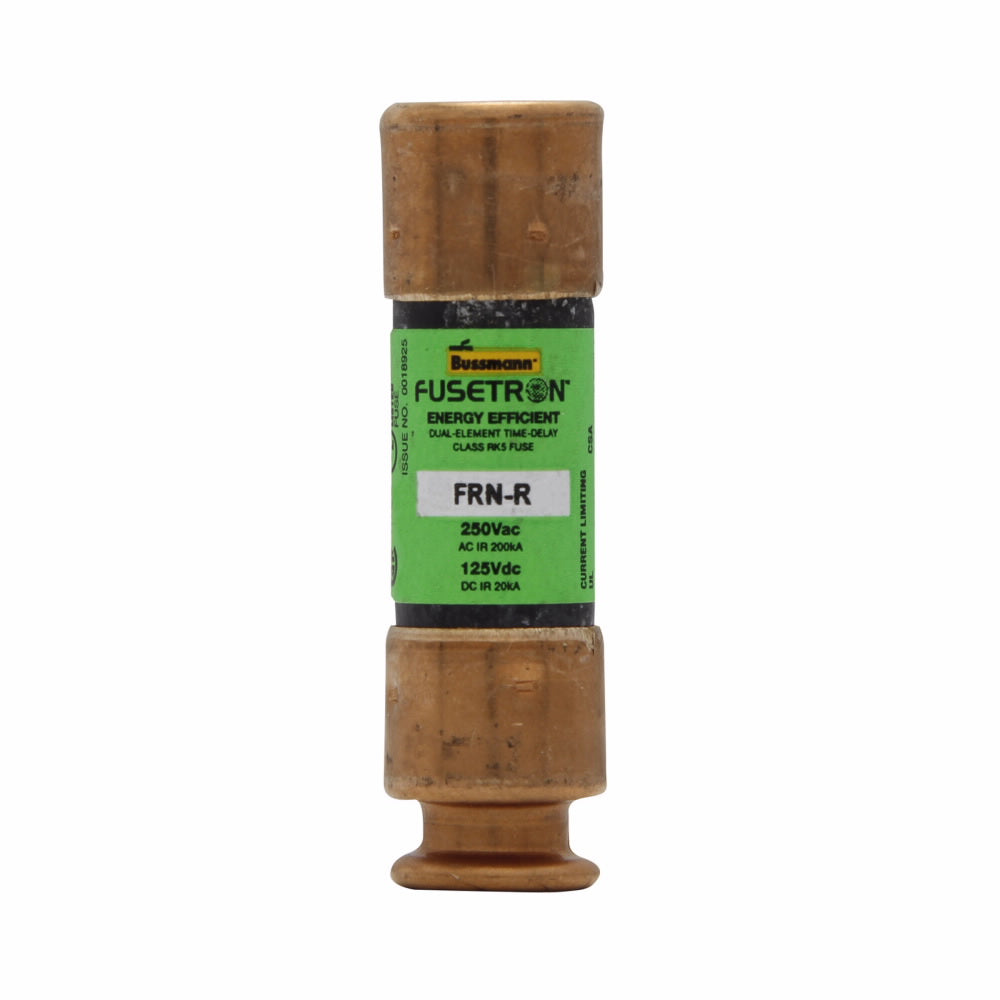

Eaton FRN-R-6/10 Bussmann Series FRN-R-6/10 Class RK5 Fusetron Dual Element Fuse

Product Description

The Eaton Bussmann series FRN-R-6/10 is a class RK5 dual element fuse designed for optimal protection in electrical circuits. With a rated current of 0.6 A, this fuse is ideal for applications requiring reliable overload protection. The fuse operates at voltages of 250 VAC and 125 VDC, ensuring a wide range of compatibility with various electrical systems.

• Current Limiting Time Delay Feature
• Dual Element for Enhanced Protection
• Ferrule End Connection Type

Product Highlights

This fuse is suitable for protecting motors, machinery, and panelboards in industrial settings.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: FRN-R-6/10

Technical Specifications

• Amperage Rating: 0.6 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupt Rating: 200 kAIC at 250 VAC, 20 kAIC at 125 VDC
• Body Size: 0.56 in diameter x 2 in length
• Body Type: Cylindrical
• Element Type: Dual
• Response Time: 10 seconds at 500%
• Mounting Type: Holder
