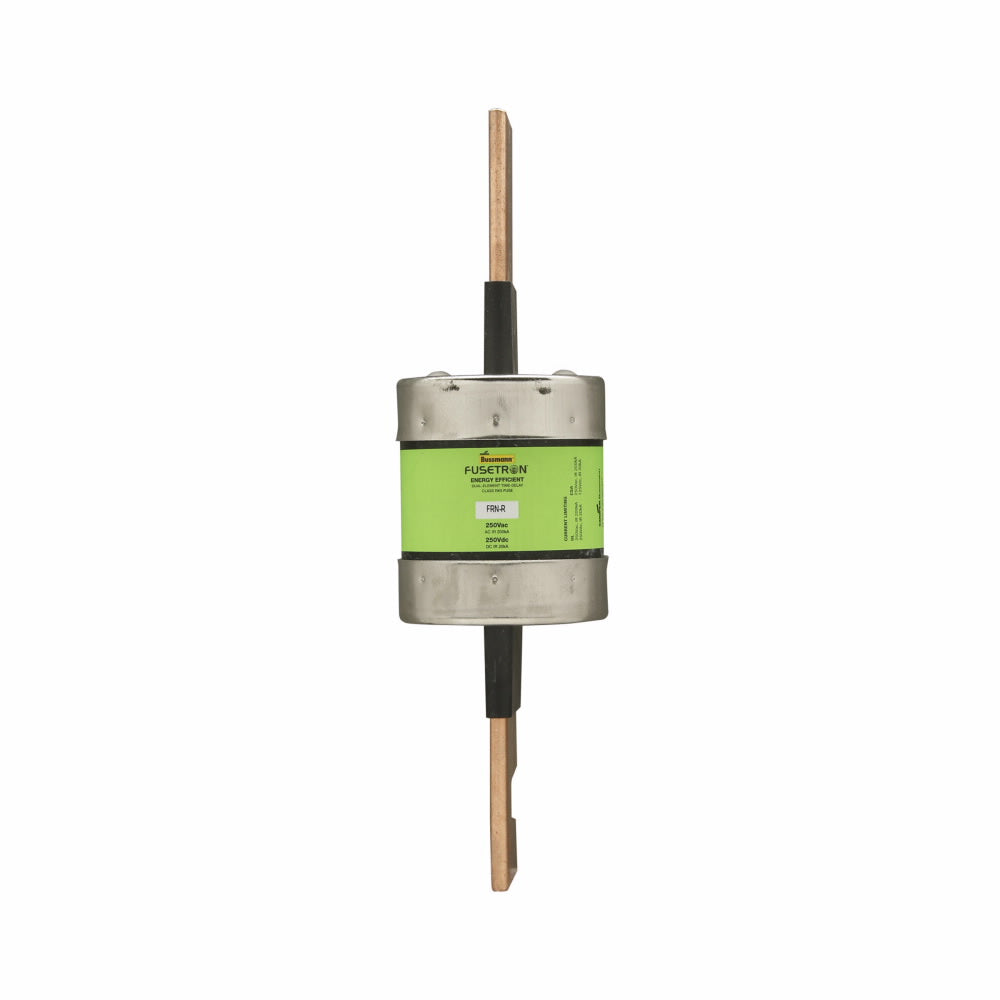

Eaton FRN-R-500 Fusetron 500 A Time-Delay Fuse (2.88 in x 10.38 in)

Product Description

The Eaton FRN-R-500 is a Bussmann Fusetron Class RK5 dual-element, time-delay, current-limiting fuse rated 500 A. It is non-indicating and rated 250 Vac / 250 Vdc with an interrupting rating of 200 kA at 250 Vac and 20 kA at 250 Vdc. The cartridge body measures 2.88 in diameter x 10.38 in length and uses blade terminals for holder mounting, suitable for motor control centers, panelboards, and combination starters.

• Dual-element, time-delay construction with minimum 10 s time delay at 500% of rated current
• Current-limiting Fusetron design rated 500 A; 250 Vac / 250 Vdc voltage rating
• Interrupting rating 200 kA at 250 Vac and 20 kA at 250 Vdc; blade end terminals for holder mounting

Product Highlights

Class RK5 Fusetron, 500 A, 250 Vac/250 Vdc, 200 kA interrupting rating

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FRN-R-500
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton (Bussmann)
• Manufacturer Part Number: FRN-R-500
• Series / Class: Class RK5 (FRN-R)
• Amp Rating: 500 A
• Voltage Rating: 250 Vac / 250 Vdc
• Fuse Type: Fusetron, dual-element, time-delay, current-limiting
• Element: Dual
• Time Delay Characteristic: 10 s at 500% of rated current
• Interrupting Rating: 200 kA at 250 Vac; 20 kA at 250 Vdc
• Body Size: 2.88 in diameter x 10.38 in length
• Body Type: Cartridge
• Terminal Type: Blade end
• Connection: Blade end x blade end
• Mounting Type: Holder
• Indication: Non-indicating
• Standards/Approvals: UL, CSA C22.2, CE
• Typical Applications: Motor control centers; power panelboards; combination starters; machinery disconnects
