Eaton FRN-R-4-1/2 Fusetron Dual-Element Fuse 4.5 A (0.56 in x 2.00 in)

Product Description

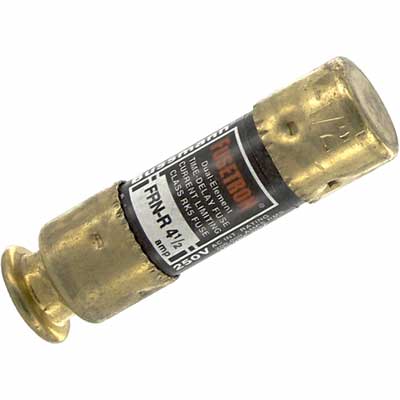

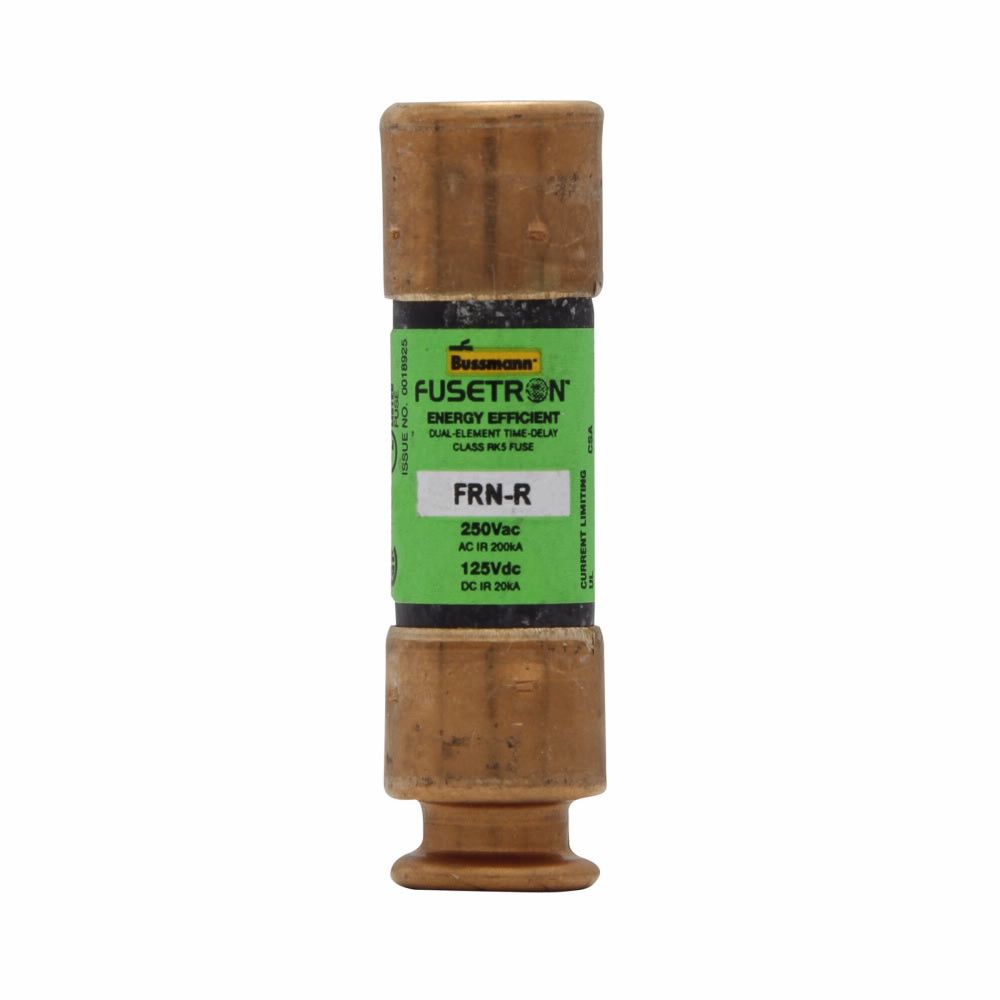

Eaton FRN-R-4-1/2 is a Bussmann Fusetron dual-element, time-delay, current-limiting cartridge fuse rated 4.5 A. It is non-indicating and rated for 250 VAC and 125 VDC with an interrupting rating of 200 kA at 250 VAC and 20 kA at 125 VDC and a typical 8 second time-delay at 500% of rated current. The RK5 cylindrical body uses ferrule end terminals for holder mounting and measures 0.56 in diameter by 2.00 in length.

• Dual-element, time-delay current-limiting design with approx. 8 s time-delay at 500%
• Rated current 4.5 A; voltage rating 250 VAC / 125 VDC; non-indicating
• Interrupting rating 200 kA at 250 VAC and 20 kA at 125 VDC; ferrule end x ferrule end connection; 0.56 in x 2.00 in

Product Highlights

Class RK5 Fusetron fuse, 4.5 A, time-delay dual-element, 200 kA/20 kA interrupting ratings, ferrule terminal, 0.56 in x 2.00 in

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FRN-R-4-1/2
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: FRN-R-4-1/2
• Brand: Eaton
• Series / Class: Bussmann FRN-R / Class RK5
• Product Type: Current-limiting fuse (cartridge)
• Fuse Type: Time-delay, dual-element, current-limiting
• Rated Current: 4.5 A
• Voltage Rating: 250 VAC; 125 VDC
• Interrupting Rating: 200 kA at 250 VAC; 20 kA at 125 VDC
• Response Time: 8 s at 500% (typical for this size)
• Element: Dual
• Indication: Non-indicating
• Body Size / Dimensions: 0.56 in diameter x 2.00 in length
• Body Material: Fiberglass
• Connection Type: Ferrule end x Ferrule end
• Mounting Type: Holder / clip mount
• Standards / Approvals: UL 248-12; CSA; CE
• Applications: Combination starters, motor control centers, machinery disconnects, power panelboards, industrial facility safety and security systems
• Weight: 0.0550 lb
• UPC: 05171250721
• GTIN: 00051712507219
• Country of Origin: Mexico
