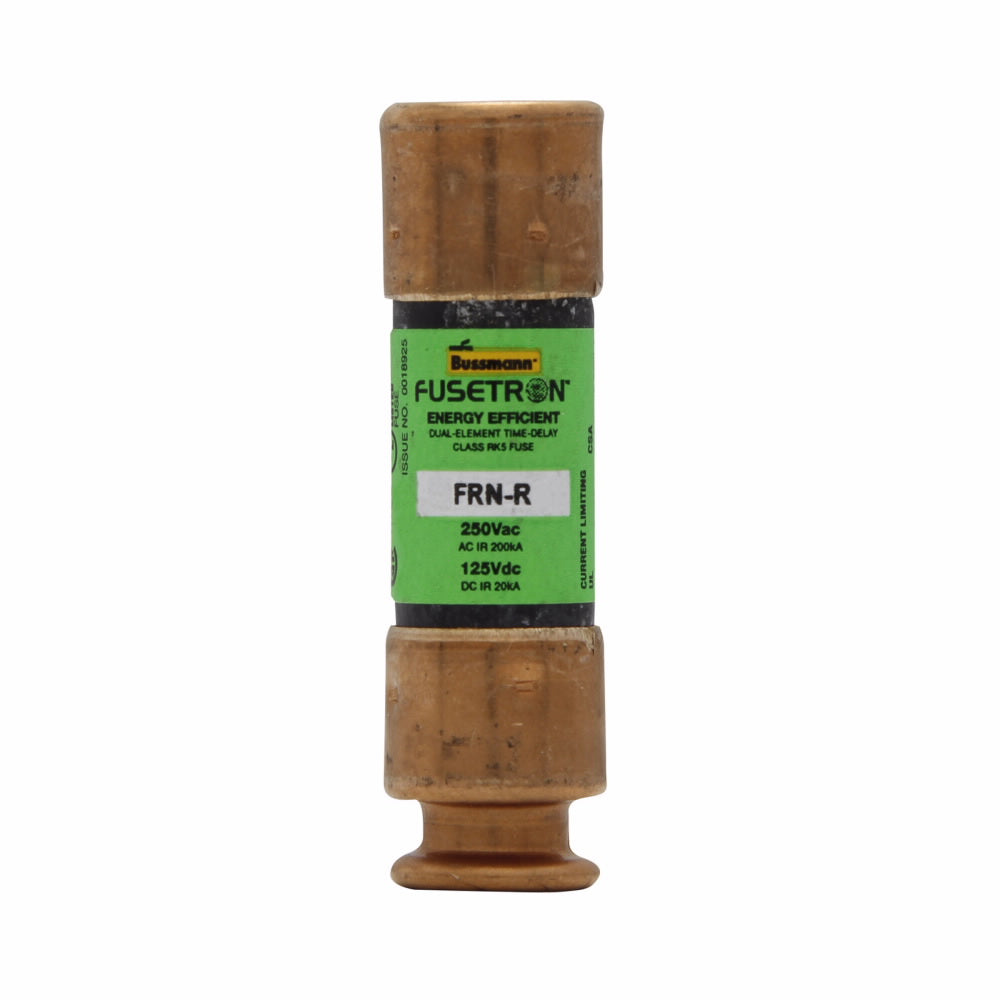

Eaton FRN-R-2-1/4 Bussmann Fusetron Class RK5 Dual Element Fuse 2.25 A (0.56 in x 2.00 in)

Product Description

Eaton FRN-R-2-1/4 is a Bussmann Fusetron Class RK5 time-delay, dual-element, current-limiting fuse rated 2.25 A for 250 VAC and 125 VDC circuits. It has ferrule end terminals and a 0.56 in diameter by 2.00 in length fiberglass body with interrupting ratings of 200 kA at 250 VAC and 20 kA at 125 VDC. The fuse tolerates inrush currents and is used for motor protection and power distribution in combination starters, motor control centers, machinery disconnects, and panelboards.

• Current rating: 2.25 A; voltage rating: 250 VAC / 125 VDC; non-indicating
• Time-delay, dual-element, current-limiting design; response time 8 s at 500%; high interrupting ratings (200 kA at 250 VAC, 20 kA at 125 VDC)
• Fiberglass cylindrical body 0.56 in dia x 2.00 in L with ferrule end x ferrule end terminals; holder mount compatible

Product Highlights

Class RK5 time-delay dual-element fuse for motor and panel protection; 2.25 A; 200 kA interrupting at 250 VAC; ferrule end terminals.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FRN-R-2-1/4
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: FRN-R-2-1/4
• Series: Bussmann FRN-R
• Sub Brand: Fusetron
• Class: RK-5
• Fuse Type: Time-delay, dual-element, current-limiting
• Current Rating: 2.25 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupting Rating (250 VAC): 200 kA
• Interrupting Rating (125 VDC): 20 kA
• Response Time: 8 s at 500%
• Dimensions: 0.56 in diameter x 2.00 in length
• Terminal Type: Ferrule end x ferrule end
• Body Material: Fiberglass
• Mounting Type: Holder
• Indicating: Non-indicating
• Applications: Combination starters; motor control centers; machinery disconnects; power panelboards
• Weight: 0.04 lb
• Certifications: CE; CSA C22.2; UL 248-12
• UPC: 05171250715
