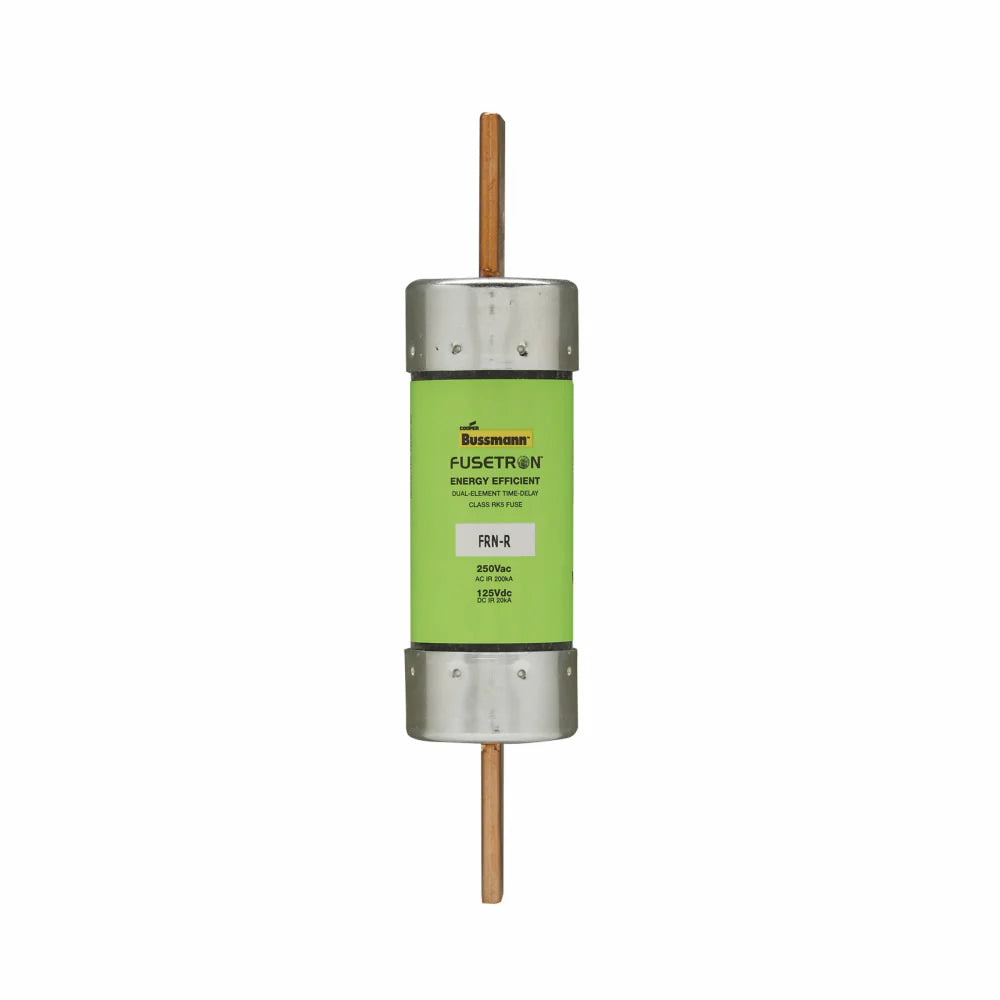

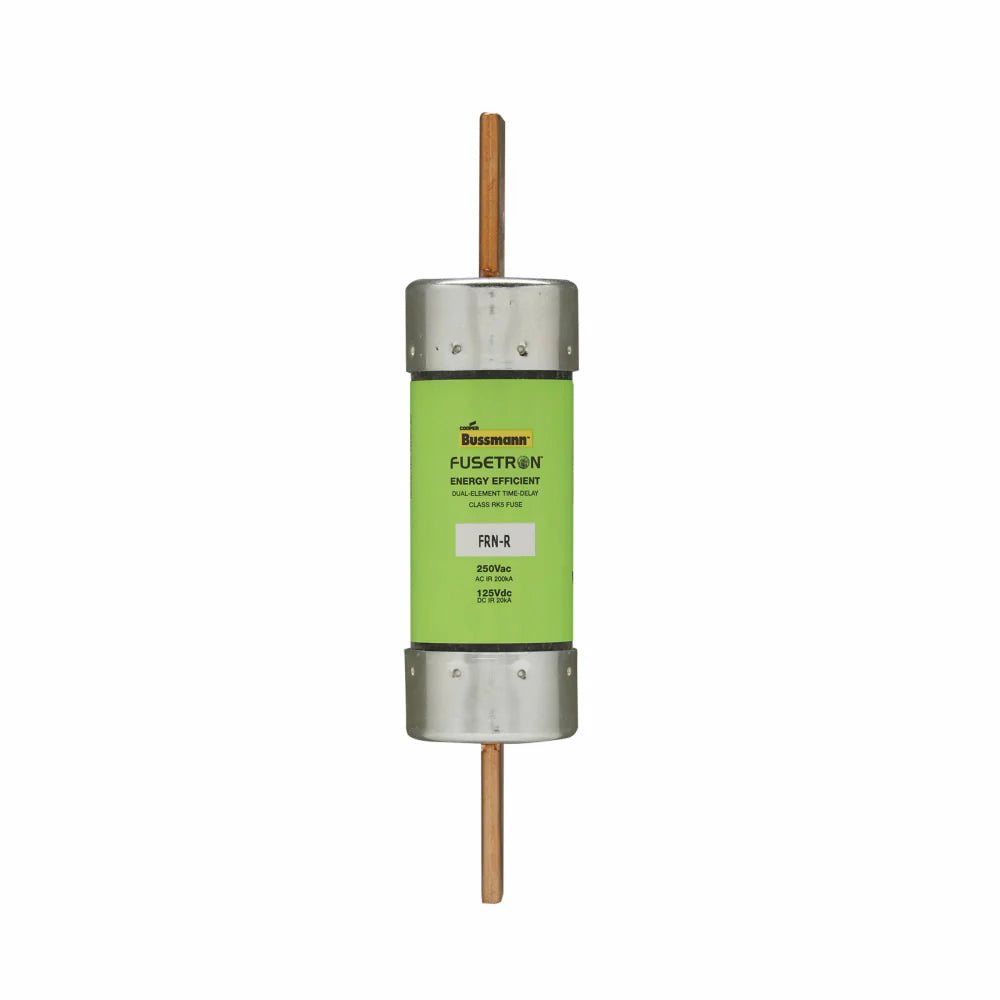

Eaton FRN-R-175 BUS 250V FUSE TR175R

Product Description

The Eaton FRN-R-175 is a Bussmann Fusetron time delay fuse designed to provide effective overload and short circuit protection. It features a current rating of one hundred seventy-five amperes and is rated for two hundred fifty volts alternating current or one hundred twenty-five volts direct current. This fuse is part of the RK5 class, which is known for its current limiting capabilities. Ideal for various applications including motors and machinery, it offers a reliable solution for protecting electrical systems.

• Current limiting and time delay capabilities
• Non-indicating and rejection type
• Compatible with combination starters and motor control centers

Product Highlights

The Eaton FRN-R-175 provides high performance in terms of overload protection for motors, making it suitable for diverse electrical systems.

Product Information

Standard Information

• Brand: Eaton
• MPN: FRN-R-175

Technical Specifications

• Amperage Rating: 175 A
• Voltage Rating: 250 VAC/125 VDC
• Body Size: 1.56 in Dia x 7.13 in L
• Body Type: Cartridge
• Class: RK5
• Element: Dual
• Response Time: 10 s at 500%
• Mounting Type: Holder
