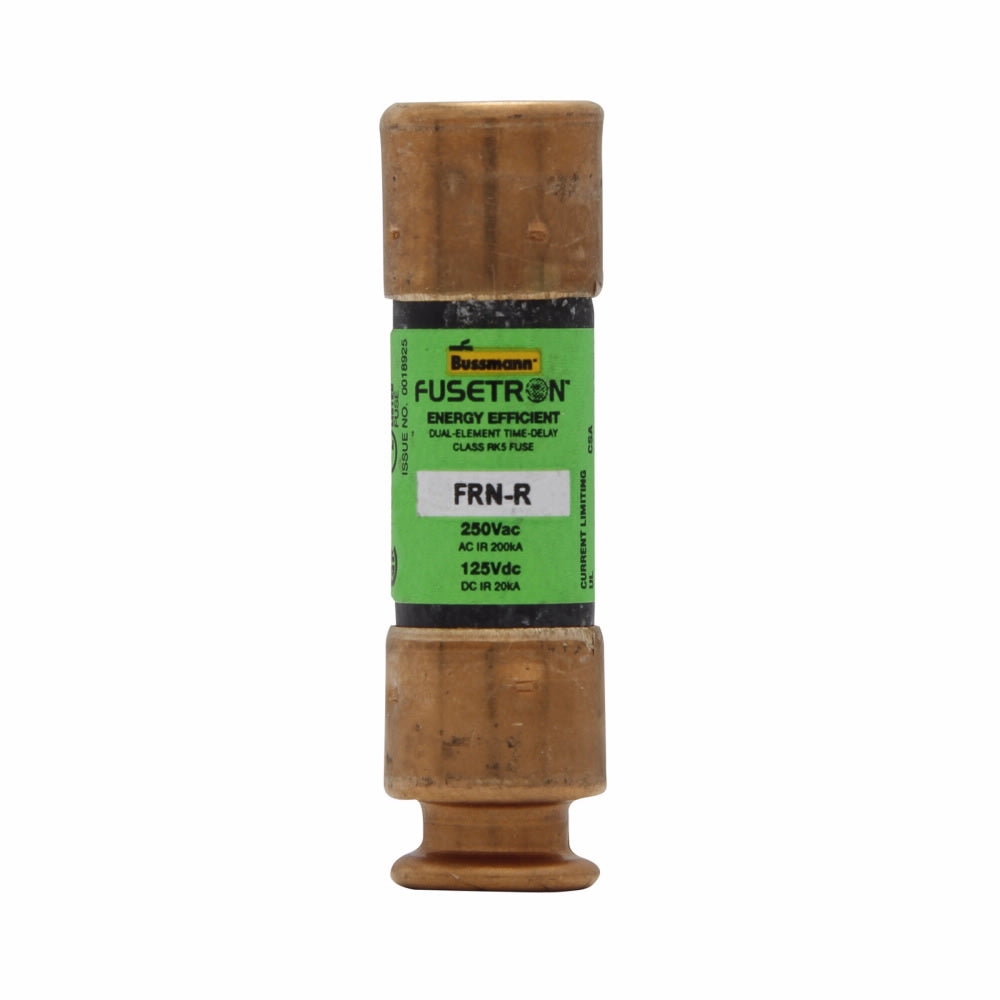

Eaton FRN-R-17-1/2 Current Limiting Time Delay Fuse 17.5 A 250 VAC/125 VDC 0.56 in Dia x 2 in L

Product Description

The EATON FRN-R-17-1/2 is a Bussmann Series Class RK5 current limiting time delay fuse. This dual-element, non-indicating fuse has a 17.5 A current rating and provides an interrupting rating of 200 kA at 250 VAC and 20 kA at 125 VDC. It is designed for robust overcurrent protection in various electrical systems, including industrial facilities and motor control centers.

• Features time-delay and dual-element construction for enhanced circuit protection.
• Provides comprehensive protection against motor overload, ground fault, and short circuits.
• Current limiting design with a non-indicating feature for straightforward operation.

Product Highlights

This Class RK5 fuse offers advanced protection with a dual-element, time-delay, and current-limiting design, suitable for industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FRN-R-17-1/2

Technical Specifications

• Amperage: 17.5 A
• Application: Industrial Facilities and Factories, Safety and Security Systems, Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications
• Body Type: Cylindrical
• Brand: EATON
• Certifications: CE Certified, CSA C22.2 File No.53787/248.12, UL 248-12 File No.E4273 Guide JDDZ
• Class: RK5
• Connection: Ferrule End x Ferrule End
• Element: Dual
• Indicating: Non-indicating
• Interrupt Rating: 200 kA at 250 VAC, 20 kA at 125 VDC
• Material: Fiberglass
• Mounting Type: Holder
• MPN: FRN-R-17-1/2
• Rejection: Rejection
• Response Time: 10 s at 500%
• Series: Bussmann FRN-R
• Sub-Brand: Bussmann
• Type: Current Limiting Time Delay Fuse
• Voltage Rating: 250 VAC/125 VDC
