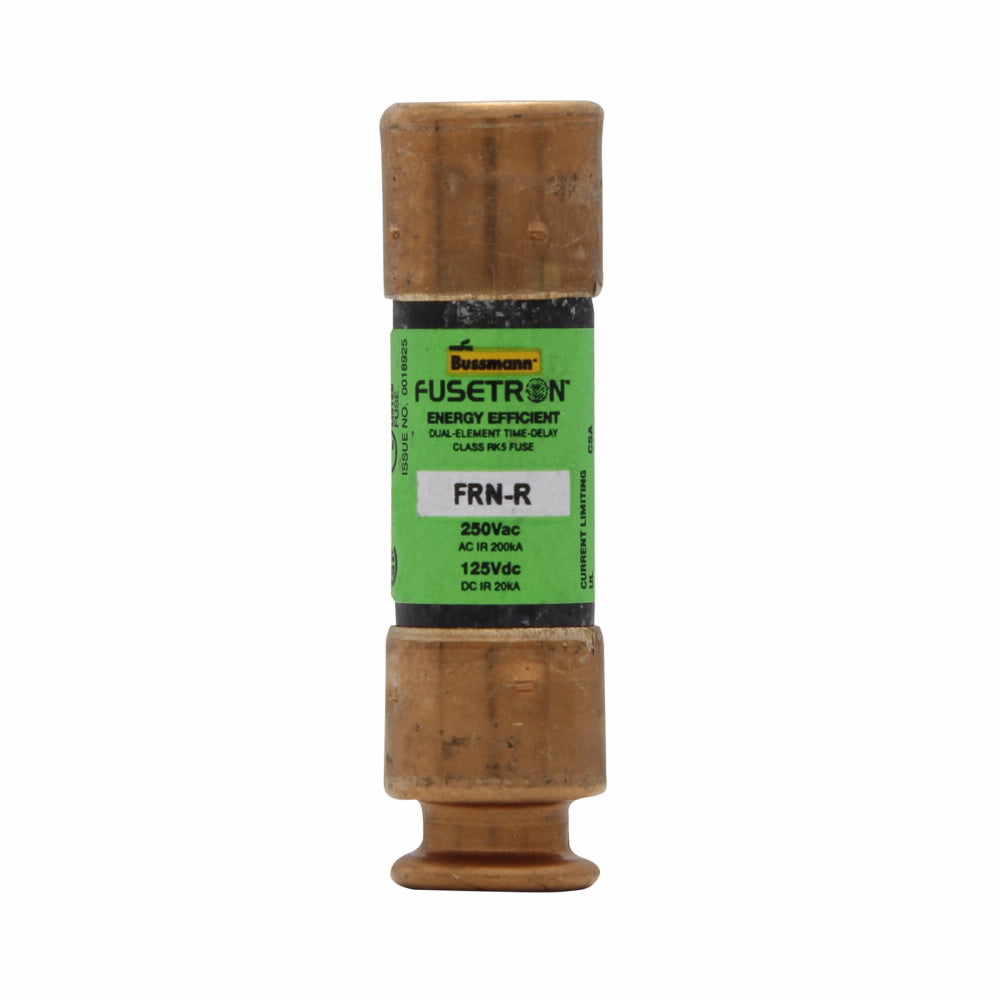

Eaton FRN-R-1-6/10 Bussmann Series FRN-R-1-6/10 Class RK5 Fusetron Dual Element Fuse

Product Description

Eaton Bussmann Series FRN-R-1-6/10 is a dual element fuse designed for motor and circuit protection. The fuse operates at 1.6 amperes and features a cylindrical body with ferrule ends. It offers time delay characteristics for handling temporary overload conditions. It is rated for 250 V AC and 125 V DC, providing comprehensive protection for electrical circuits.

• Class RK5 for motor protection
• Time delay of 10 seconds minimum at 500%
• Rated interrupt capacity of 20 kAIC at 125 V and 200 kAIC at 250 V

Product Highlights

This fuse provides effective protection for motor control centers and other electrical applications. It is designed with a rejection feature to enhance safety.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: FRN-R-1-6/10

Technical Specifications

• Amperage Rating: 1.6 A
• Voltage Rating: 250 VAC / 125 VDC
• Body Size: 0.56 in diameter x 2 in length
• Class: RK5
• Response Time: 10 s
• Terminal Type: Ferrule End
• Material: Fiberglass
• Application: Motor Control Centers, Power Panelboards
