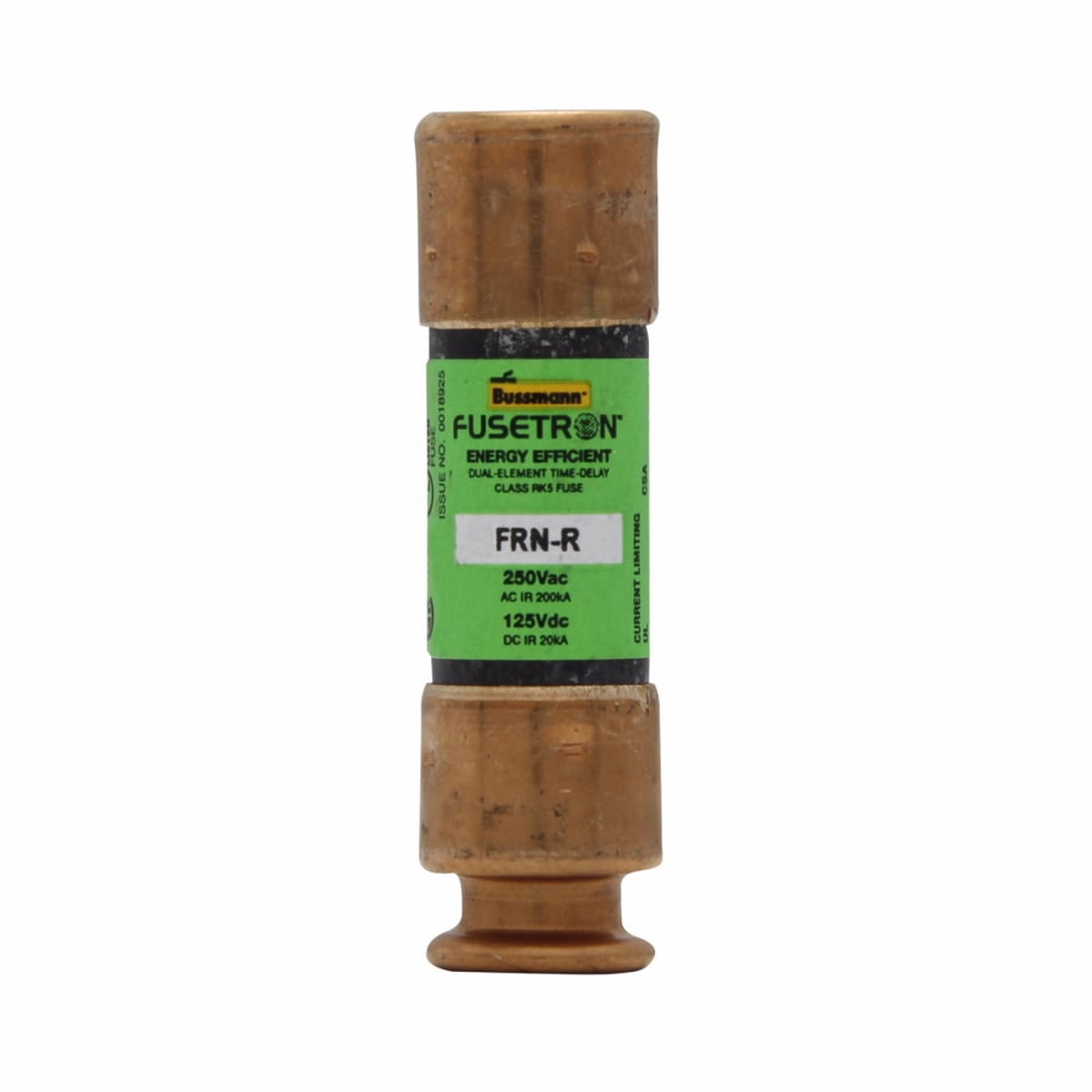

Eaton FRN-R-1-1/4 Fusetron Dual Element Fuse 1-1/4 amp 0.56 inch diameter 2 inch length

Product Description

The EATON FRN-R-1-1/4 is a Bussmann series Class RK5 Fusetron dual element fuse. This non-indicating, time-delay fuse provides current limiting protection for electrical systems. It features a 1-1/4 Amp (1.25 A) rating, with an interrupting rating of 200 kAIC at 250 VAC and 20 kAIC at 125 VDC. Designed for applications like motor control centers and machinery disconnects, it ensures circuit protection.

• Dual-element, time-delay design for robust circuit protection.
• Non-indicating fuse with a Class RK5 rating.
• Interrupting rating of 200 kAIC at 250 VAC and 20 kAIC at 125 VDC.

Product Highlights

The EATON FRN-R-1-1/4 fuse offers current limiting, dual-element, and time-delay capabilities for industrial electrical protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FRN-R-1-1/4
• Country of Origin: Mexico

Technical Specifications

• Fuse Type: Monitoring
• Brand: Eaton
• Fuse Class: RK5
• Elements: Dual
• Voltage Rating: 250 VAC / 125 VDC
• Amperage: 1-1/4 Amp (1.25 A)
• Certifications: CSA, UL, CE
• Sub Brand: Fusetron
• Response Time: 8 seconds at 500%
• Connection Type: Ferrule End x Ferrule End
• Interrupting Rating: 200 kAIC at 250 VAC, 20 kAIC at 125 VDC
• Series: FRN-R
• Indication Type: Non-indicating
• Body Type: Cylindrical
• Body Material: Fiberglass
• Mounting Type: Holder
• Applications: Industrial Facilities and Factories, Safety and Security Systems, Combination Starters, Machinery Disconnects, Motor Control Centers, Power Panelboard Applications
• Fuse Block Style: Rejection
• Compatible Fuse Block Series: HM600, R250
