Product Description

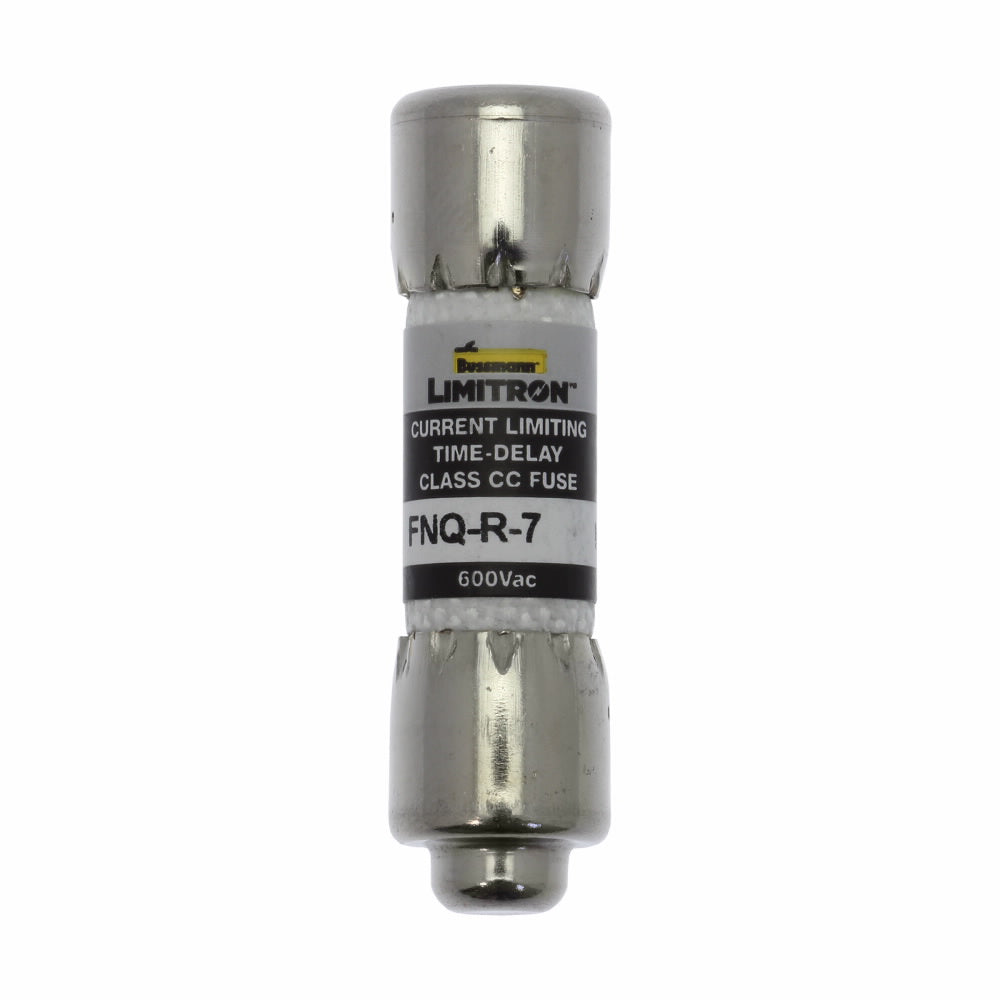

The Eaton FNQ-R-7 is a Bussmann CC-Tron Fuse designed for current limiting and time delay applications. It is rated for seven amps and operates at six hundred volts. This fuse features a cylindrical body type and is ideal for use with small control transformers among other applications.
- Time delay compatible with inrush characteristic of small control transformers
- 200 kA interrupt rating ensures high performance in all circuit locations
- Class CC rejection feature prevents improper fuse installation
Product Highlights
The FNQ-R-7 offers superior circuit protection with a 12-second response time at 200%. It is suitable for electrical systems requiring reliable performance and safety.
Product Information
Standard Information
-
Manufacturer: Eaton
-
UPC: 05171255825
Technical Specifications
-
Amperage Rating: 7 A
-
Voltage Rating: 600 V
-
Body Size: 13/32 in Dia x 1-1/2 in L
-
Body Type: Cylindrical
-
Response Time: 12 s at 200%
-
Material: Melamine Tube
-
Element: Dual
-
Mounting Type: Holder
