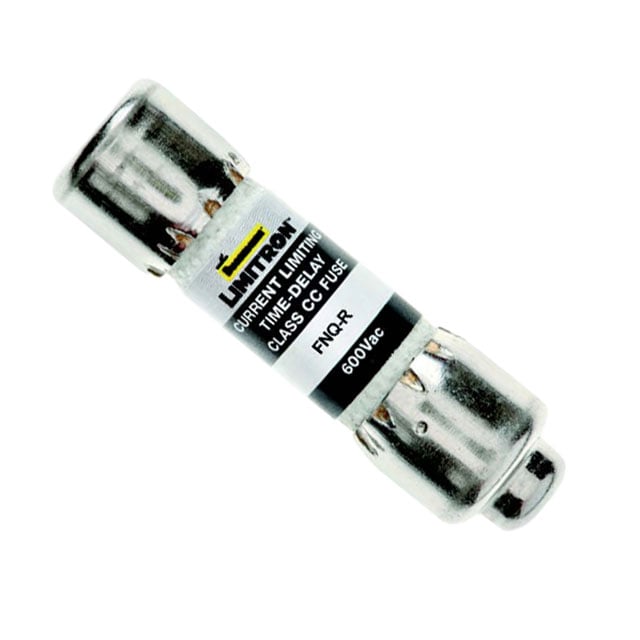

Eaton FNQ-R-5-6/10 Class CC Time-Delay Fuse 5.6 A (13/32 x 1-1/2)

Product Description

Eaton FNQ-R-5-6/10 is a Bussmann series Class CC time-delay (Limitron) fuse rated 5.6 A and 600 V for branch circuit protection. It is a dual-element current-limiting cartridge with ferrule end terminations, melamine tube construction, and a 200 kA interrupting rating. The fuse features a rejection-style body, approximately 12 seconds clearing at 200% overload, and is suitable for line protection, small control transformers, and industrial control applications.

• Class CC dual-element time-delay, current-limiting fuse rated 5.6 A, 600 V
• Interrupting rating 200 kAIC; response time 12 seconds at 200% for inrush tolerance
• Ferrule end x ferrule end cartridge, melamine tube, rejection-style, requires holder

Product Highlights

5.6 A Class CC time-delay fuse, 600 V, 200 kAIC, ferrule ends, 13/32" x 1-1/2" cartridge

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FNQ-R-5-6/10
• Country of Origin: China

Technical Specifications

• Brand: EATON
• Manufacturer Part Number: FNQ-R-5-6/10
• Series: Bussmann FNQ-R
• Fuse Class: Class CC
• Fuse Type: Time-delay (Limitron), dual-element, current-limiting
• Current Rating: 5.6 A
• Voltage Rating: 600 V AC
• Interrupting Rating: 200 kAIC at 600 V AC
• Response Time: 12 sec at 200% (time-delay)
• End Type / Connection: Ferrule end x ferrule end
• Body Material: Melamine tube
• Body Size / Dimensions: 13/32 in diameter x 1-1/2 in length (10 mm x 38 mm)
• Package / Case: 5AG (10 mm x 38 mm)
• Mounting Type: Requires holder / holder mount
• Rejection Style: Rejection-type (Class CC)
• Element: Dual-element
• Body Type: Cylindrical cartridge
• Applications: Line protection, small control transformers, industrial control, branch circuits
• Approvals / Compliance: CE; CSA; UL; RoHS compliant
• Package Quantity: 1
