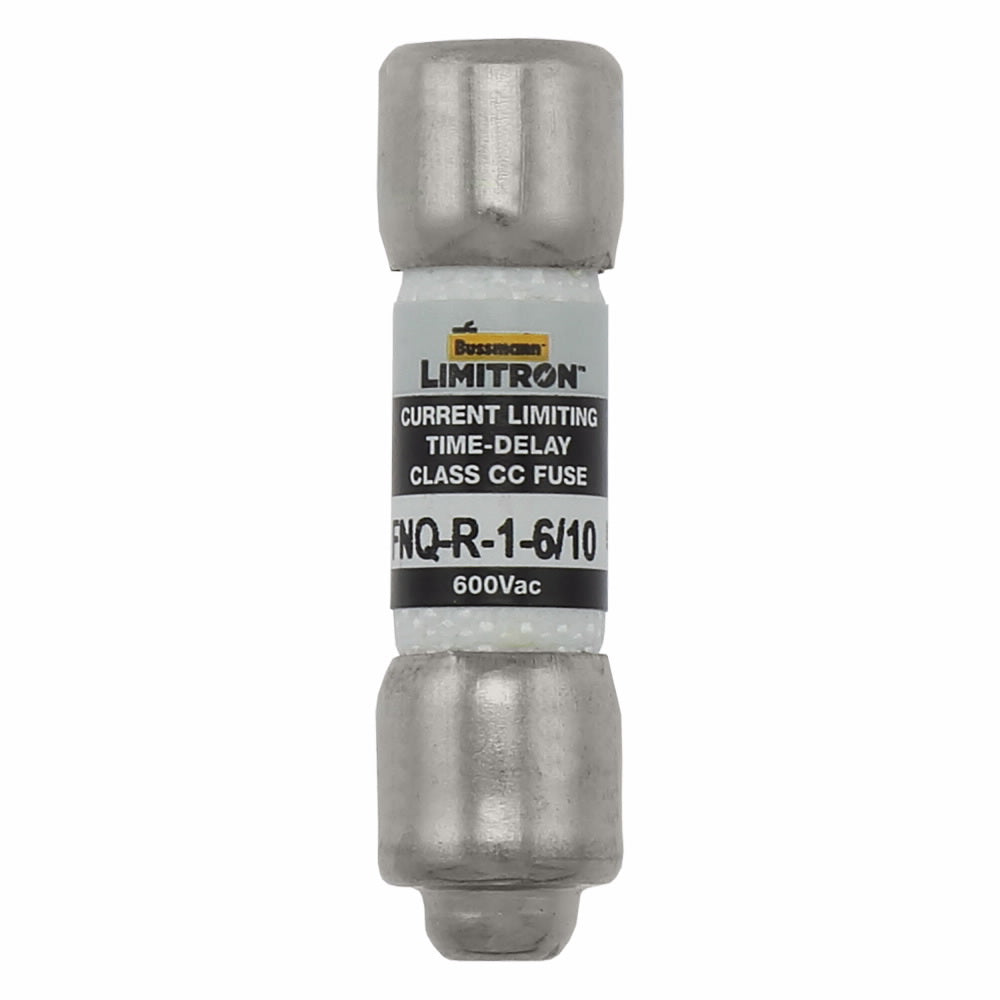

Eaton FNQ-R-1-6/10 Bussmann Series Current Limiting Time Delay Fuse 600 V

Product Description

The Eaton FNQ-R-1-6/10 fuse is a current limiting, non-indicating fuse designed for protecting electrical circuits. It features a cylindrical body and is rated at 1.6 amps with a voltage capacity of 600 volts. This fuse offers a time delay of twelve seconds at two hundred percent of its rated current. The product is constructed from melamine and has a ferrule end for easy installation.

• Time delay feature suitable for small control transformers
• High interrupt rating of 200 kA for enhanced circuit protection
• Rejection capability prevents incorrect fuse installations with proper fuse block

Product Highlights

A reliable fuse for circuit protection in various applications.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Type: Current Limiting Time Delay
• Class: CC
• Voltage Rating: 600 V
• Amperage Rating: 1.6 A
• Body Size: 13/32 in diameter x 1-1/2 in length
• Material: Melamine
• Response Time: 12 seconds at 200%
• Interrupt Rating: 200 kAIC
