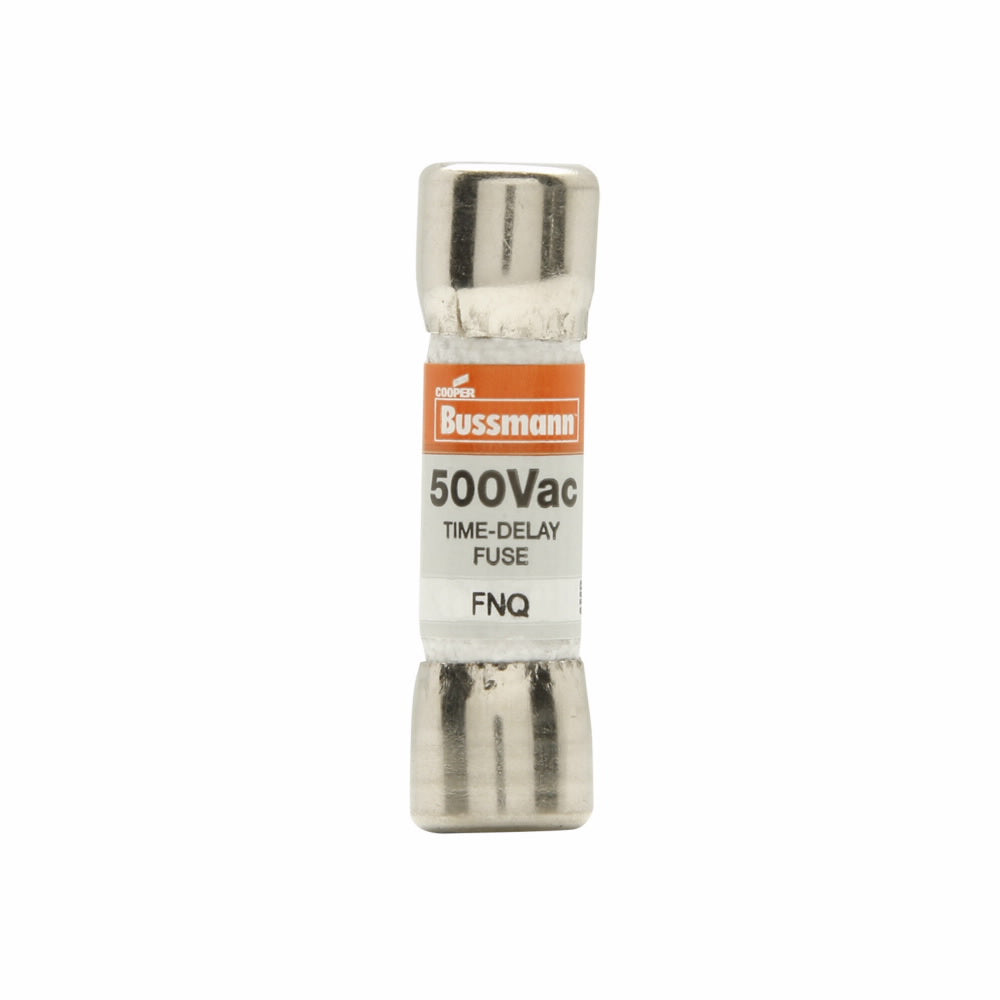

Eaton FNQ-6/10 Bussmann FNQ 6/10 Amp 500 VAC midget time-delay fuse (13/32 in x 1-1/2 in)

Product Description

The Eaton FNQ-6/10 is a Bussmann series time-delay midget fuse rated 0.6 A at 500 VAC for protection of motor control transformers and circuits with inrush currents. It features ferrule end terminations and nickel-plated bronze endcaps with a 10 kAIC interrupting rating at 500 VAC. The non-indicating, supplemental-class design fits standard midget fuse holders and is used in control transformer, lighting, and meter circuit protection.

• Time-delay midget fuse designed for motor control transformers and circuits with inrush currents
• Rated 0.6 A at 500 VAC with 10 kAIC interrupting rating
• Ferrule end x ferrule end termination with nickel-plated bronze endcaps; non-indicating

Product Highlights

Time-delay supplemental midget fuse, 0.6 A at 500 VAC, 10 kAIC interrupting rating, ferrule end terminations, UL 248-14/CE/CSA listed

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FNQ-6/10

Technical Specifications

• Manufacturer Part Number: FNQ-6/10
• Brand: Eaton
• Series: Bussmann FNQ
• Type: Time-delay midget fuse
• Class: Supplemental
• Current Rating: 0.6 A (6/10 Amp)
• Voltage Rating: 500 VAC
• Interrupting Rating: 10 kAIC at 500 VAC
• Termination: Ferrule end x ferrule end
• Endcap Material: Nickel-plated bronze
• Indicating: Non-indicating
• Size: 13/32 in diameter x 1-1/2 in length
• Body Type: Cartridge (midget)
• Typical Applications: Control transformer primary protection; lighting circuit protection; meter circuits; motor control transformers
• Standards/Approvals: UL 248-14; CE; CSA
• Mounting Type: Holder (midget fuse holder compatible)
• Element: Dual element
• UPC: 05171278600
• 12-Digit UPC: 051712786003
• Material: Bronze endcaps / fiberglass body (nickel-plated bronze endcaps)
