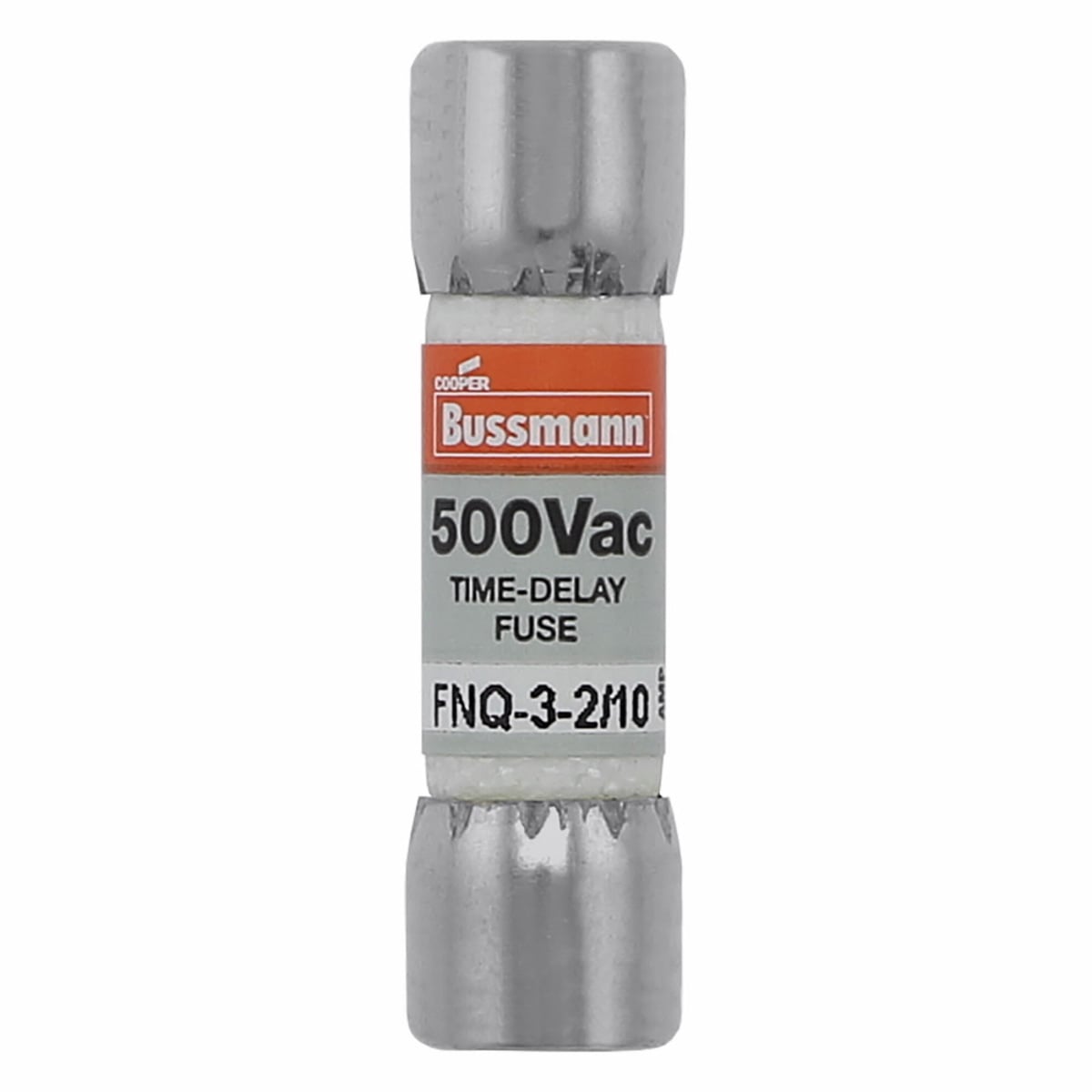

Eaton FNQ-3-2/10 Midget Time Delay Fuse 500 Vac (13/32 In Dia x 1-1/2 In Length) EatonFNQ3210

Product Description

Eaton FNQ-3-2/10 is a Bussmann midget time-delay fuse rated 3.2 A at 500 VAC. It provides supplemental overcurrent protection with a 10 kA interrupting rating, ferrule end terminations, and nickel-plated bronze endcaps. The dual-element, slow-blow construction accommodates inrush currents and is intended for motor control transformer primaries, lighting circuits, meter circuits, and similar applications in a 13/32 in by 1-1/2 in midget cartridge.

• Time-delay (dual/slow-blow) midget fuse rated 3.2 A for circuits with inrush currents
• 500 VAC voltage rating with 10 kA interrupting capacity and ferrule end x ferrule end termination
• Non-indicating construction with nickel-plated bronze endcaps; cartridge size 13/32 in dia x 1-1/2 in length

Product Highlights

Midget time-delay fuse, 3.2 A at 500 VAC, 10 kAIC interrupting rating, ferrule terminations, nickel-plated bronze endcaps

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FNQ-3-2/10

Technical Specifications

• Brand: Eaton
• MPN: FNQ-3-2/10
• Series: Bussmann FNQ
• Product Name: Midget time-delay fuse
• Fuse Type: Time-delay (slow-blow)
• Rated Current: 3.2 A
• Voltage Rating: 500 VAC
• Interrupting Rating: 10 kAIC at 500 VAC
• End Termination: Ferrule end x ferrule end
• Endcap Material: Nickel-plated bronze
• Material: Bronze (nickel-plated bronze endcap)
• Body Size: 13/32 in diameter x 1-1/2 in length
• Body Type: Cartridge
• Element: Dual element
• Indicating: Non-indicating
• Class: Supplemental
• Typical Applications: Motor control transformer primaries; circuits with in-rush currents; lighting circuit protection; meter circuits
• Mounting Type: Holder
• Terminal Type: Ferrule
• Rejection/Non-Rejection: Non-rejection
• Certifications: UL 248-14; CSA C22.2 No. 248.14; CE; RoHS compliant
• GTIN: 00051712786058
• UPC: 051712786058
• Reference ID: EATONFNQ3210
