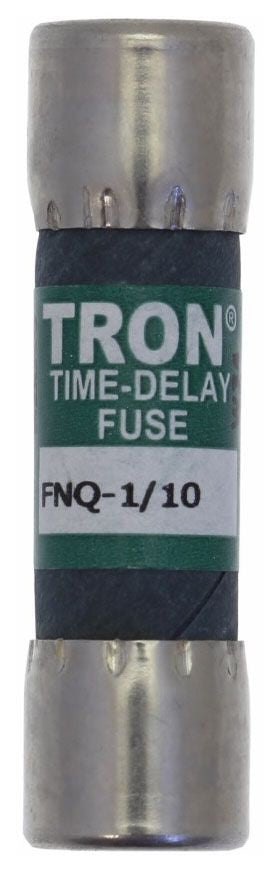

Eaton FNQ-1/10 Midget Time Delay Fuse 0.1A 500V

Product Description

The EATON FNQ-1/10 is a midget time delay fuse rated at 0.1 amps and 500 volts AC. It belongs to the FNQ series of current-limiting midget fuses designed for use in control circuits, motor control centers, and other low-amperage branch or supplemental protection applications. The time delay characteristic allows the fuse to absorb brief inrush or startup currents without nuisance opening, while still responding quickly to sustained overloads or fault conditions. Licensed electricians and controls technicians typically install this fuse during panel assembly, machine wiring, or field service on HVAC control panels and industrial control equipment.

The FNQ-1/10 fits standard 13/32-inch by 1-1/2-inch midget fuse holders and fusible disconnect blocks commonly found in commercial HVAC equipment, motor control panels, and light industrial control circuits. Its 500-volt rating suits both 120-volt and 277-volt single-phase control wiring found in residential and commercial systems. The 0.1-amp rating makes it appropriate for very low-current sensing or signal circuits requiring supplemental overcurrent protection.

Key Features

• 0.1 amp (1/10 A) rating for very low-current circuit protection
• 500 volt AC rating suitable for standard commercial control voltages
• Time delay design tolerates brief inrush without nuisance opening
• Midget form factor fits standard 13/32 inch by 1-1/2 inch fuse holders
• Current-limiting construction for supplemental overcurrent protection

Compatibility

Designed as an OEM-style replacement for midget time delay fuses in standard 13/32 inch by 1-1/2 inch fusible holders used in HVAC control panels, motor control centers, and industrial control equipment.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Always de-energize and lock out the circuit before removing or replacing any fuse. Verify the replacement fuse amp rating and voltage rating match the circuit requirements exactly before reinstalling. Do not substitute a higher-amperage fuse or a non-time-delay type without confirming circuit and equipment specifications.

Technical Specifications

• Amperage Rating: 0.1 amp (1/10 A)
• Voltage Rating: 500 volts AC
• Fuse Type: Midget Time Delay
• Series: FNQ
• UPC: 05171278616

Standard Information

• Brand: EATON
• Manufacturer Part Number: FNQ-1/10
