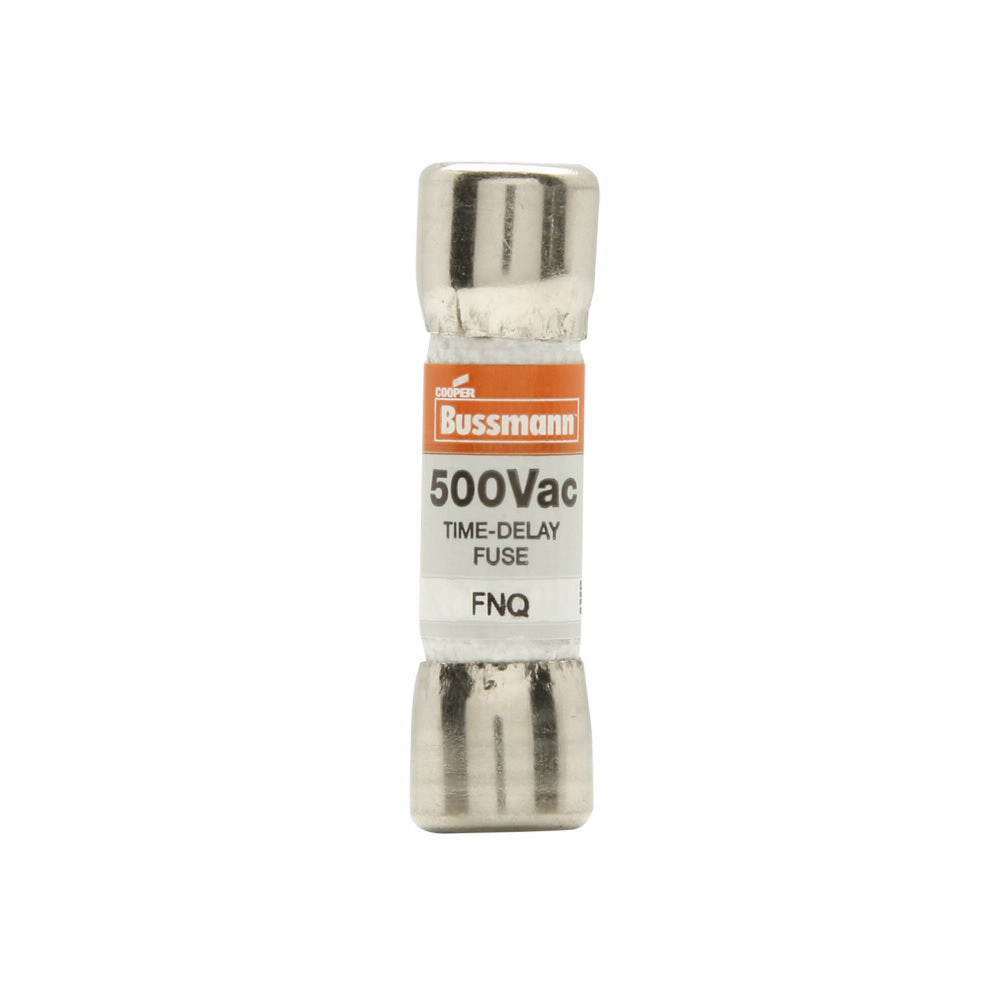

Eaton FNQ-1-1/4 Bussmann Series FNQ 1-1/4 Amp 500 VAC Midget Time Delay Fuse

Product Description

The Eaton FNQ-1-1/4 is a Bussmann series midget time delay fuse. It operates at one point two five amps and five hundred VAC. This product is rated for ten thousand amperes interrupting current. It features nickel-plated bronze end caps for improved conductivity.

• Time delay functionality
• Ideal for motor control transformers and circuits with in-rush currents
• Standard and supplemental class fuse

Product Highlights

The FNQ-1-1/4 fuse is suitable for lighting circuit protection and meter circuits. It is designed to handle applications requiring a time delay to accommodate in-rush currents. It has a ferrule end x ferrule end connection.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Amperage Rating: 1.25 A
• Voltage Rating: 500 VAC
• Interrupt Rating: 10 kAIC
• Body Size: 13/32 in Diameter x 1-1/2 in Length
• Class: Supplemental
• Material: Bronze/Fiberglass
• Series: FNQ
• Terminal Type: Ferrule
