Eaton FNM-3/10 BUS 250V FUSE TRM 3/10 (1)

Product Description

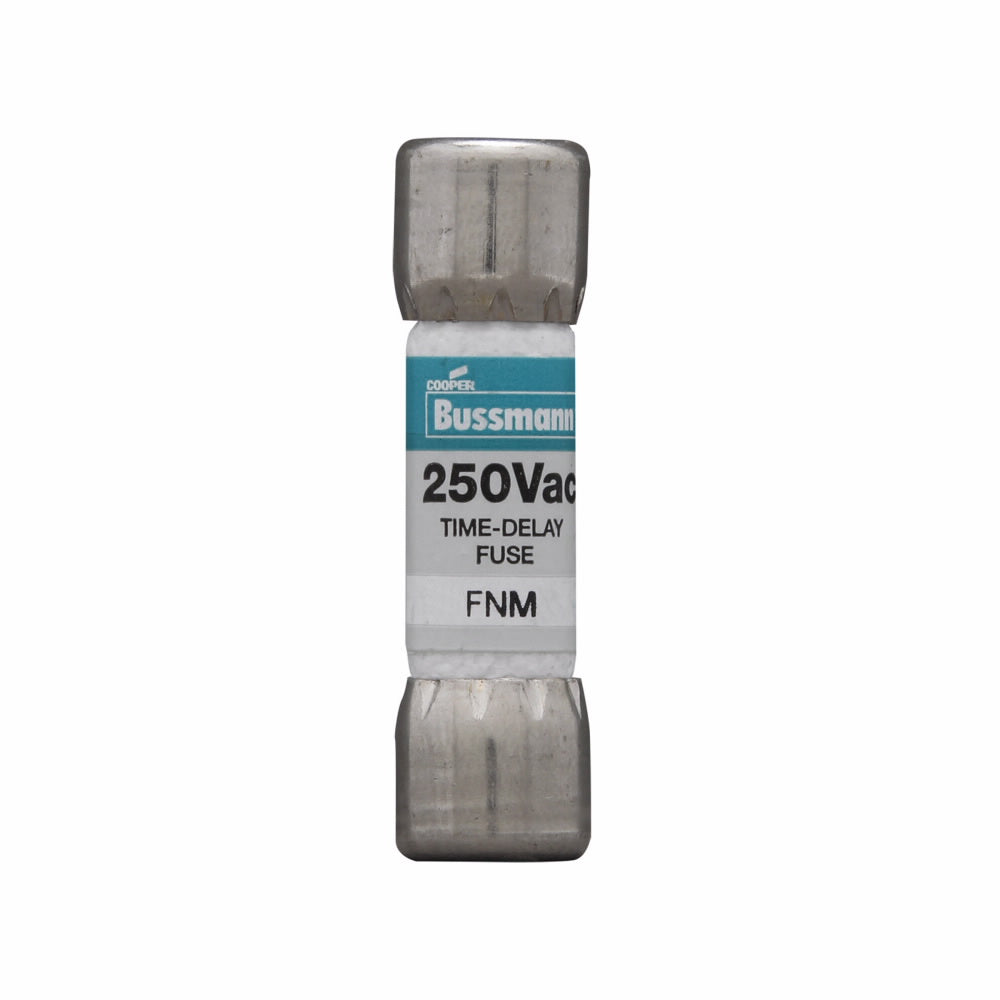

The Eaton FNM-3/10 is a Bussmann Fusetron Midget Fuse designed for time delay applications. This fuse operates at three-tenths amp with a voltage rating of two hundred fifty AC volts. It has a cylindrical body type and is made from bronze and fiberglass materials. The fuse is non-indicating and suitable for general purpose circuits. It features a ferrule terminal and is designed to fit holder mounts.

• Amperage Rating: 3/10 A
• Body Size: 13/32 inches diameter by 1-1/2 inches length
• Voltage Rating: 250 VAC

Product Highlights

Use the Eaton FNM-3/10 for reliable time delay protection in electrical circuits.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: FNM-3/10

Technical Specifications

• Amperage Rating: 3/10 A
• Body Size: 13/32 inches diameter by 1-1/2 inches length
• Class: Supplemental
• Element: Dual
• Indicating: Non-Indicating
• Material: Bronze/Fiberglass
• Mounting Type: Holder
• Rejection: Non-Rejection
• Series: FNM
• Standards/Approvals: CE Certified, CSA 1422-01, RoHS Compliant, UL 248-14
• Terminal Type: Ferrule
• Type: Time Delay
• Voltage Rating: 250 VAC
