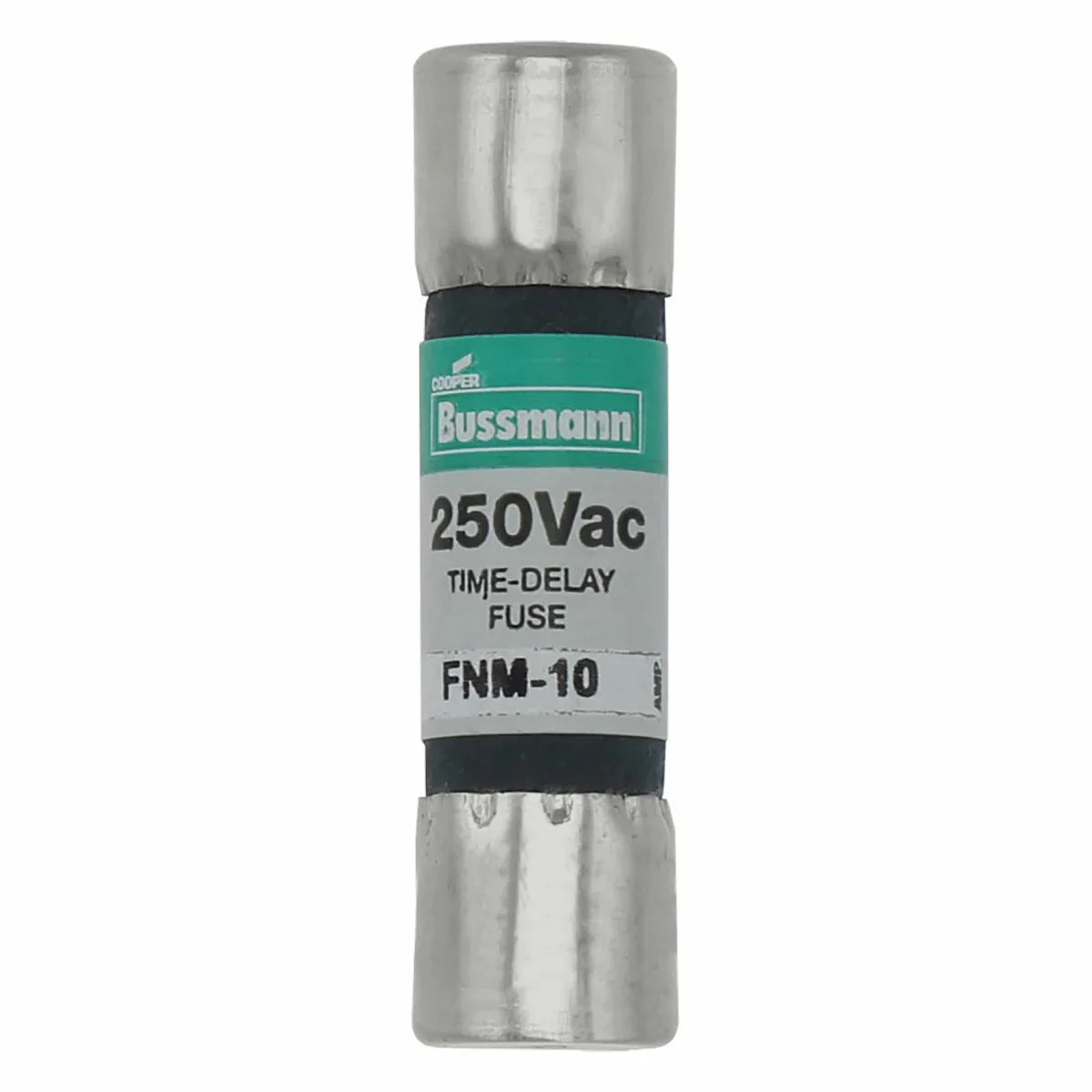

Eaton FNM-10 Time-delay Midget Fuse 10 A 250 VAC

Product Description

The Eaton FNM-10 is a time-delay midget fuse designed for use in low voltage applications. This fuse has a rating of ten amps and is suitable for both 250 volts alternating current and 125 volts direct current. Its connections are made using ferrule ends on both sides. The nickel-plated bronze endcap enhances durability and performance.

• Time-delay function to protect against temporary overloads.
• Rated for 200 A at 250 VAC and 10,000 A at 125 VAC interrupt.
• Meets RoHS compliance and CE marking standards.

Product Highlights

This fuse is ideal for use in industrial facilities and factories. It suits applications involving safety and security systems.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Eaton Bussmann

Technical Specifications

• Catalog Number: FNM-10
• Voltage Rating: 250 VAC
• Amperage Rating: 10 A

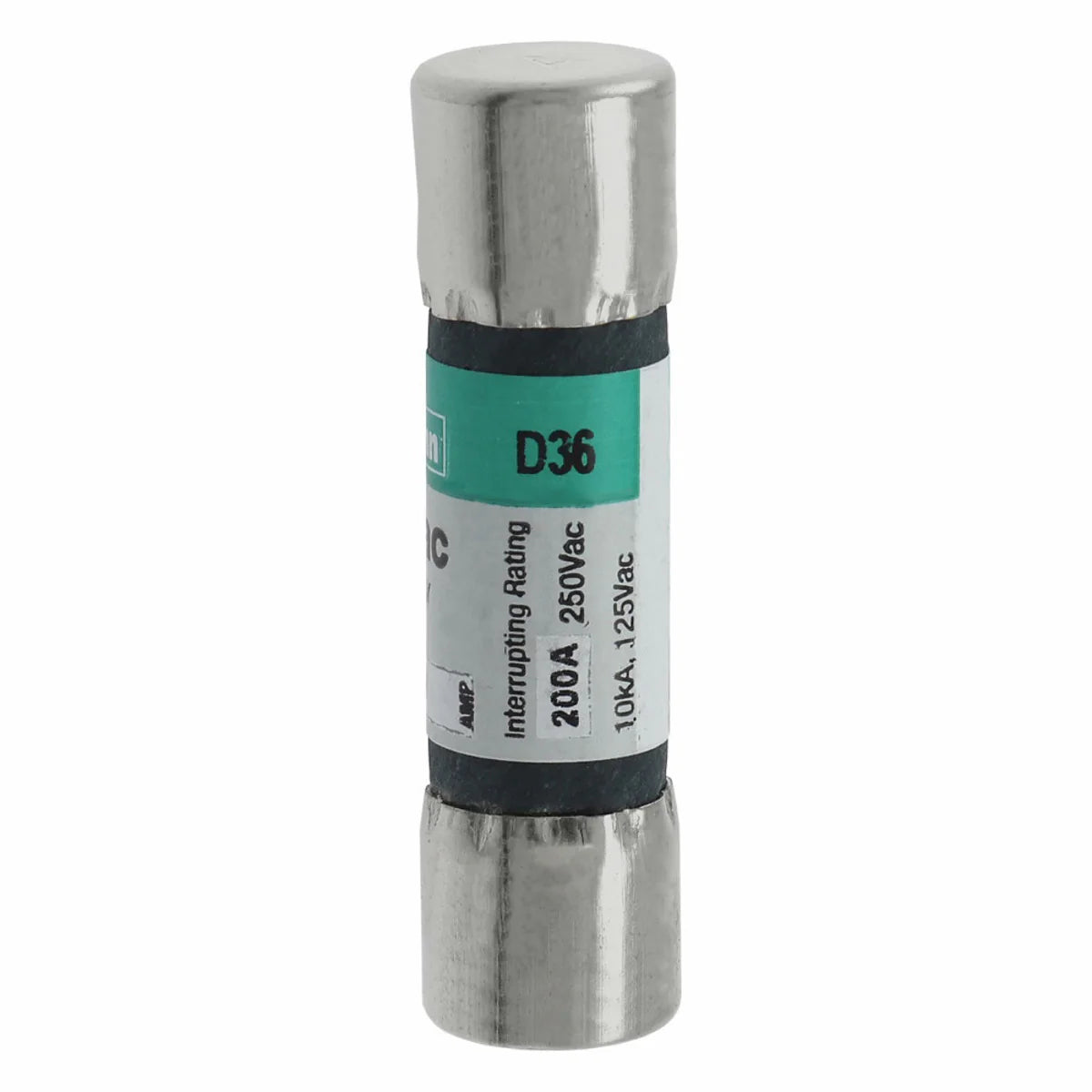

• Interrupt Rating: 200 A at 250 VAC, 10,000 A at 125 VAC
• Body Size: 13/32 inches Diameter x 1-1/2 inches Length
• Material: Nickel-plated bronze endcap
• Connection Type: Ferrule End x Ferrule End
• Country of Origin: Mexico
