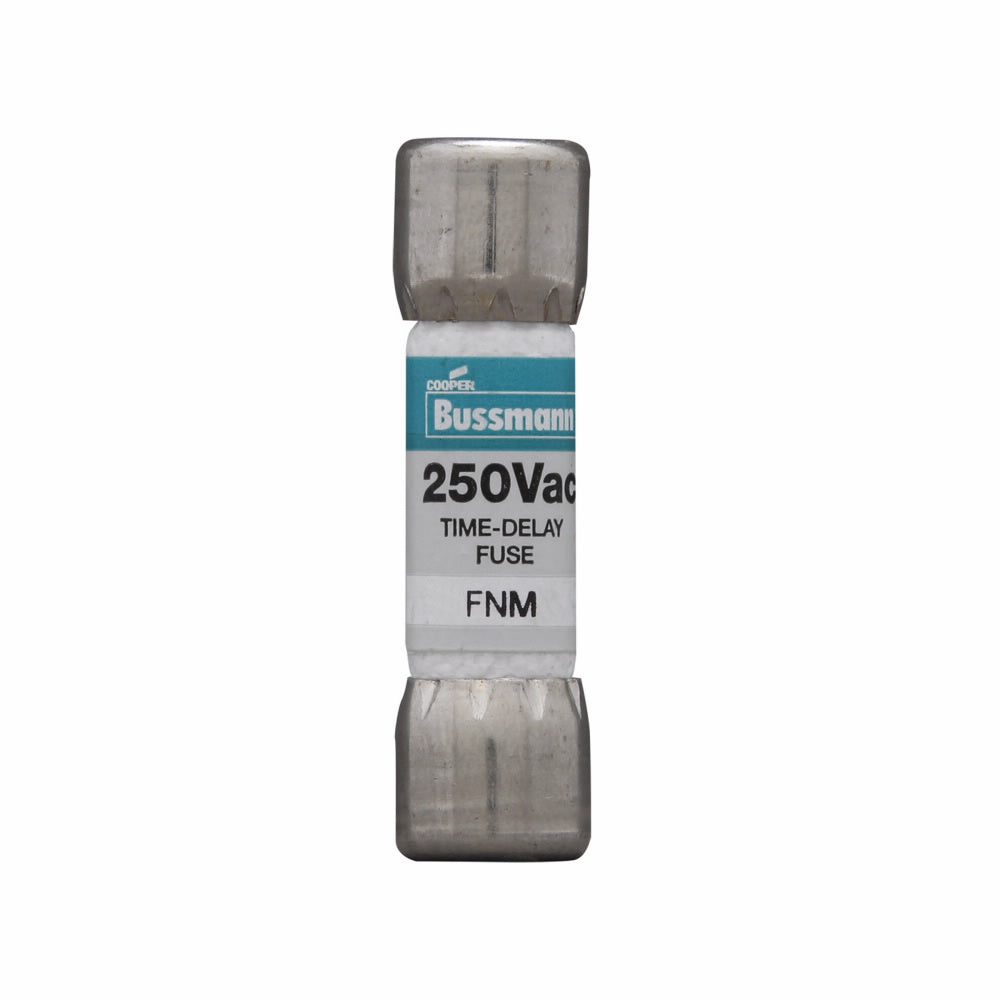

Eaton FNM-1/10 Time-Delay Supplemental Midget Fuse 0.1 A (13/32 x 1-1/2 in)

Product Description

Eaton FNM-1/10 is a time-delay supplemental/midget fuse rated 0.1 A at 250 VAC. It uses a dual-element (slow-blow) construction in a melamine tube with ferrule end-to-ferrule end connections and nickel-plated bronze endcaps. Interrupting ratings are 35 AIC at 250 VAC and 10 kAIC at 125 VAC. The fuse is non-indicating and measures 13/32 inch diameter by 1-1/2 inch length for holder mounting in midget applications.

• Time-delay dual-element (slow-blow) construction for supplemental protection
• Rated 0.1 A, 250 VAC; interrupting rating 35 AIC at 250 VAC and 10 kAIC at 125 VAC
• Melamine tube 13/32 in x 1-1/2 in with ferrule end-to-end terminals and nickel-plated bronze endcaps

Product Highlights

Intended for supplemental/midget protection in general-purpose circuits, lighting and meter circuits, and applications with high inrush currents; non-indicating, holder-mount fuse.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FNM-1/10
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton (Bussmann)
• MPN: FNM-1/10
• Series: FNM
• Type: Time-delay supplemental / midget fuse
• Amperage Rating: 0.1 A (1/10 A)
• Voltage Rating: 250 VAC
• Interrupting Rating: 35 AIC at 250 VAC; 10 kAIC at 125 VAC
• Element: Dual (dual-element)
• Indicating: Non-indicating
• End Type: Ferrule end x ferrule end
• Terminal Type: Ferrule
• Tube Material: Melamine
• Endcap Material: Nickel-plated bronze
• Dimensions (inch): 13/32 in diameter x 1-1/2 in length
• Diameter (metric): 10.3 mm
• Mounting Type: Holder
• Body Type: Cylindrical / midget
• Class: Supplemental
• Applications: General purpose circuits; lighting circuit protection; meter circuits; circuits with high inrush currents (motor/transformer loads)
• Certifications: UL 248-14; CSA; CE; RoHS compliant
• Country Of Origin: Mexico
