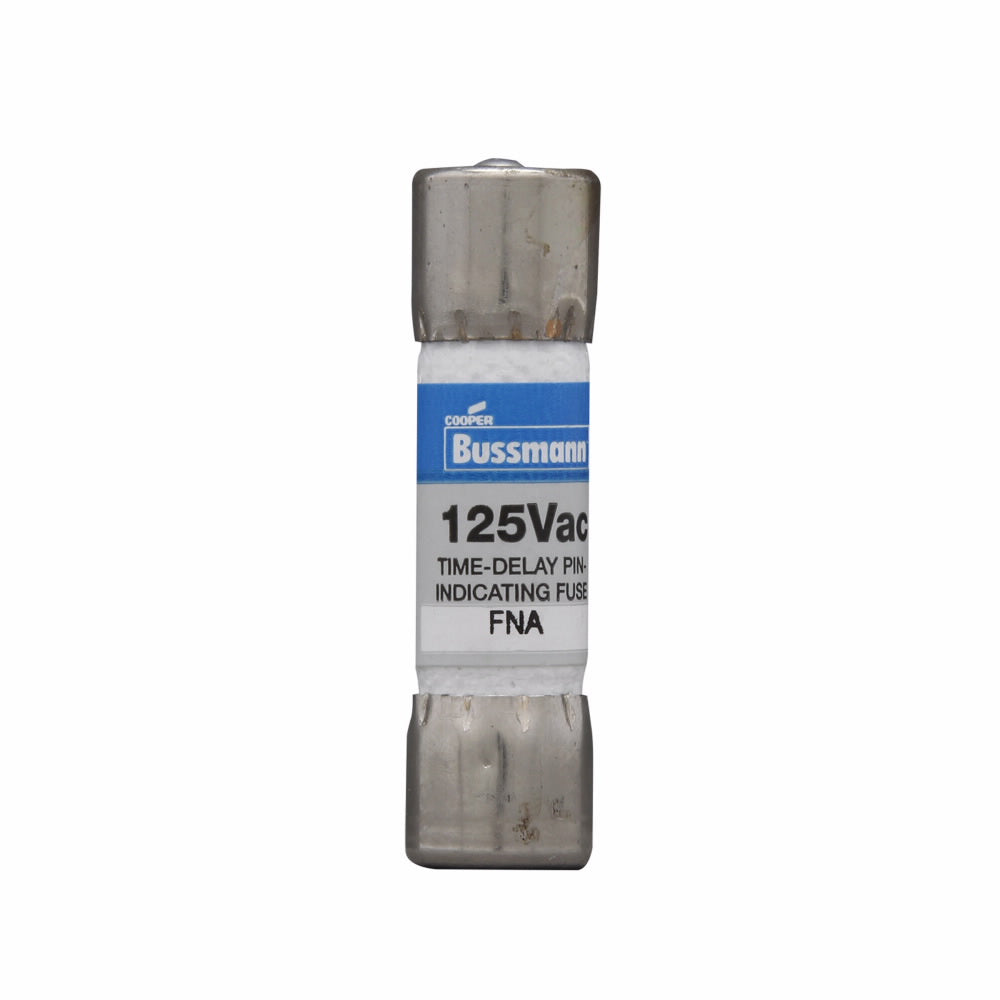

Eaton FNA-8 BUS 125V IND FUSE

Product Description

The Eaton FNA-8 is a Bussmann Midget Fuse designed for use in electrical systems. This pin indicating time delay fuse features an amperage rating of eight amps and operates at a voltage of one hundred twenty-five volts AC. With a classification as a supplemental fuse, it provides reliable circuit protection for various applications.

• Visual indication of open fuse condition
• Time delay performance for control transformers
• Silver plated pin for reliable electrical signal

Product Highlights

This fuse is suitable for power electronic circuits, including high in-rush current applications and safety systems.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171271363

Technical Specifications

• Amperage Rating: 8 A
• Voltage Rating: 125 VAC
• Body Size: 13/32 in Dia x 1-1/2 in L
• Body Type: Cartridge
• Element: Dual
• Material: Fiberglass
• Mounting Type: Holder
• Standards/Approvals: CE Certified, CSA 1422-01, RoHS Compliant, UL File No. E19180
• Rejection Non Rejection: Non-Rejection
• Indicating Non Indicating: Indicating
• Series: FNA
• Application: Power Electronic Circuits with High In-Rush Current Applications, Safety and Security Systems
