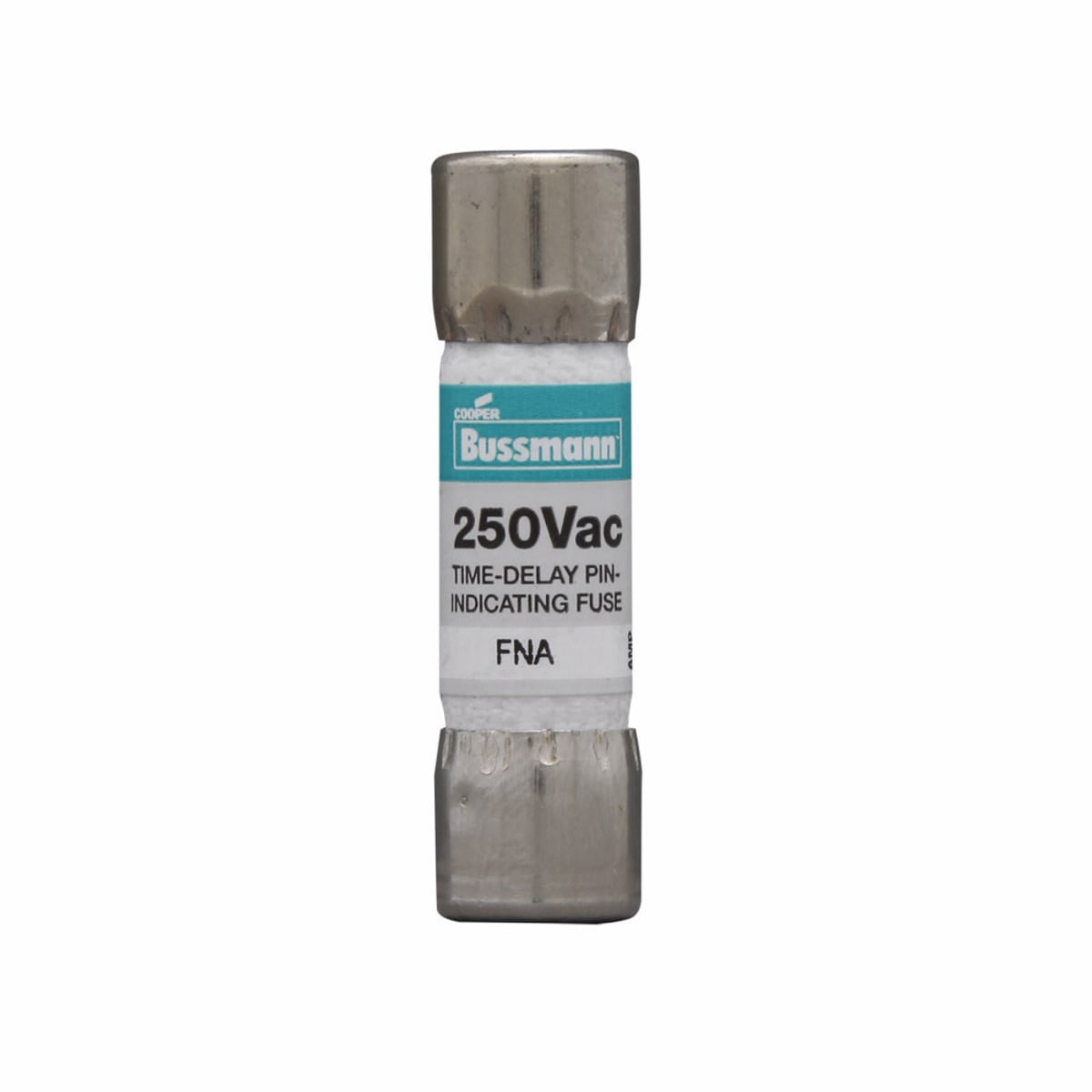

Eaton FNA-2 Bussmann FNA time-delay fuse 2 A (13/32 in x 1-1/2 in) FNA2

Product Description

The Eaton FNA-2 is a Bussmann series time-delay (dual-element) fuse rated 2 A and 250 V for inductive load and electronic circuits. It features ferrule end-to-end termination and a silver-plated pin and is non-indicating. The fuse provides interrupting capacity of 10 kAIC at 125 VAC and 200 kAIC at 250 VAC and measures 13/32 in diameter by 1-1/2 in length for cartridge fuseholders. Typical applications include control transformers, relays, and power electronic circuits with high inrush current.

• Time-delay, dual-element construction; 2 A amperage rating for inductive and electronic circuits
• Voltage rating 250 V with interrupting ratings: 10 kAIC at 125 VAC and 200 kAIC at 250 VAC
• Ferrule end-to-end termination, silver-plated pin; cartridge size 13/32 in diameter x 1-1/2 in length

Product Highlights

Dual-element time-delay 2 A fuse with ferrule terminations and high interrupting capacity for inductive and electronic circuits.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FNA-2

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: FNA-2
• Series: Bussmann FNA
• Type: Time-delay (dual-element) fuse
• Application: Inductive load circuits; Electronic circuits; power electronic circuits with high inrush current
• Amperage Rating: 2 A
• Voltage Rating: 250 V
• Interrupting Rating: 10 kAIC at 125 VAC; 200 kAIC at 250 VAC
• Indicating: Non-indicating
• Configuration: Dual element
• End Termination: Ferrule end x ferrule end
• Terminal Type: Ferrule
• Pin Plating: Silver-plated
• Body Type: Cartridge
• Body Size / Dimensions: 13/32 in diameter x 1-1/2 in length (0.40625 x 1.5 x 0.40625 in)
• Material: Fiberglass body; silver-plated pin
• Mounting Type: Holder / cartridge fuseholder
• Class: Supplemental
• Standards / Approvals: UL; CSA; CE; RoHS compliant
• Alternate MPN: FNA2
