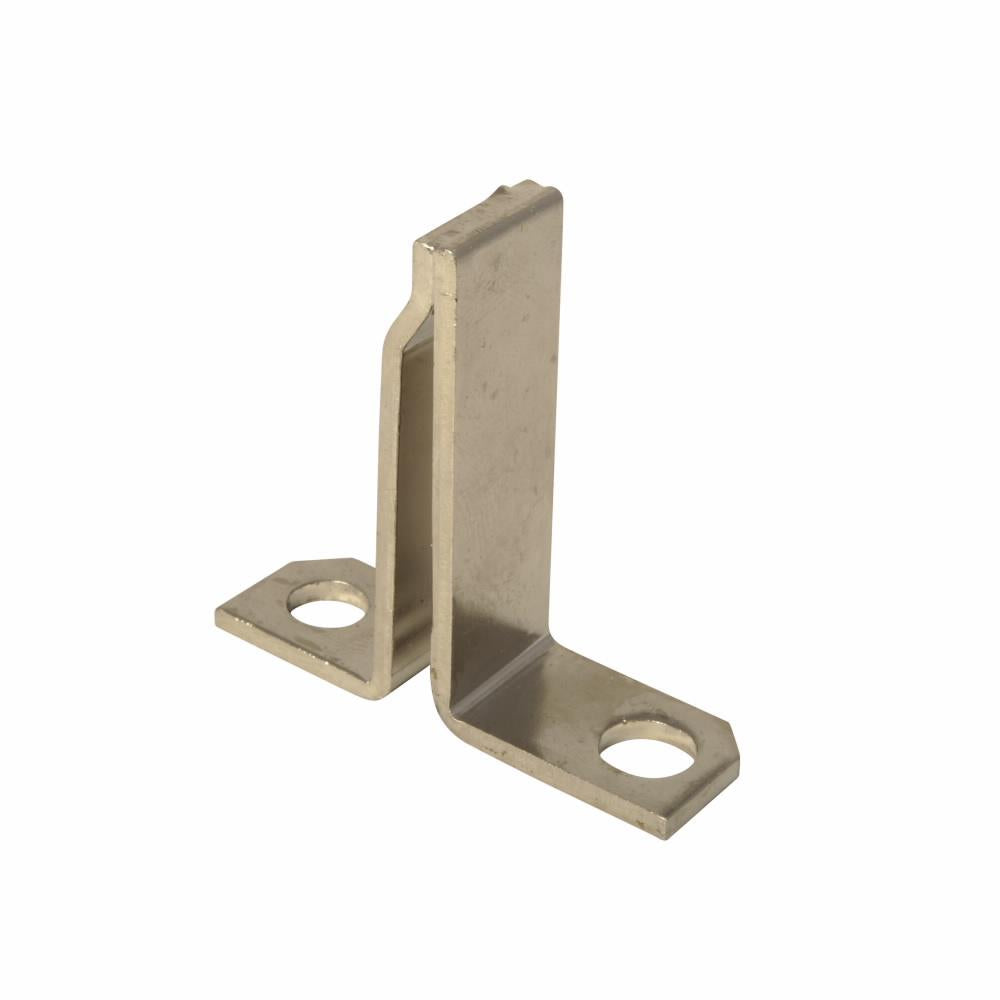

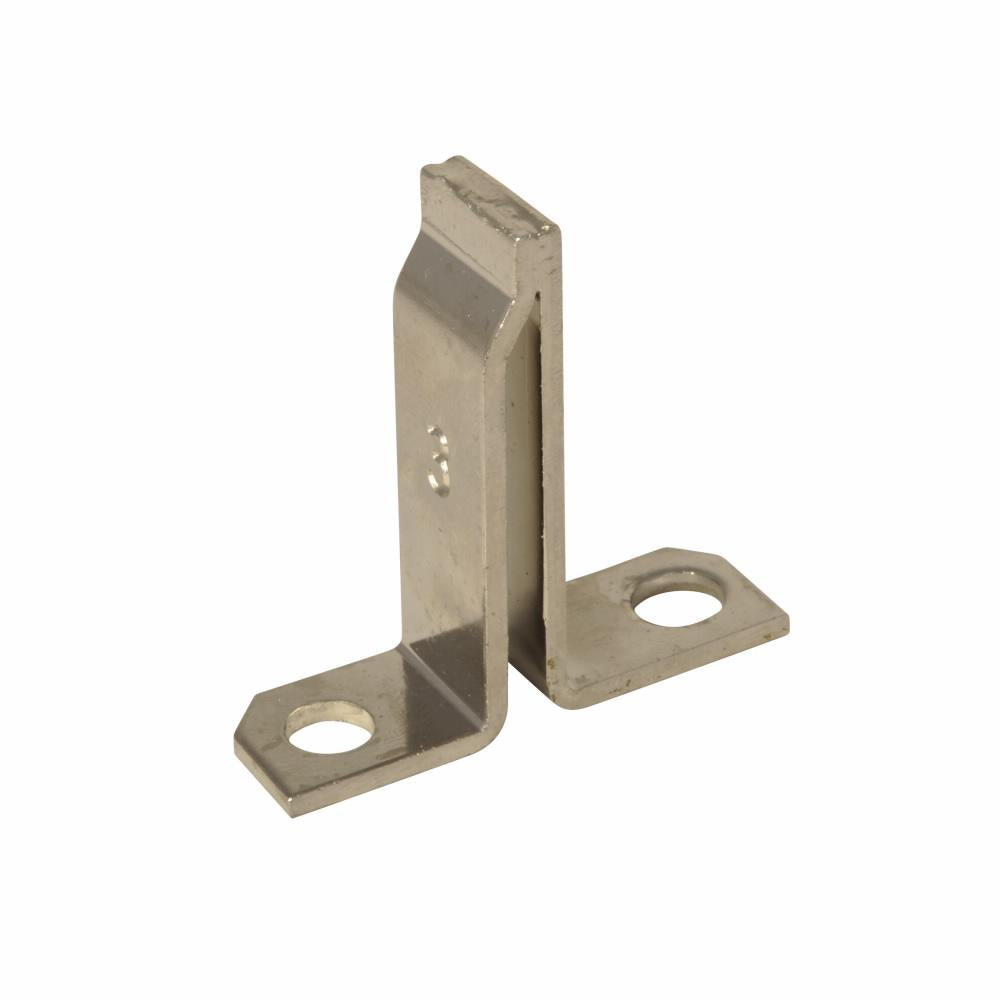

Eaton FH93 Electrical FH93 130 to 133 Amp Thermal Fast Trip Overload Relay Heater

Product Description

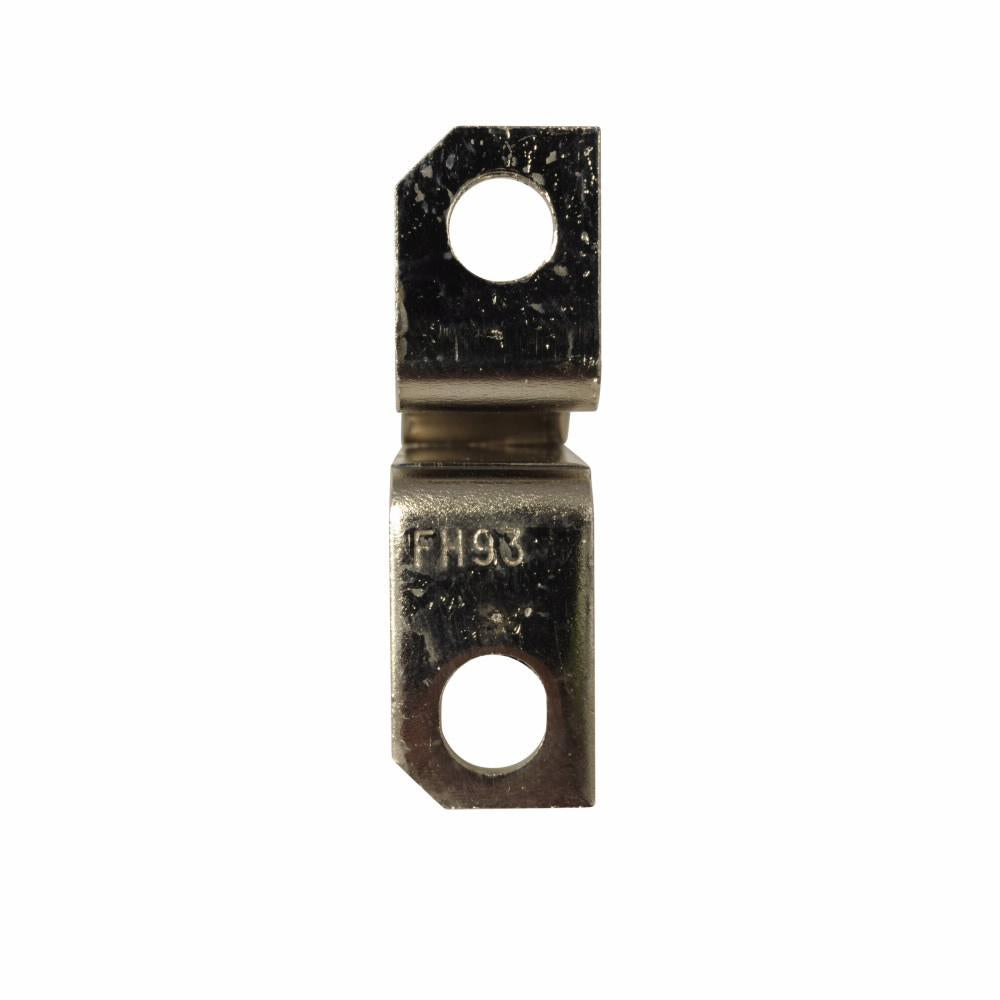

The Eaton FH93 Electrical FH93 130 to 133 Amp Thermal Fast Trip Overload Relay Heater is an A200/B100 heater designed for use with A200 Starter Sizes 4, 3-Phase Only. It features thermal and fast trip functionality and is identified by a catalog number stamped on one terminal. The heater application table indicates the range of full load motor current to which a given heater may be applied.

• Select heater coils based on full load current (FLA) shown on motor nameplate
• Type A and b overload relay
• Heater coils are rated to protect 40 deg C rise and a service factor of 1.15

Product Highlights

Eaton FH93 overload relay heater with thermal and fast trip, suitable for A200 series 3-phase size 3 and 4 starter.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH93
• Country of Origin: United States

Technical Specifications

• Type: A200 Heater
• Brand: Eaton
• Height: 2.2 Inch
• Length: 1.9 Inch
• Trip Type: Fast Trip,Thermal
• Full Load Current: 130 to 133 A Ambient, 123 to 128 A Non-Comp
• MPN: FH93
• Used with A200 Starter Sizes: 4, 3-Phase Only
• Ambient: 130-133A
• Non-Comp: 123-128A
• Thermal and Fast Trip: True
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Spare part
• Sub-range name: FH
• Functions: Replacement heater element
• Technical compatibility with: A200 series Size 4 overl. rlys
• Manufacturer product status: Commercialized
• Application: For A200 series 3-phase size 3 and 4 starter, safety and emergency exit devices, industrial facilities and factories facility applications
• Component: Heater
• Manufacturer: Eaton
