Product Description

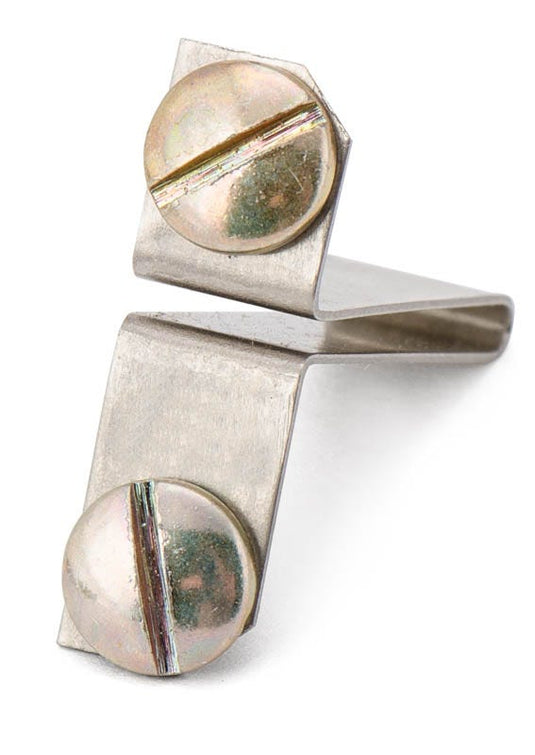

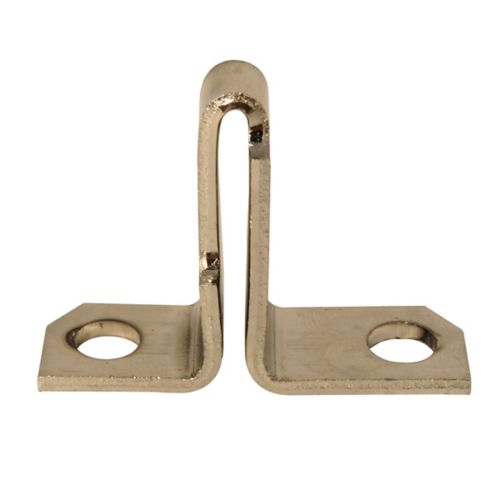

The EATON FH88 is an A200 heater used with A200 starter sizes 3 and 4, designed for 3-phase systems. It features NEMA design and supports ambient 85-92A and non-comp 78-84A. Suitable for type A and B thermal overload relays, it offers thermal and fast trip functionality.
- Used with A200 Starter Sizes 3 & 4, 3-Phase Only
- Full load current range: Ambient 85-92 A, Non-Comp 78-84 A
- Overload relay: Type A and B
Product Highlights
The EATON FH88 heater is for A200 series starters, providing reliable overload protection with thermal and fast trip capabilities.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: FH88
-
Country of Origin: US
Technical Specifications
-
Catalog Number: FH88
-
UPC: 786678671086
-
Product Length/Depth: 2.1 in
-
Product Height: 0.8 in
-
Product Width: 1.1 in
-
Certifications: CSA Certified UL Listed
-
Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
-
Global Catalog: FH88
-
Product Type: Heater
-
Special features: Used with A200 Starter Sizes 3 & 4, 3-Phase Only
-
Type: A200 Heater
-
Used with: Used with A200 Starter Sizes 3 & 4, 3-Phase Only
-
Design: NEMA
-
Full load current range: Ambient 85-92 A, Non-Comp 78-84 A
-
Overload relay: Type A and B
-
Trip type: Thermal and fast trip
-
Brand: Eaton
-
Series: A200/B100
-
Amperage: 78-84
-
Approval: UL, CSA
-
Protection: Thermal
-
For Use With: A200 Starter Sizes 3 and 4, 3-Phase, Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
-
Standards: NEMA
-
Nema Size: 3, 4
-
Mpn: FH88
-
Upc: 786678671086
-
Gtin: 786678671086
-
Number of Items: 1
-
Manufacturer: Eaton Corporation
-
UNSPSC Code: 41110000
-
Unit of Measure: EA
-
Amps: 92
-
Amps Range: 78 - 92
-
UNSPSC: 39122330
-
Used On: Type A and B Overload Relay, A200 Series Starter
-
Trip Type: Fast/Thermal
-
Application: For A200 series 3-phase size 3 and 4 starter, safety and emergency exit devices, industrial facilities and factories facility applications
-
Enclosure Type: NEMA 3/4
-
Motor FLA: 85 to 92 Amp
