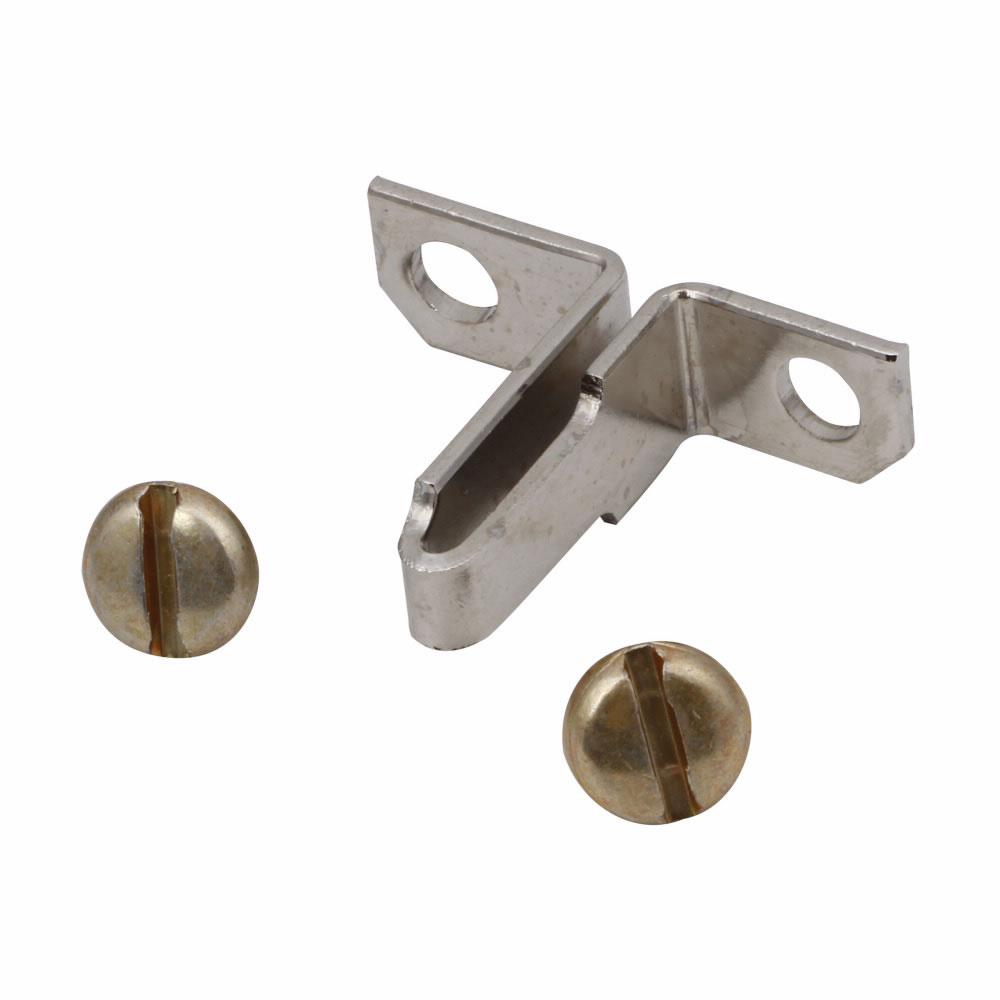

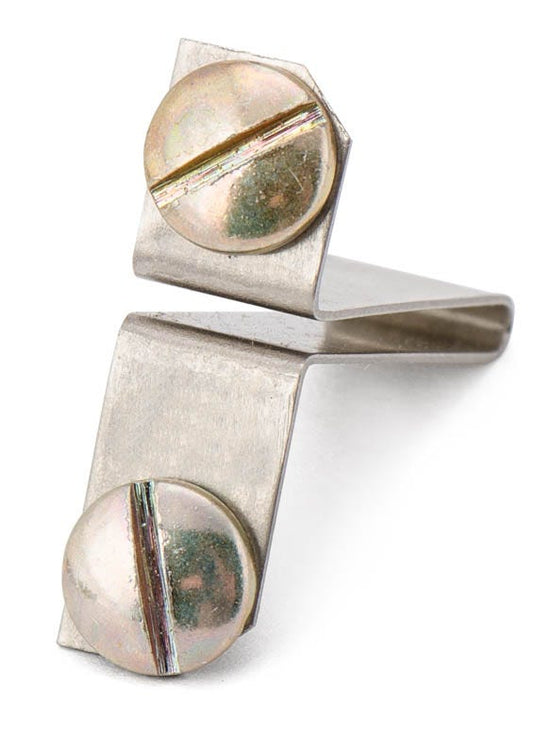

Eaton FH87 A200/B100 heater

Product Description

The Eaton FH87 is an A200/B100 heater used with A200 starter sizes 3 and 4. It is designed for 3-phase systems and features thermal and fast trip functionality. This heater is NEMA rated and suitable for thermal overload relays, magnetic motor starters, and motor controls, with ambient 79-84A and non-comp 73-77A full load current range.

• Used with A200 Starter Sizes 3 & 4, 3-Phase Only
• NEMA design
• Thermal and fast trip

Product Highlights

Eaton FH87 A200/B100 heater for A200 starter sizes 3 and 4, featuring thermal and fast trip.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH87
• Country of Origin: USA

Technical Specifications

• Catalog Number: FH87
• UPC: 786678671055
• Product Length/Depth: 2.1 in
• Product Height: 0.8 in
• Product Width: 1.3 in
• Certifications: UL Listed CSA Certified
• Global Catalog: FH87
• Product Type: Heater
• Special features: Used with A200 Starter Sizes 3 & 4, 3-Phase Only
• Type: A200 Heater
• Used with: Used with A200 Starter Sizes 3 & 4, 3-Phase Only
• Design: NEMA
• Full load current range: Ambient 79-84 A, Non-Comp 73-77 A
• Overload relay: Type A and B
• Trip type: Thermal and fast trip
• Series: A200/B100
• Amperage: 73-77
• Approval: UL, CSA
• Protection: Thermal
• Length (in): 2.1
• Width (in): 1.3
• Height (in): 0.8
• For Use With: A200 Starter Sizes 3 and 4, 3-Phase, Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
• Standards: NEMA
• Nema Size: 3, 4
• Mpn: FH87
• Gtin: 786678671055
• Manufacturer: Eaton Cutler-Hammer
• Family: A200 Series
• UNSPSC: 39122330
• Used On: Type A and B Overload Relay, A200 Series Starter
• Trip Type: Fast/Thermal
• Application: For A200 series 3-phase size 3 and 4 starter, safety and emergency exit devices, industrial facilities and factories facility applications
• Enclosure Type: NEMA 3/4
• Size: 2.1 in L x 1.3 in W x 0.8 in H
• Motor FLA: 79 to 84 Amp
• Accessory Type: Overload Heater
• Package Qty: 1.0000
• Manufacture: EATON
• Mfr Catalog Number: FH87
• Product Group: 2786
• Product UPC: 78667867105
• EAN / GTIN: 786678671055
• Product Category: Overload Heater
• Commodity Code: 4170
• Country of Origin: DOM
