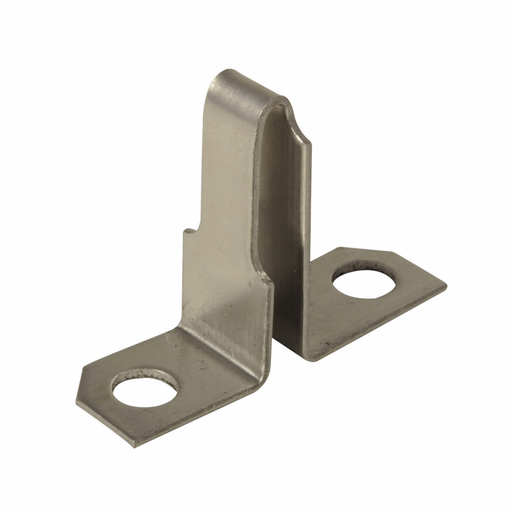

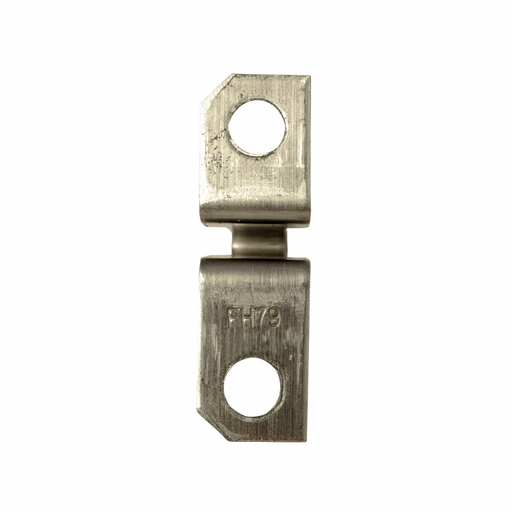

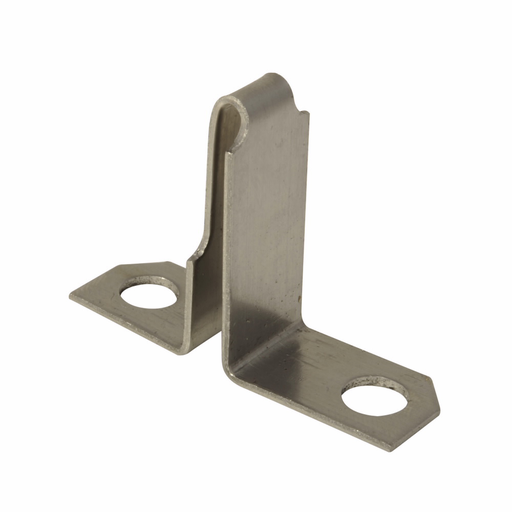

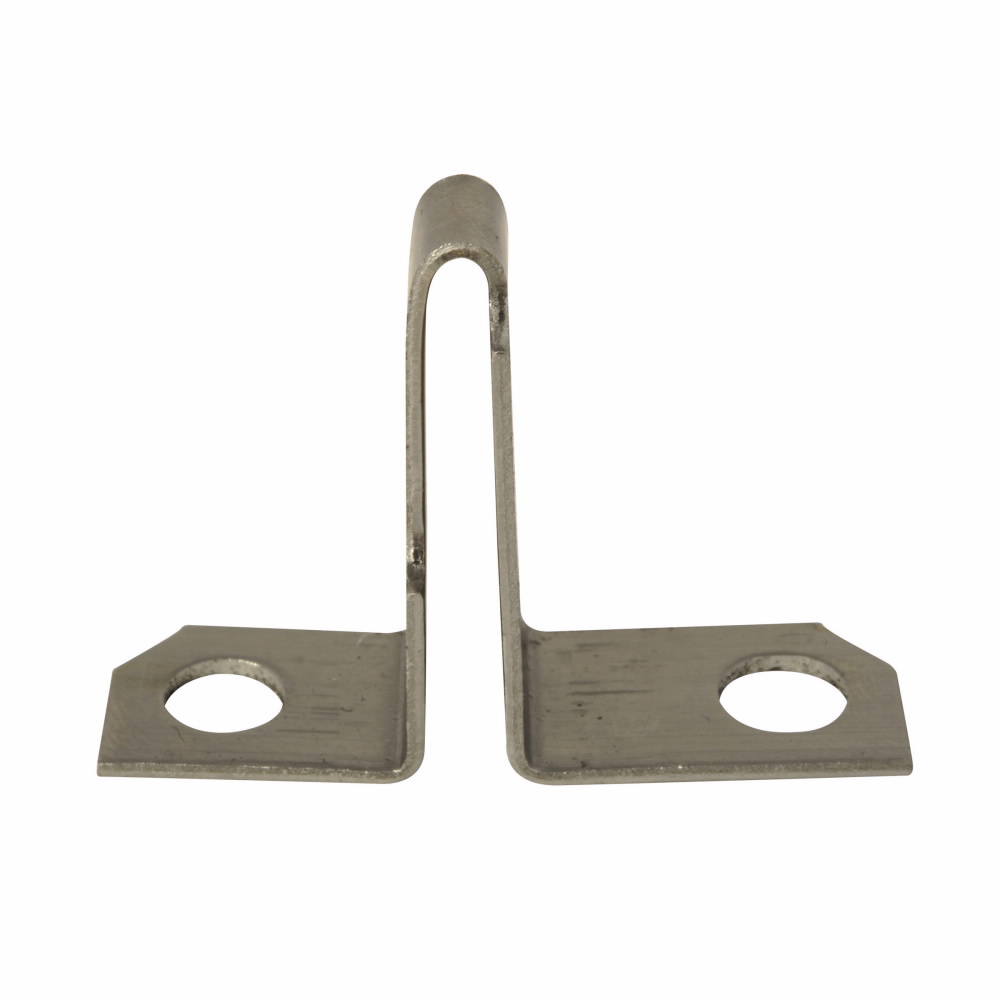

Eaton FH79 Electrical FH79 37.6 to 41.5 Amp Thermal Fast Trip Overload Relay Heater

Product Description

The Eaton FH79 is an electrical overload relay heater designed for use with A200 series NEMA contactors and starters. It is compatible with Type A and B overload relays and features both thermal and fast trip functionality. This heater is designed for 3-phase systems and is NEMA rated for ambient conditions of 37.6 to 41.5A.

• Used with A200 Starter Sizes 3 and 4
• 3PH Only
• NEMA

Product Highlights

The Eaton FH79 provides thermal and fast trip protection for motor circuits, ensuring reliable operation and preventing damage from overloads.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH79

Technical Specifications

• Type: A200 Heater
• Brand: Eaton
• Trip Type: Fast Trip,Thermal
• Standard: CSA,UL
• Series: FH
• Full Load Current Rating: 37.6 to 41.5 A Ambient
• Full Load Current Range: Ambient 37.6-41.5A, Non-Comp 34.6-38.2A
• Application: For use with A200 Series NEMA Contactors and Starters
• Overload Relay: Type A and B
• Manufacturer Part Number: FH79
• Motor FLA: 37.6 to 41.5 Amp
• NEMA Size: 3, 4 (Enclosed)
