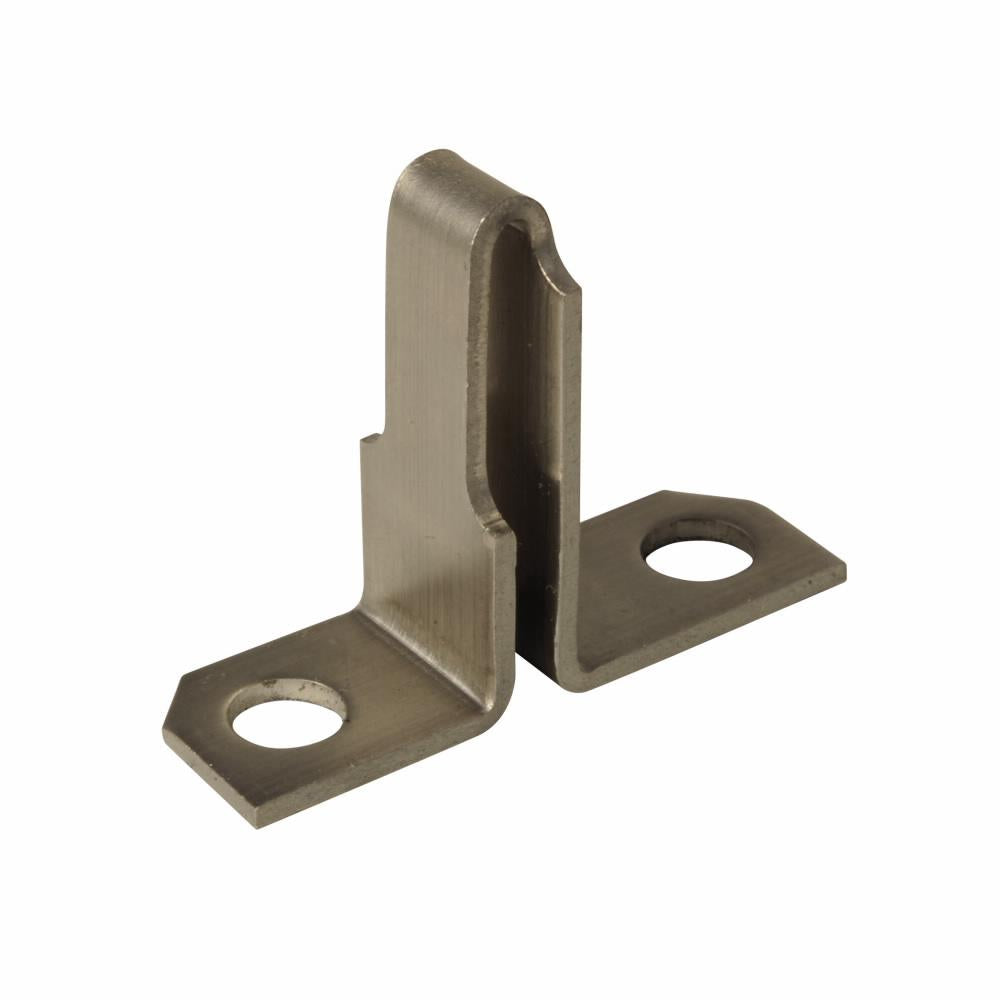

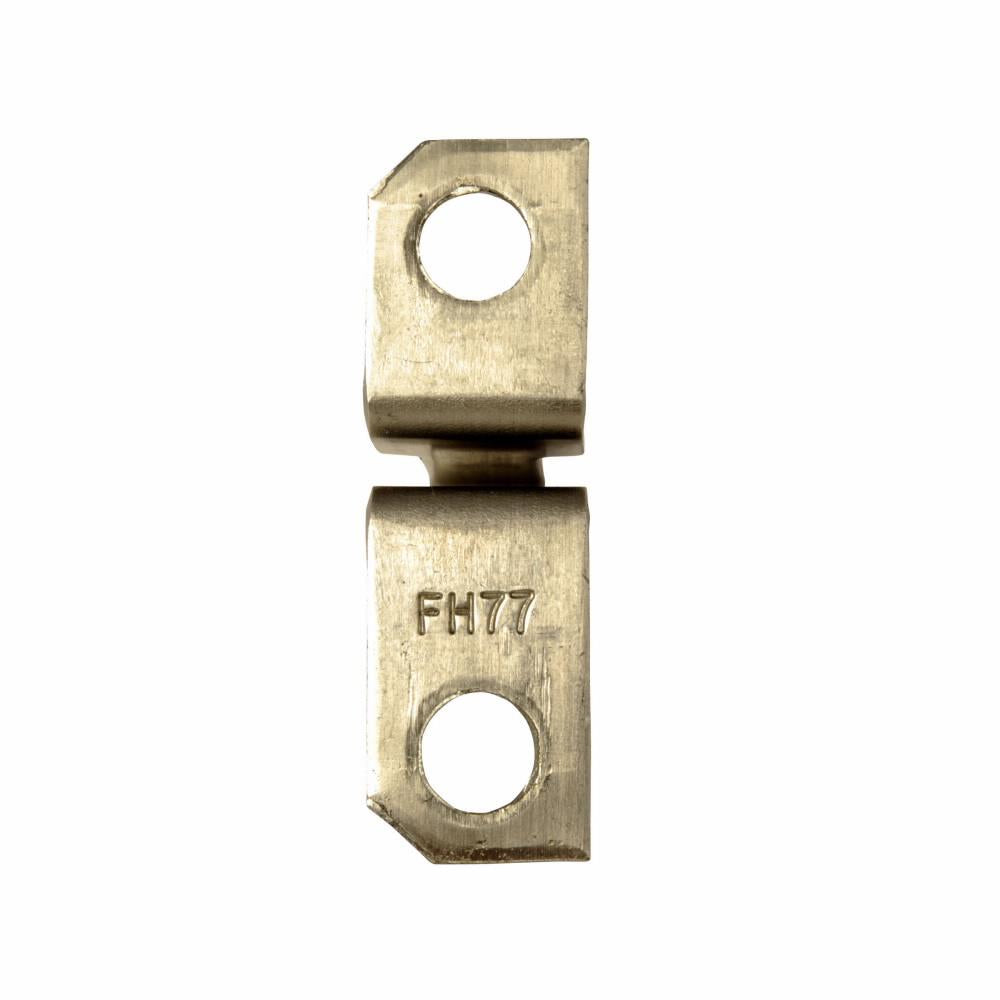

Eaton FH77 Electrical FH77 30.7 to 33.5 Amp Thermal Fast Trip Overload Relay Heater

Product Description

The Eaton FH77 is an A200/B100 heater designed for motor protection and compliance with NEC Article 430-32. It is used with A200 starter sizes 3 and 4, and is compatible with 3-phase systems. This heater features both thermal and fast trip functionality and is suitable for NEMA enclosures. Select heater coils based on the full load current shown on the motor nameplate.

• Used with A200 Starter Sizes 3 and 4
• 3PH Only
• NEMA

Product Highlights

The Eaton FH77 heater provides thermal and fast trip protection for motors, ensuring compliance and reliable operation in industrial settings.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH77
• Country of Origin: Dominican Republic

Technical Specifications

• Type: A200 Heater
• Brand: Eaton
• Height: 1.3 Inch
• Length: 2.3 Inch
• Standard: CSA,UL
• Trip Type: Fast Trip,Thermal
• Manufacturer: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Application: Ind Facilities & Factories - Industrial Facilities/Factories - Other
• Special Features: Used with A200 Starter Sizes 3 & 4, 3-Phase Only
• Item Type: Heater
• Enclosure Type: NEMA 3/4
• Full Load Current: 30.7 to 33.5 A Ambient, 28.2 to 30.8 A Non-Comp
• MPN: FH77
• Used with: A200 Starter Sizes 3 and 4
• Phase: 3PH Only
• Ambient: 30.7-33.5A
• Non-Comp: 28.2-30.8A
• Product Width: 1.9 in
• Certifications: CSA Certified UL Listed
• Design: NEMA
• Full load current range: Ambient 30.7-33.5 A, Non-Comp 28.2-30.8 A
• Overload relay: Type A and B
