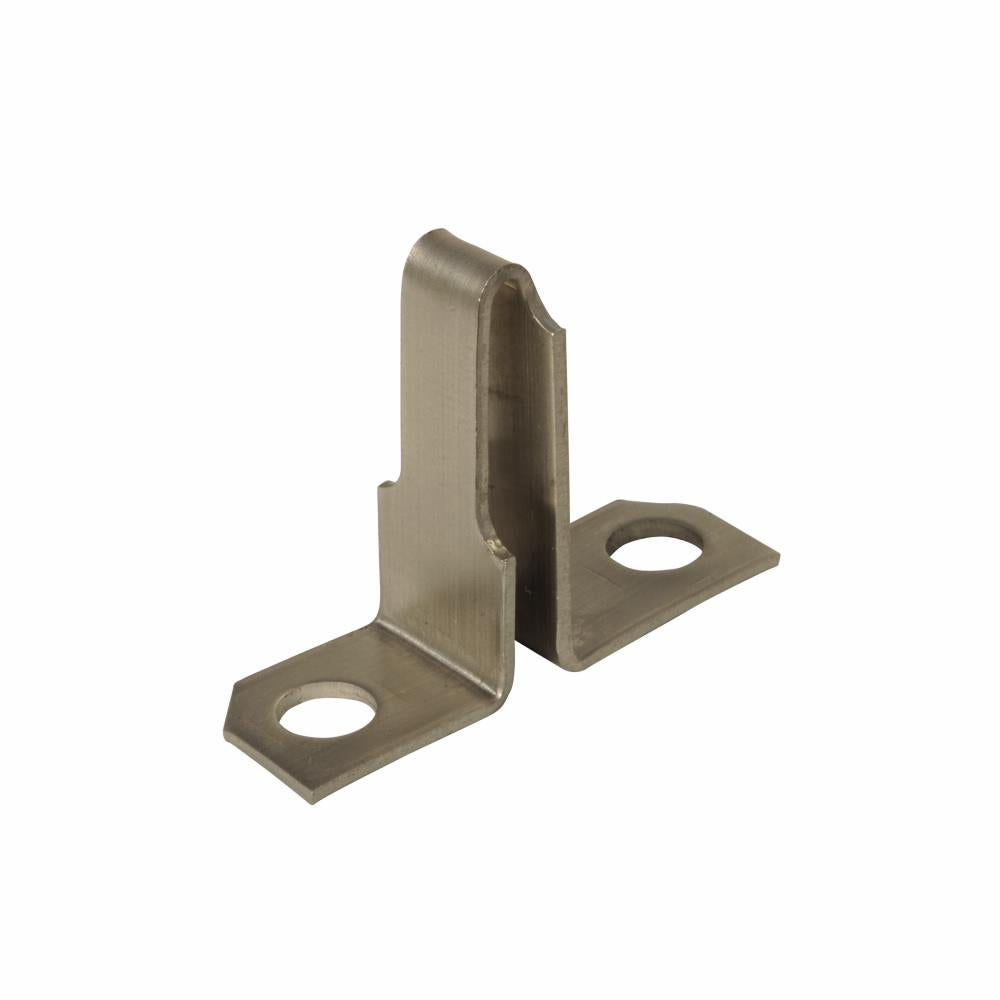

Eaton FH76 Type B100 Overload Relay Heater 27.9 to 30.6 Amp

Product Description

The EATON FH76 Type B100 overload relay heater is designed for motor protection. Select heater coils based on the full load current (FLA) shown on the motor nameplate. It is rated to protect 40 deg C rise and a service factor of 1.15. This heater is used with A200 starter sizes 3 and 4, 3-phase only and has a 25.7 to 28.1 A non-compensating full load current.

• Select heater coils based on full load current (FLA) shown on motor nameplate
• Type A and B overload relay
• Heater coils are rated to protect 40 deg C rise and a service factor of 1.15

Product Highlights

EATON FH76 overload relay heater protects motors with a service factor of 1.15. It is compatible with A200 starter sizes 3 and 4.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH76

Technical Specifications

• Full Load Current: 27.9 to 30.6 A Ambient, 25.7 to 28.1 A Non-Comp
• Trip Type: Fast/Thermal
• Type: Type B100
• Standard: CSA,UL
• Height: 1.3 Inch
• Length: 2.2 Inch
• Full Load Current Rating: 27.9 to 30.6 A
• Series: A200
• Frame: F
• Application: For A200 series 3-phase size 3 and 4 starter, safety and emergency exit devices, industrial facilities and factories facility applications
• Voltage Rating: 347 VAC/125 VDC
• Connection Type: Load Side
• Frequency Rating: 50/60
