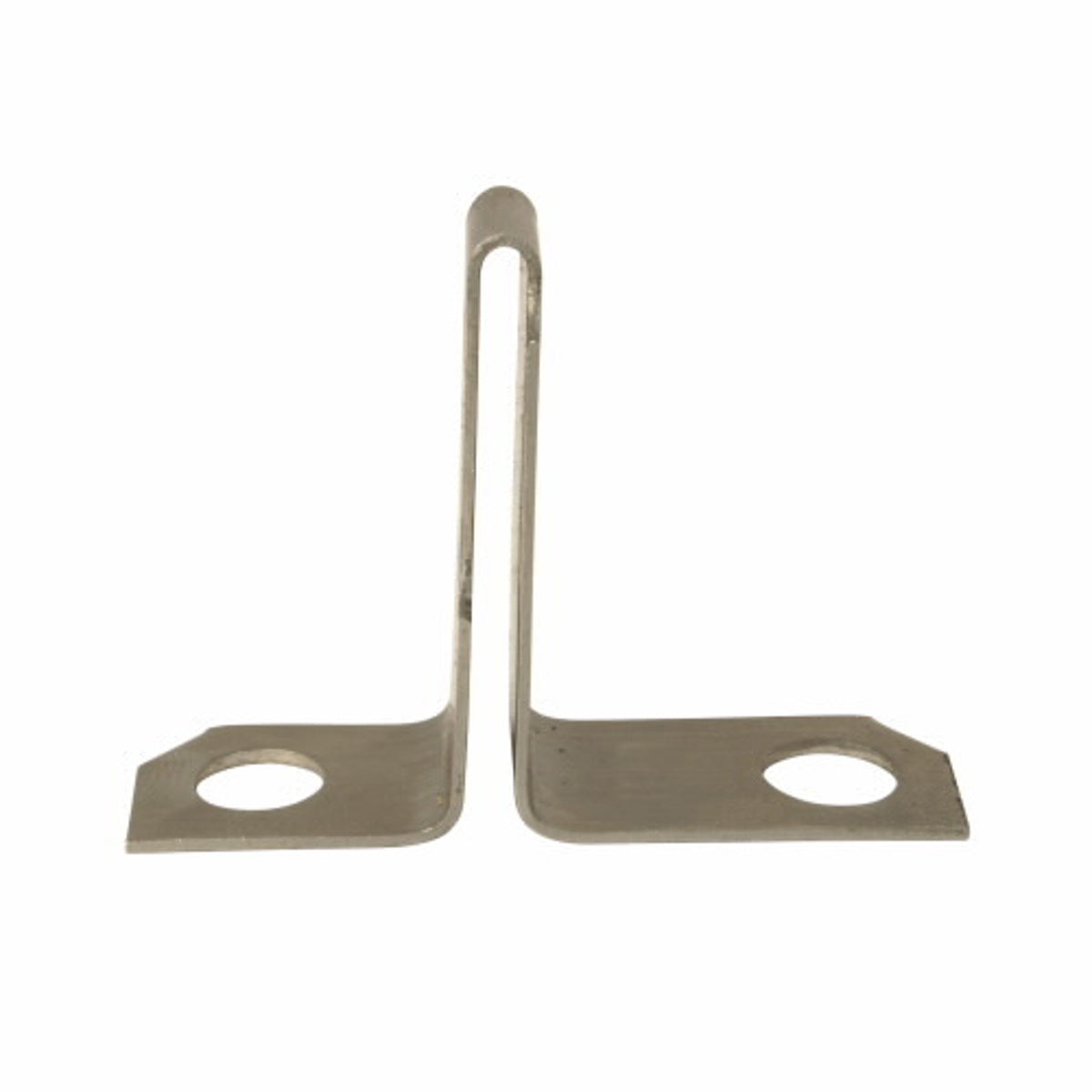

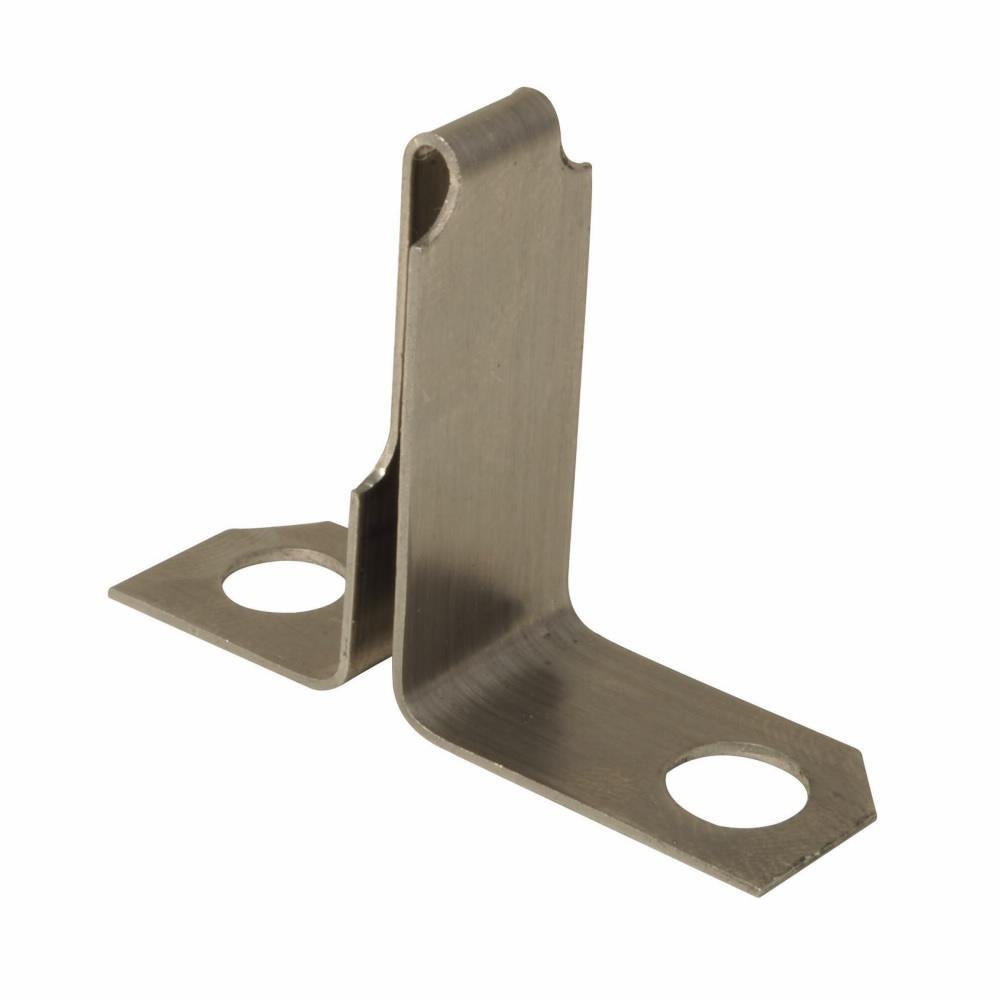

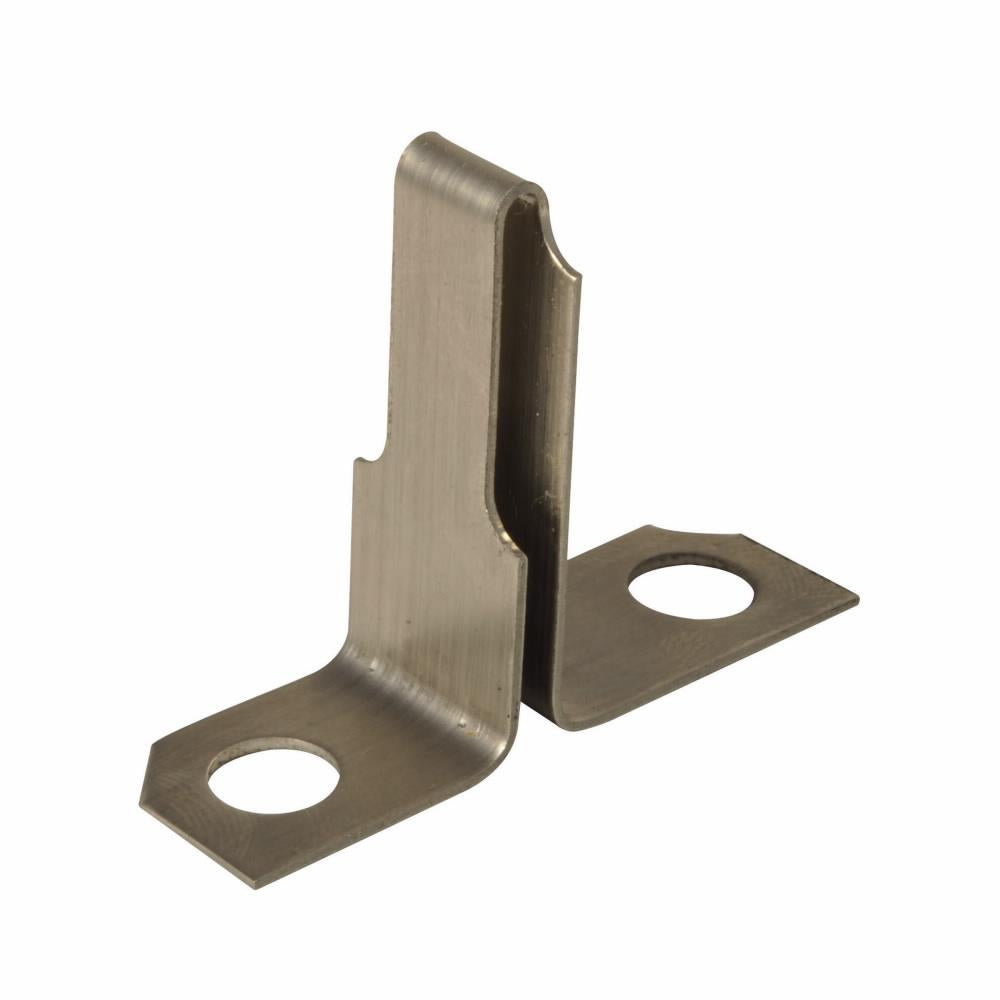

Eaton FH71 A200/B100 Heater

Product Description

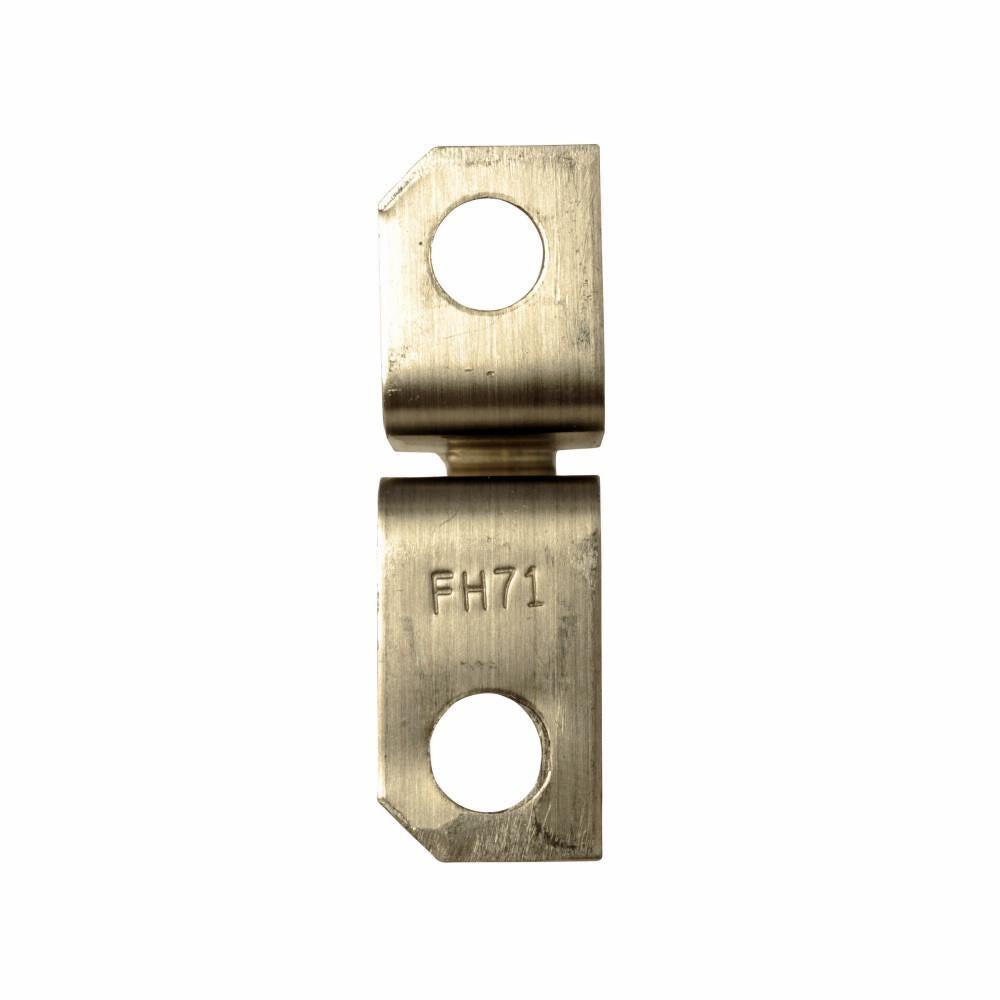

The EATON FH71 A200/B100 heater is designed for motor protection and compliance with NEC Article 430-32. It is used with A200 starter sizes 3 and 4, and is compatible with 3-phase systems. This heater features both thermal and fast trip functionality and is identified by a catalog number stamped on one terminal.

• Used with A200 Starter Sizes 3 & 4
• 3-Phase Only
• Select heater coils based on full load current (FLA) shown on motor nameplate

Product Highlights

EATON FH71 A200/B100 heater ensures motor protection with thermal and fast trip capabilities, designed for use with A200 starter sizes 3 and 4 in 3-phase systems.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH71
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: FH71
• Manufacturer: Eaton
• Brand: Eaton
• Application: Ind Facilities & Factories - Industrial Facilities/Factories - Other
• Special Features: Used with A200 Starter Sizes 3 & 4, 3-Phase Only
• Standard: CSA Certified,UL Listed
• Item Type: Heater
• Trip Type: Thermal and fast trip
• Type: Type B100
• Heater Type: A200/B100 heater
• Amperage: Ambient 17.2. 18.9A, Non-Comp 16.0-17.4A
• Height: 0.8 Inch
• Length: 2.1 Inch
• Manufacturer Part Number: FH71
• Series: A200
• Full Load Current Rating: 17.2. 18.9 A
