Eaton FH58 Heater

Product Description

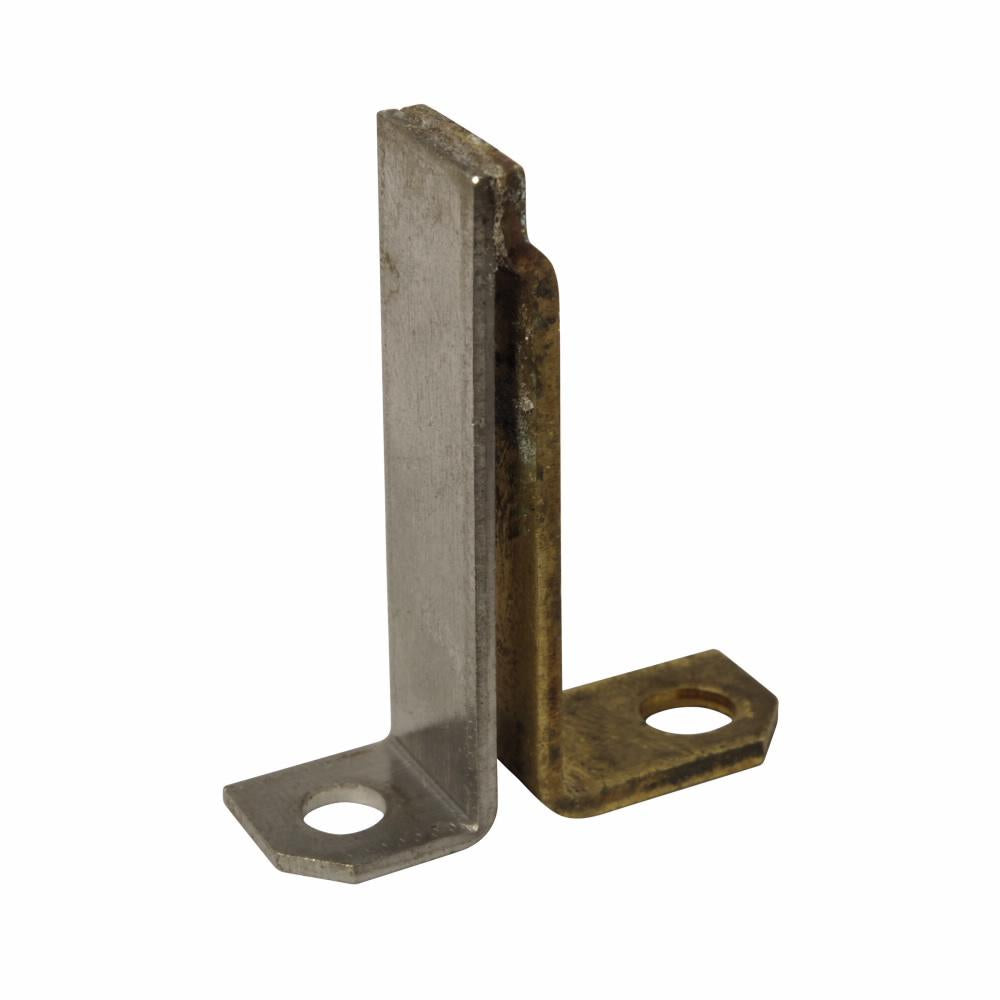

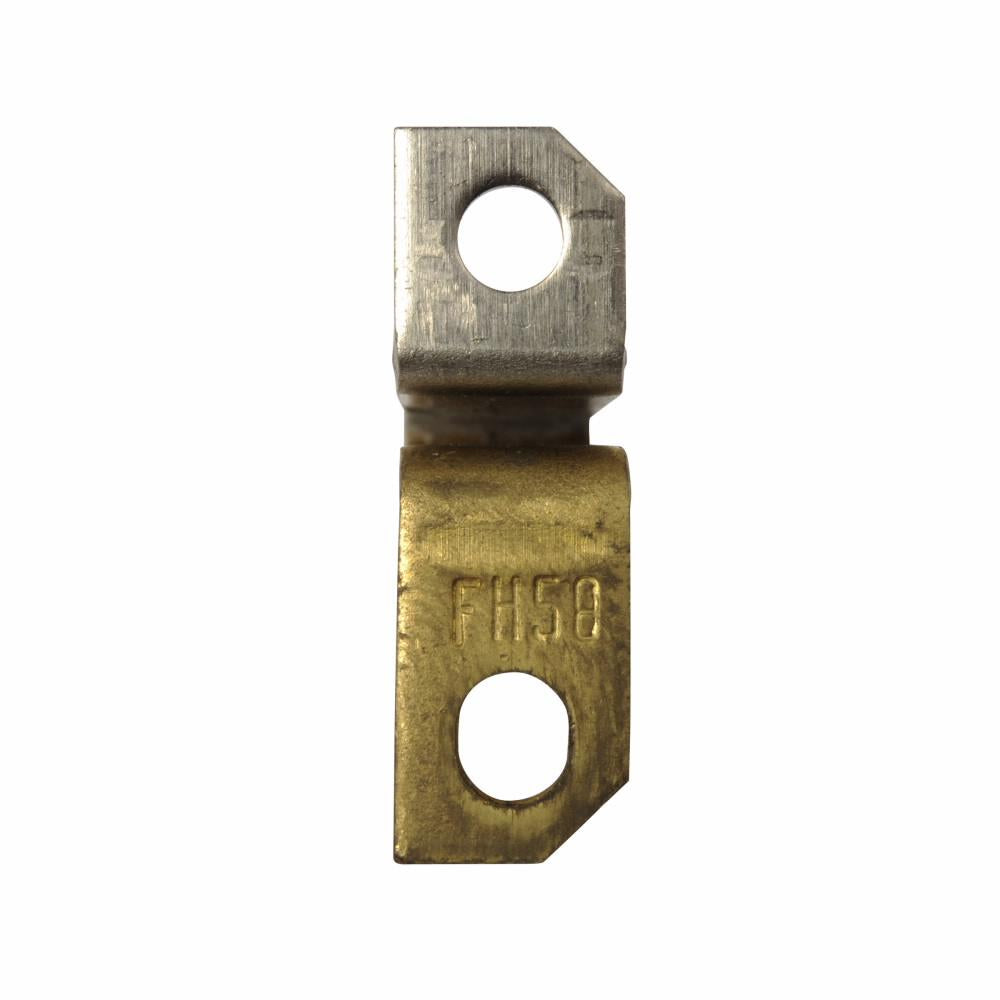

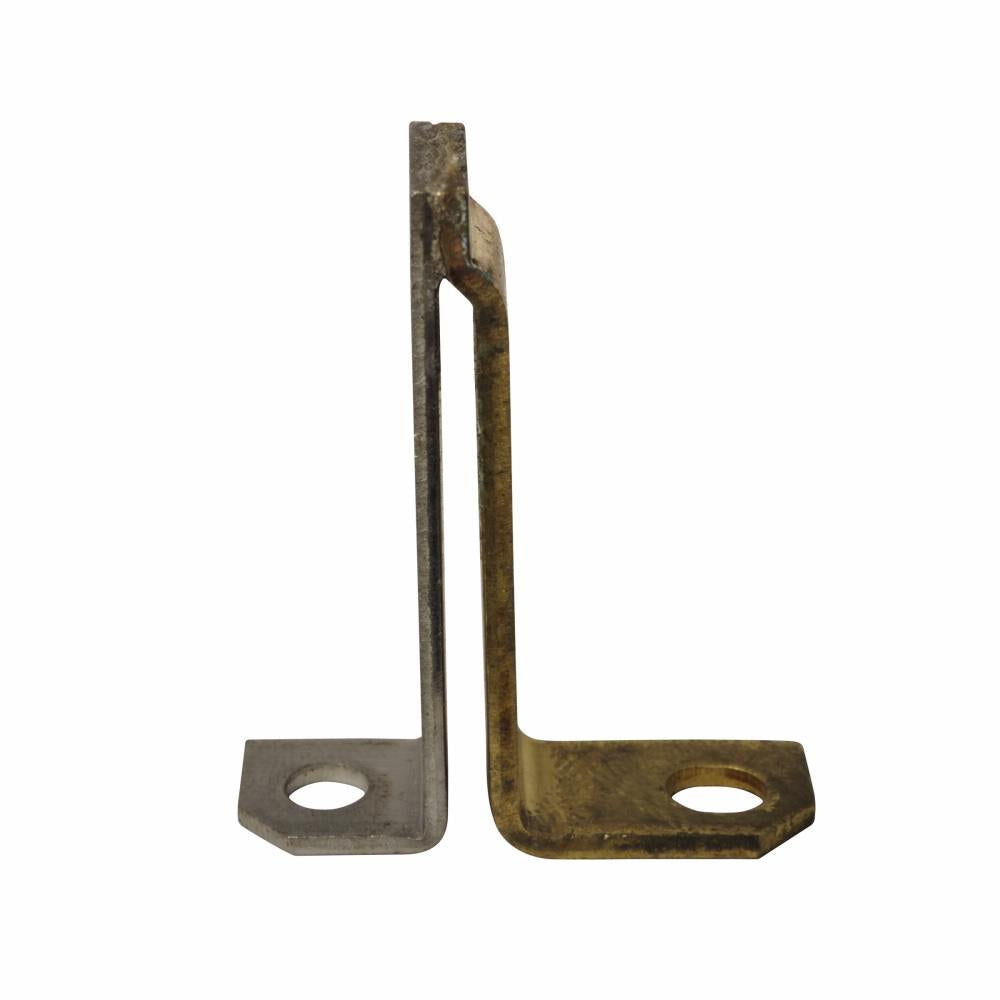

The EATON FH58 is a Type B100 overload relay heater. Each heater is identified by a catalog number stamped on one terminal. It protects 40°C rise and a service factor of 1.15. Select heater coils based on full load current (FLA) shown on motor nameplate. It is used with starter sizes 1 and 2.

• Select heater coils based on full load current (FLA) shown on motor nameplate
• Type A and b overload relay
• Heater coils are rated to protect 40 deg C rise and a service factor of 1.15

Product Highlights

The EATON FH58 overload relay heater is for use with starter sizes 1 and 2. It is designed for motor protection and compliance with Article 430-32 of the National Electrical Code.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH58

Technical Specifications

• Enclosure Type: NEMA 1/2
• Full Load Current: 0.25 to 0.27/0.29 to 0.31 A Ambient, 0.24 to 0.25/0.28 to 0.3 A Non-Comp
• Trip Type: Fast/Thermal
• Type: Type B100
• Full Load Current Rating: 0.25 to 0.27/0.29 to 0.31 A
• Standard & Approvals: UL Listed, CSA Certified
• Series: A200/B100
• Part Number: FH58
• Manufacturer: Eaton Cutler-Hammer
• Family: A200 Series
• Category: Overload Relays
• Component: Heater
