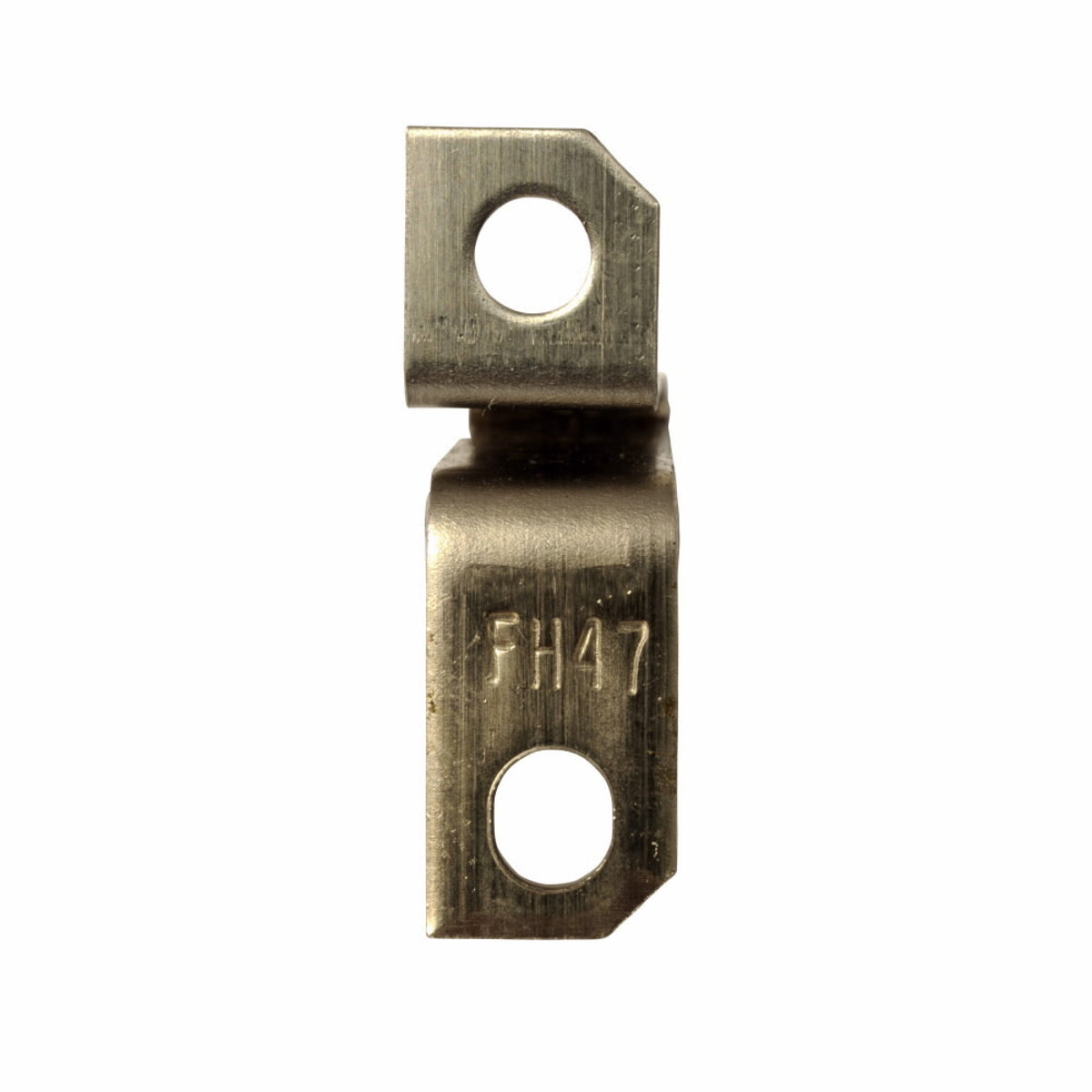

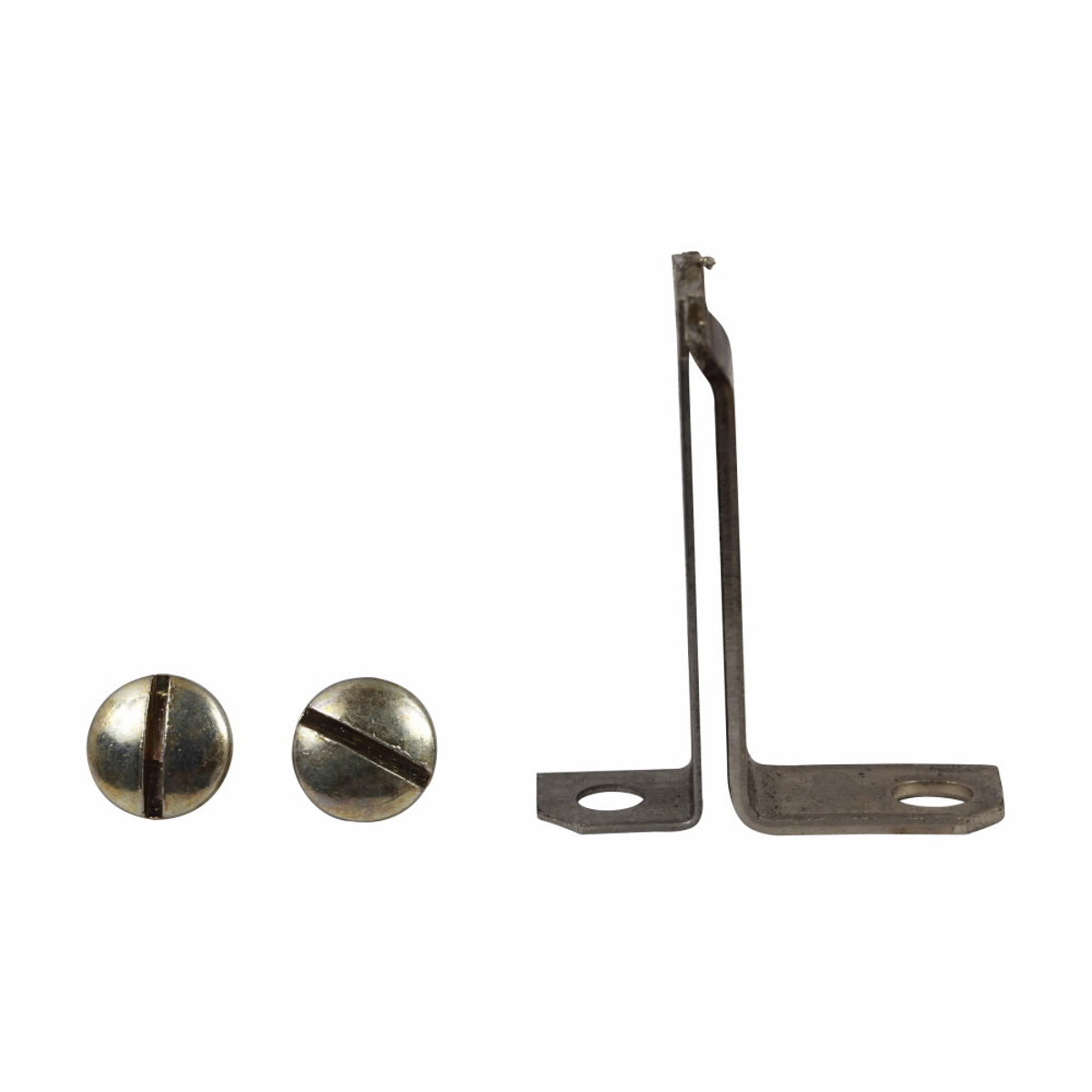

Eaton FH47 A200/B100 Heater

Product Description

The Eaton FH47 A200/B100 heater is designed for use with starter sizes 0, 1, and 2. This heater is suitable for NEMA enclosures and offers both thermal and fast trip functionality. It supports ambient full load current ranges of 19.0-20.8A and non-compensating full load current ranges of 15.2-16.7A and 18.4-20.0A.

• Used with Starter Sizes 0, 1, and 2
• Features fast trip and thermal overload protection
• Select heater coils based on full load current (FLA) shown on motor nameplate

Product Highlights

Eaton FH47 A200/B100 heater provides reliable overload protection for motor starters, ensuring compliance with electrical codes.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH47
• Country of Origin: Dominican Republic

Technical Specifications

• Type: A200,B100,Heater
• Brand: Eaton
• Height: 0.8 Inch
• Length: 2.1 Inch
• Trip Type: Fast Trip,Thermal
• Manufacturer: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Application: Ind Facilities & Factories - Industrial Facilities/Factories - Other
• Special Features: Used with Starter Sizes 0,1, and 2
• Standard: CSA Certified,UL Listed
• UPC: 786678670270
• GTIN: 00786678670270
• Item Type: Heater
• Enclosure Type: NEMA 0/1/2
• Full Load Current: 19.0 20.8/16.4 to 18 A Ambient, 15.2 to 16.7/18.4 to 20 A Non-Comp
• Product Length/Depth: 2.1 in
• Product Height: 0.8 in
• Product Width: 1.3 in
• Certifications: UL Listed CSA Certified
• Global Catalog: FH47
• Product Type: Heater
• Design: NEMA
• Full load current range: Ambient 19.0 20.8, 16.4-18.0 A, Non-Comp 15.2-16.7, 18.4-20.0 A
• Overload relay: Type A and B
• Manufacturer Part Number: FH47
• Manufacturer Item Status: Active
• Manufacturers: Eaton
