Product Description

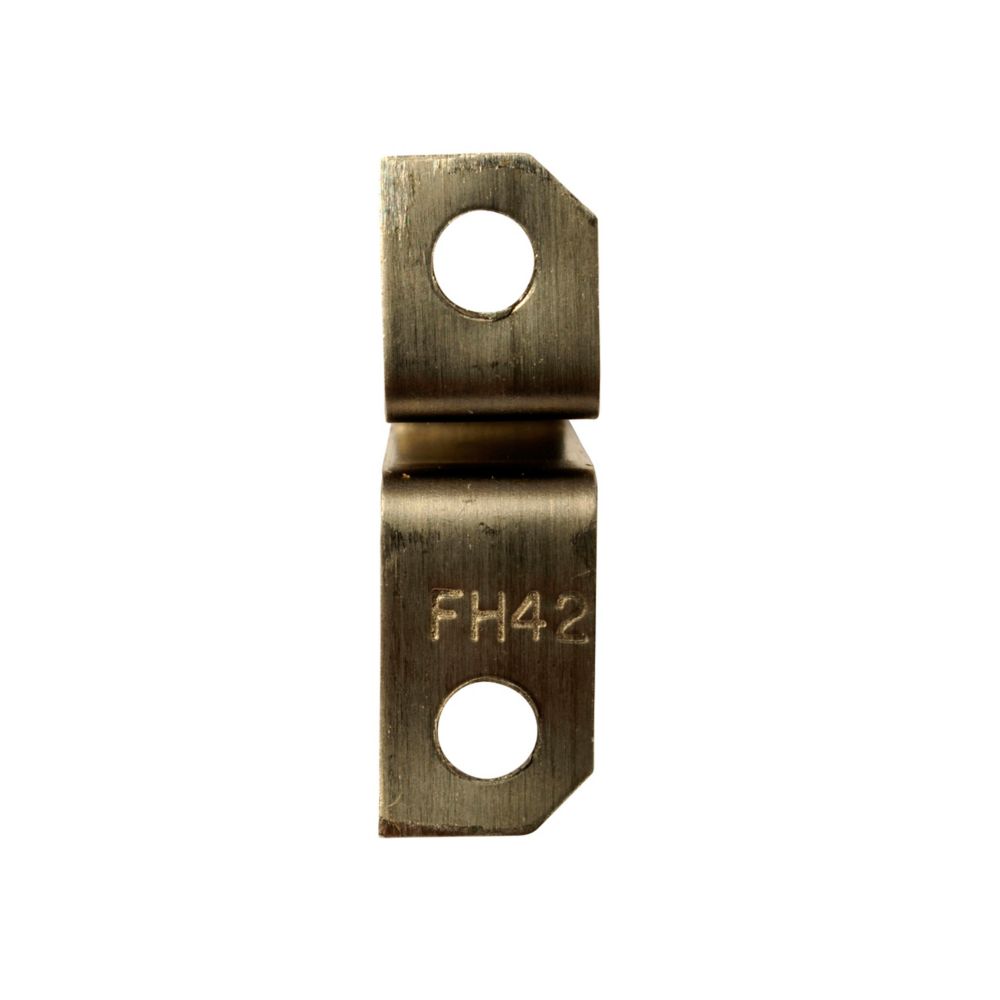

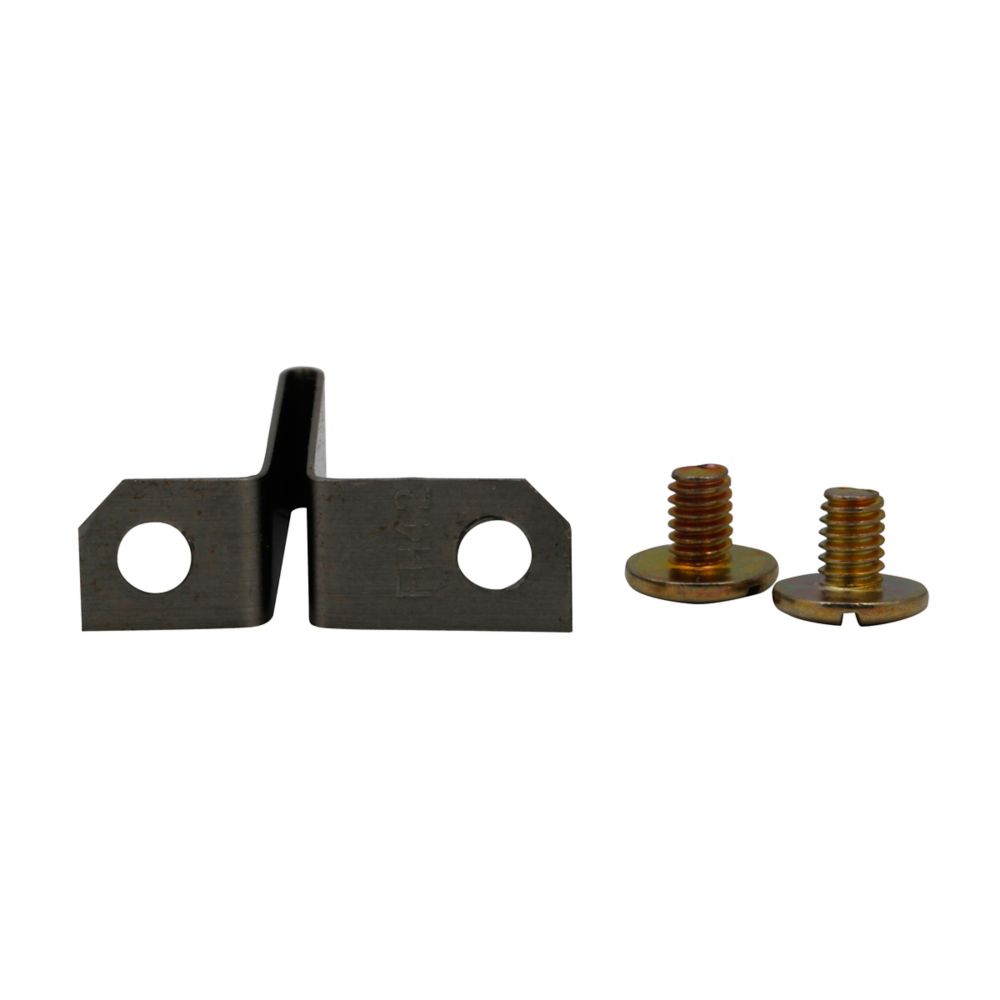

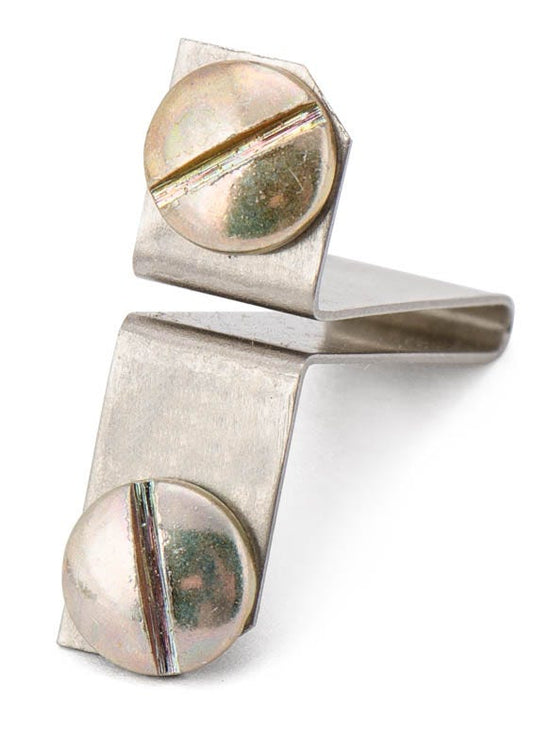

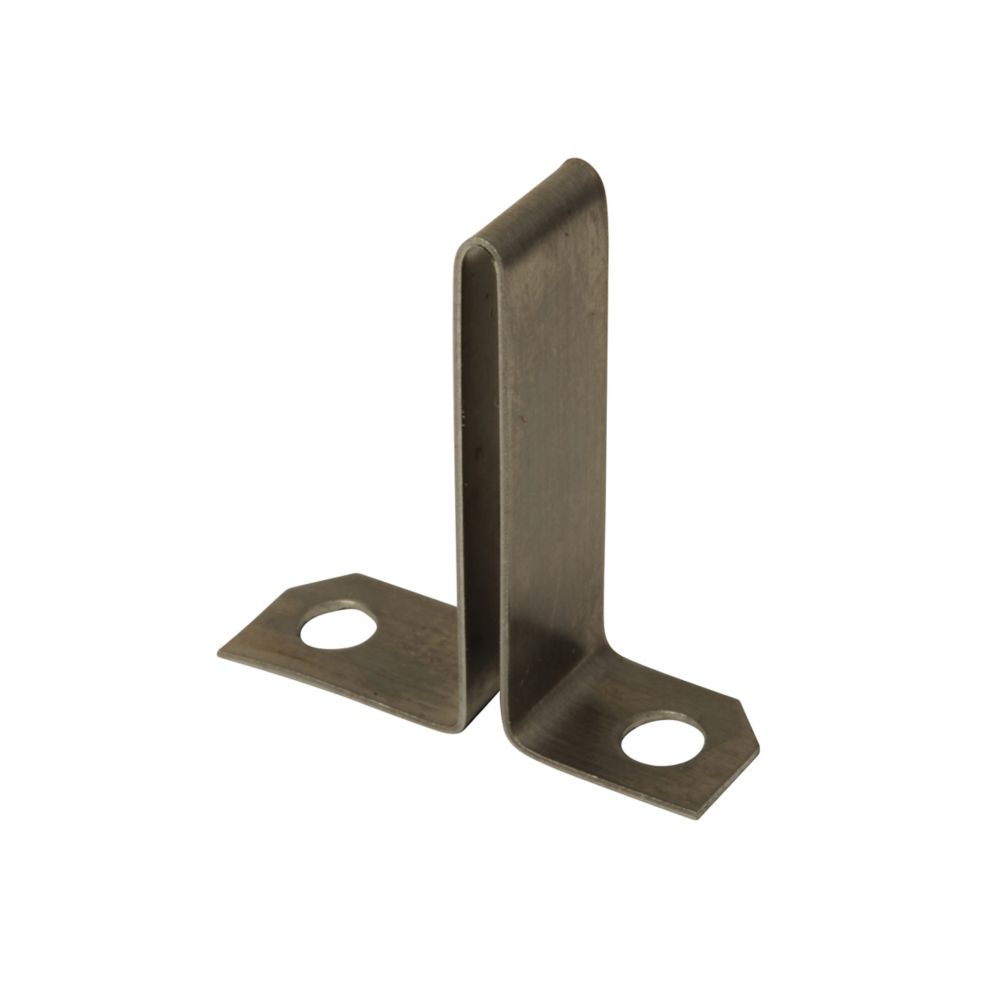

The Eaton FH42 thermal unit replaces damaged or worn thermal units in overload relays. It protects connected loads from overheating and contains bimetallic strips or melting alloy solder materials. The unit breaks electrical connections when a set temperature is reached and can be reset automatically or manually.
- Replaces damaged or worn thermal units in overload relays
- Protects connected loads from overheating
- Contains bimetallic strips or melting alloy solder materials
Product Highlights
The Eaton FH42 thermal unit protects connected loads from overheating.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: FH42
-
Country of Origin: Dominican Republic
Technical Specifications
-
Catalog Number: FH42
-
Product Length/Depth: 2.1 in
-
Product Height: 0.8 in
-
Product Width: 1.4 in
-
Certifications: UL Listed CSA Certified
-
Product Type: Heater
-
Special features: Used with Starter Sizes 0,1, and 2
-
Type: FH
-
Used with: Used with Starter Sizes 0,1, and 2
-
Design: NEMA
-
Full load current range: Ambient 10.4-11.3, 12.0-13.1 A, Non-Comp 9.6-10.5, 11.8-12.7 A
-
Overload relay: Type A and B
-
Trip type: Thermal and fast trip
-
Brand: Eaton/Cutler-Hammer
-
Series: A200/B100
-
Amperage: 11.8-12.7
-
Approval: UL, CSA
-
Protection: Thermal
-
Length (in): 2.1
-
Width (in): 1.4
-
Height (in): 0.8
-
For Use With: Starter Sizes 0,1 and 2, Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
-
Standards: NEMA
-
Nema Size: 0, 1, 2
-
Mpn: FH42
-
Upc: 786678670126
-
Gtin: 786678670126
-
Compatible with Series: A200; B100
-
Full Load Current: 10.4 to 11.3 A
-
Trip Class: 20
-
Overload Protection Type: Thermal
-
UNSPSC: 39121521
-
Manufacturer: Eaton Cutler-Hammer
-
Family: A200 Series
-
Category: Overload Relays
