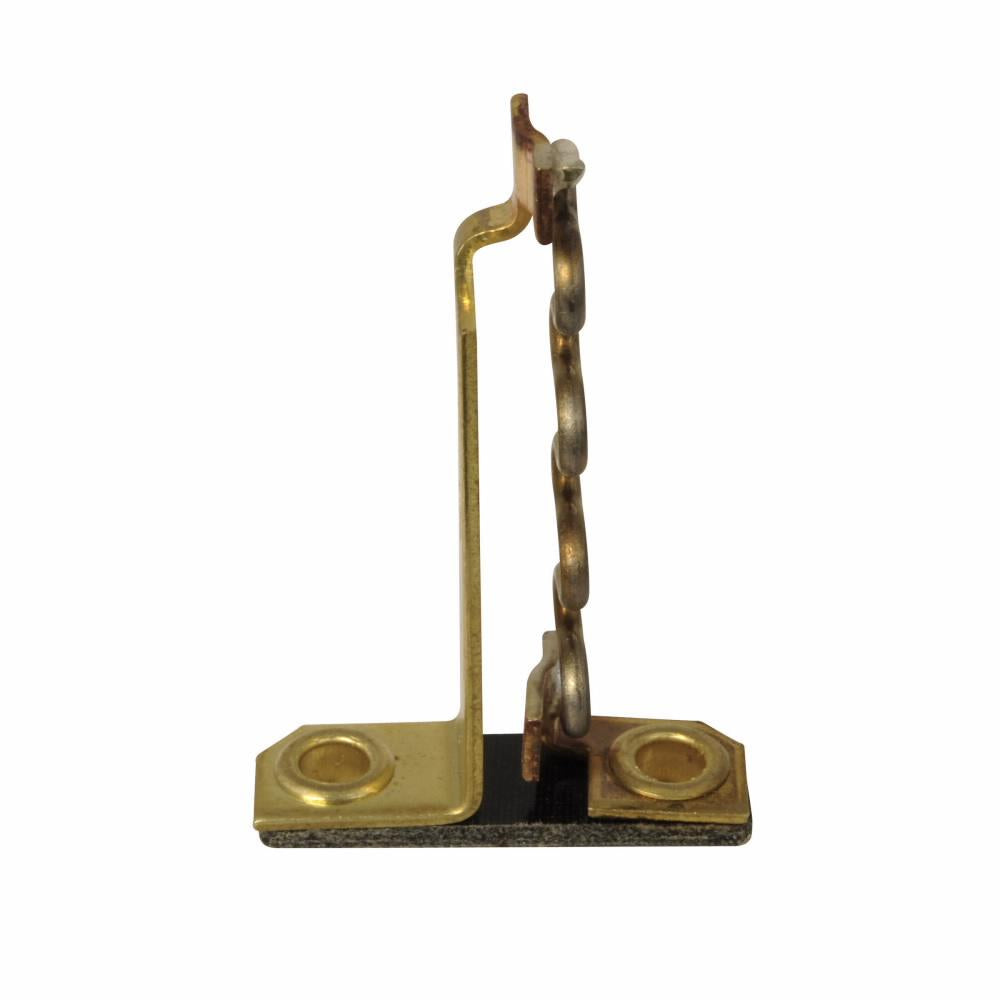

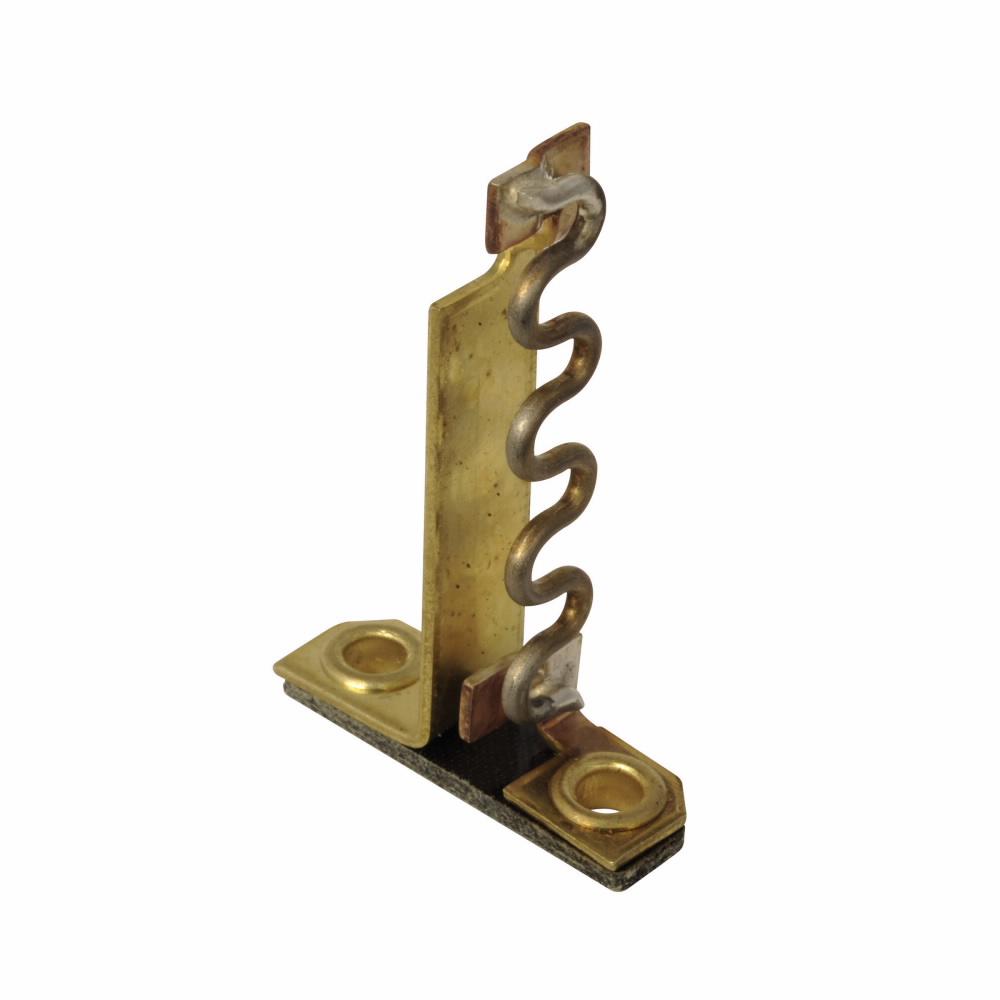

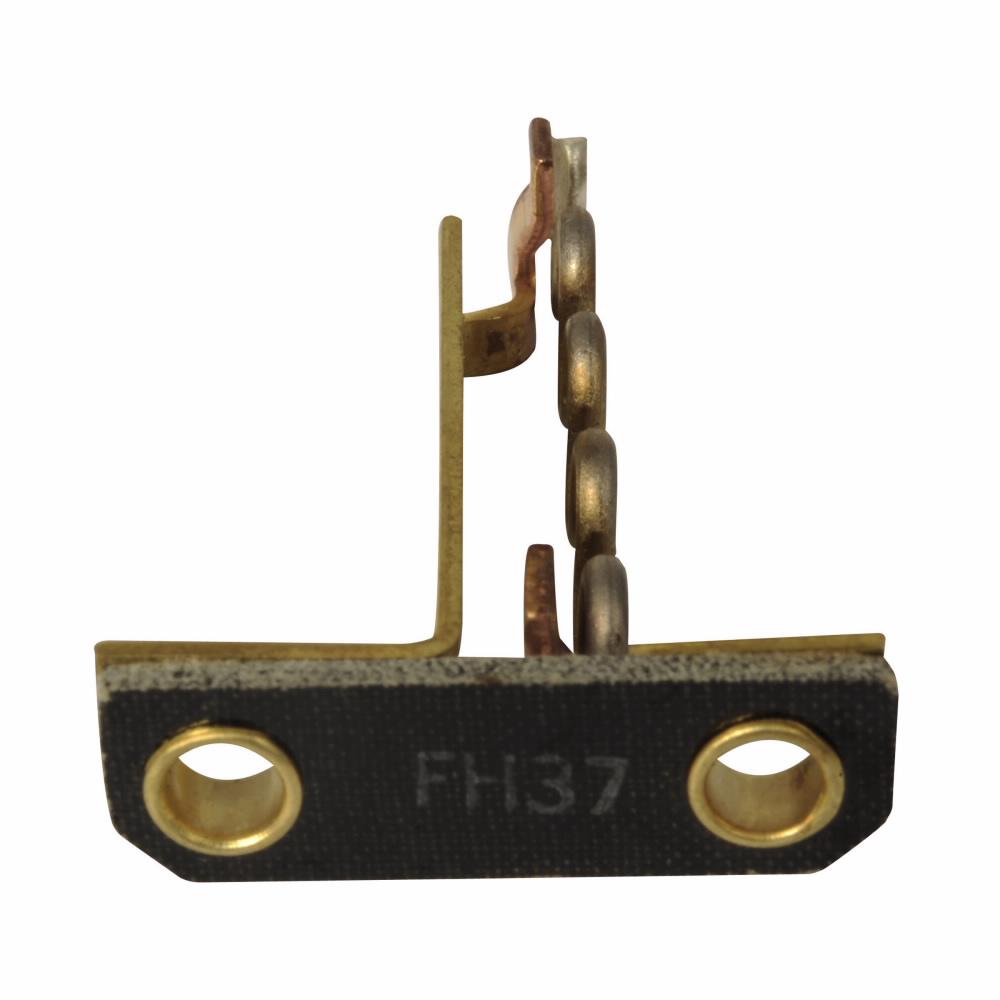

Eaton FH37 A200/B100 Heater

Product Description

The Eaton FH37 A200/B100 heater is designed for use with starter sizes 0, 1, and 2. This heater is compatible with NEMA enclosures and features both thermal and fast trip functionality. It supports ambient full load current ranges of 6.5-7.1A and 7.6-8.2A, and non-compensating full load current ranges of 6.0-6.6A and 7.4-8.0A.

• Used with Starter Sizes 0, 1, and 2
• Thermal and Fast Trip
• Select heater coils based on full load current (FLA) shown on motor nameplate

Product Highlights

Eaton FH37 heater for starter sizes 0, 1, and 2 with thermal and fast trip capabilities.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH37
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: FH37
• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton
• Type: Heater
• Trip Type: Fast Trip,Thermal
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Enclosure Type: NEMA 0/1/2
• Full Load Current: 6.5 to 7.1/7.6 to 8.2 A
• MPN: FH37
• Standard: CSA,UL
• Design: NEMA
• Certifications: UL Listed, CSA Certified
• Full Load Amps: 7.46 to 8.11
• Overload relay: Type A and B
• Sensing Method: Bimetallic
• Full load current range: Ambient 6.5-7.1, 7.6-8.2 A, Non-Comp 6.0-6.6, 7.4-8.0 A
