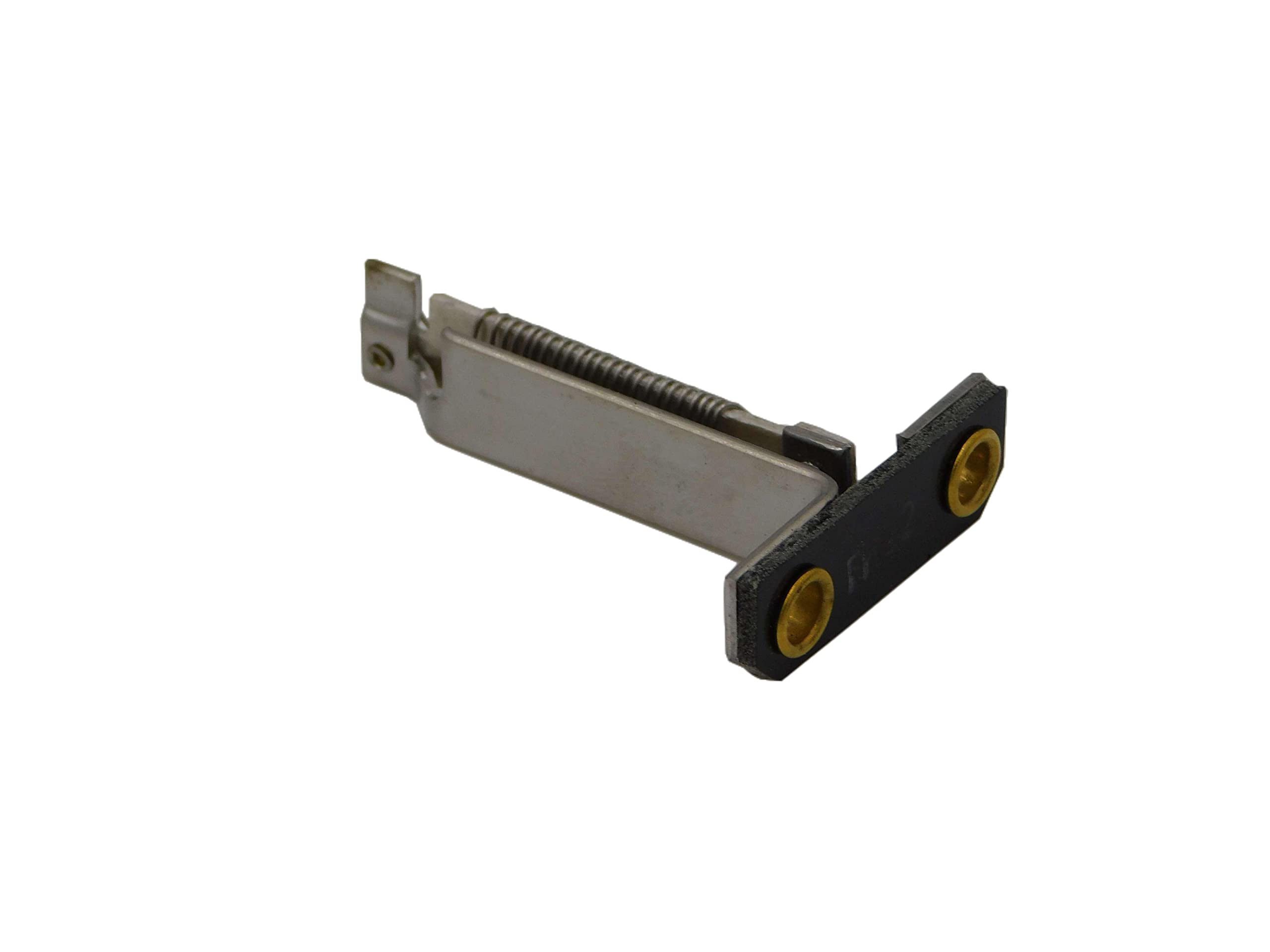

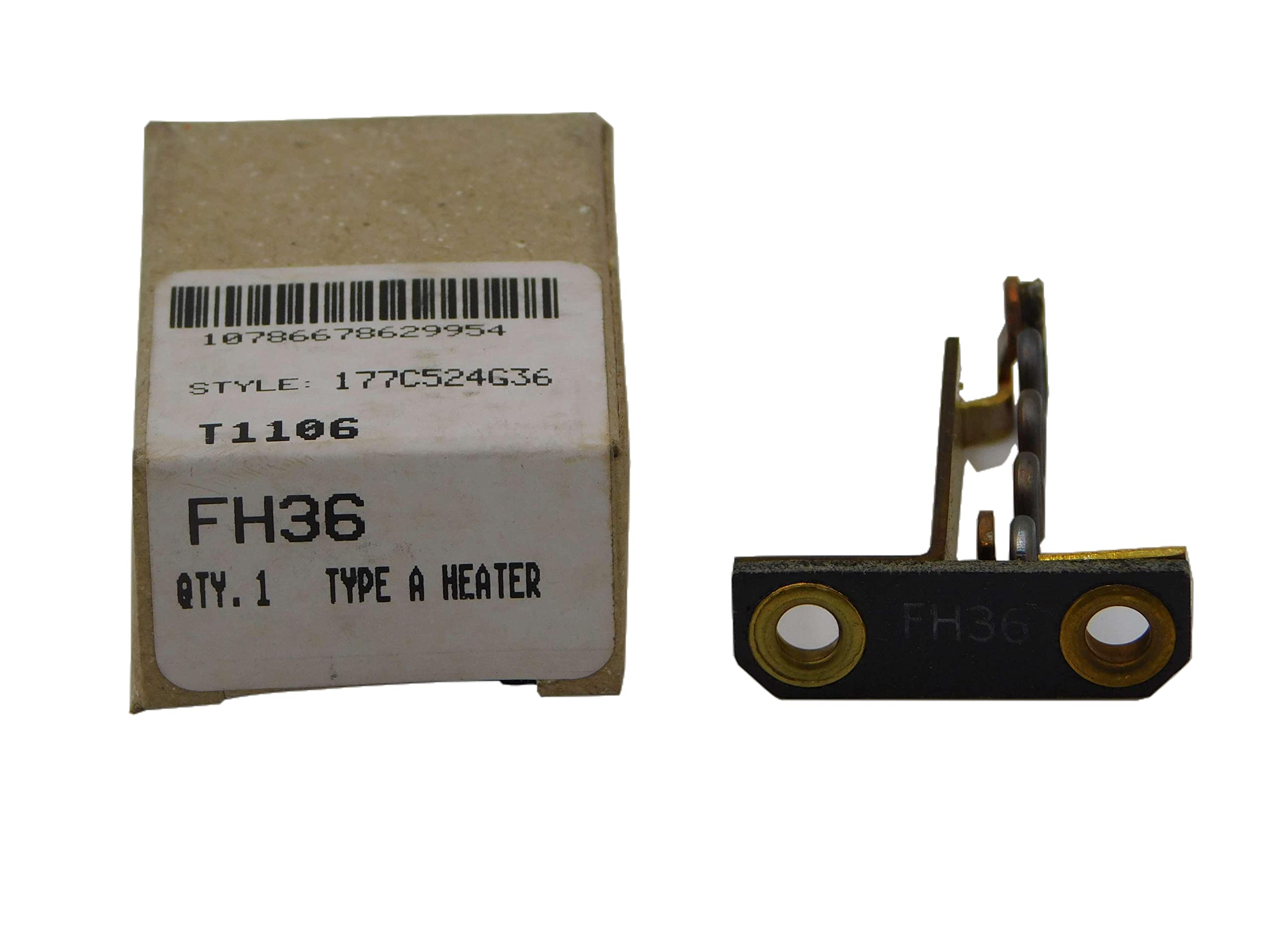

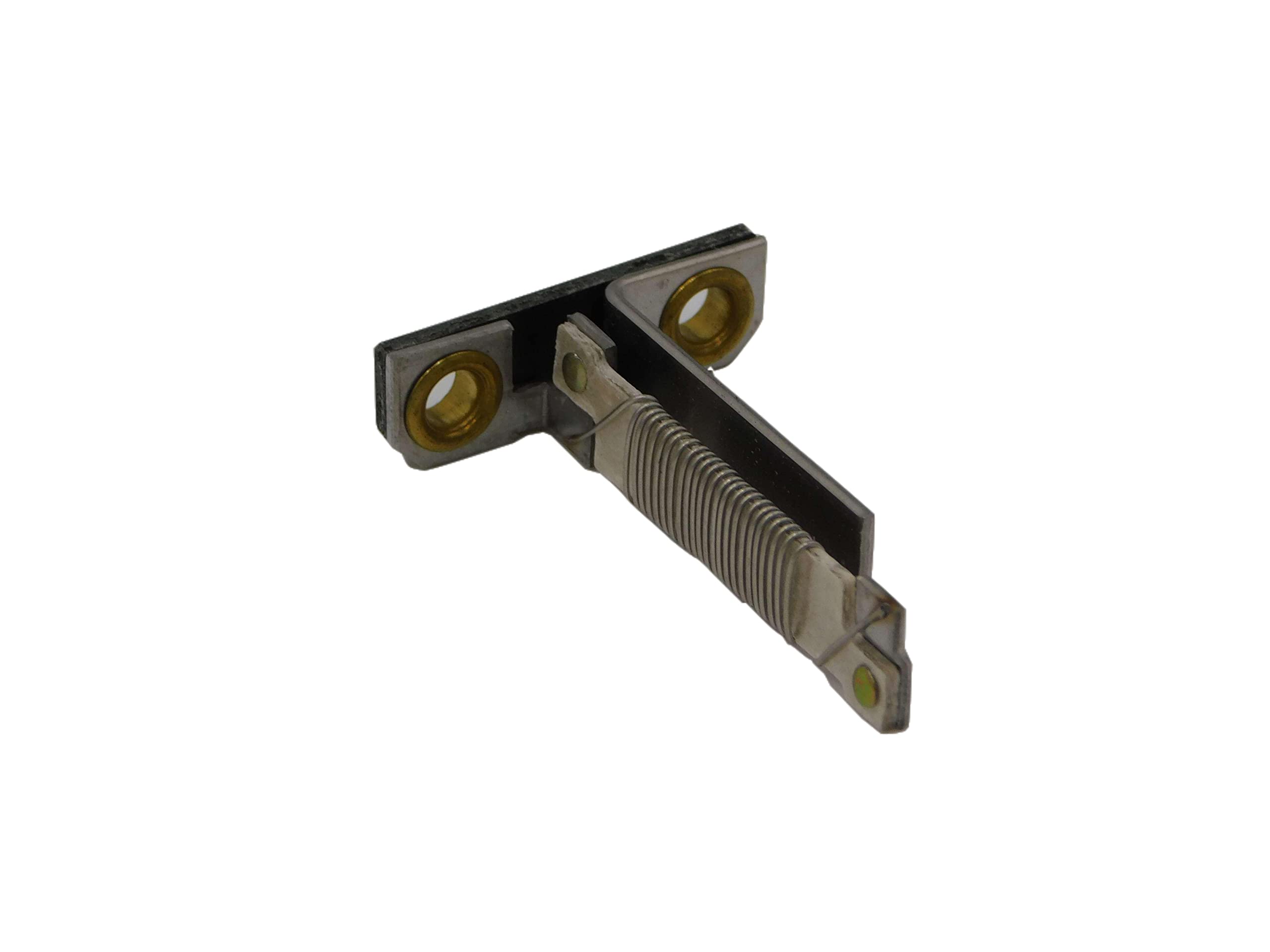

Eaton FH36 Thermal Unit, 6.84 to 7.45A

Product Description

The Eaton FH36 thermal unit replaces damaged or worn thermal units in overload relays. It protects connected loads from overheating and is a required component of thermal-type overload relays. The thermal unit prompts contactors to break electrical connections with downstream equipment once a set temperature is reached.

• Replaces damaged or worn thermal units in overload relays
• Protects connected loads from overheating
• Required components of thermal-type overload relays

Product Highlights

The Eaton FH36 thermal unit protects connected loads from overheating.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH36
• Country of Origin: Dominican Republic

Technical Specifications

• Brand: EATON
• Series: A200/B100
• Amperage: 6.7-7.3
• Approval: UL, CSA
• Protection: Thermal
• Length (in): 2.1
• Width (in): 1.3
• Height (in): 0.8
• For Use With: Starter Sizes 0,1 and 2, Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
• Standards: NEMA
• Nema Size: 0, 1, 2
• Compatible with Series: A200; B100
• Full Load Current: 6 to 6.4 A 6.9 to 7.5 A
• Trip Class: 20
• Overload Protection Type: Thermal
• Enclosure Type: NEMA 0/1/2
• Trip Type: Thermal/Fast
• Size: 2.1 in L x 1.3 in W x 0.8 in H
• Model: FH36
