Eaton FH25 Overload Relay Heater

Product Description

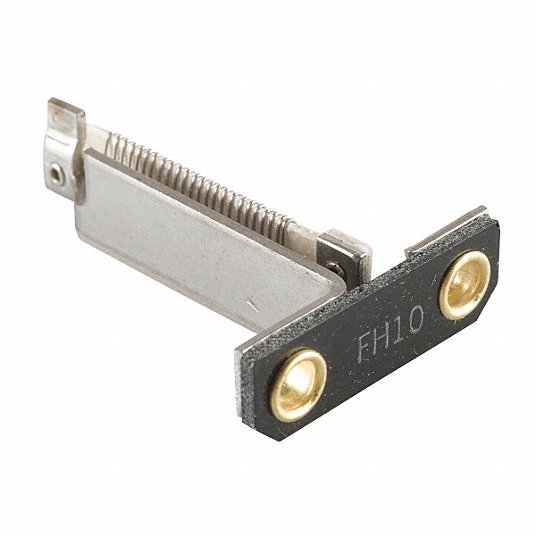

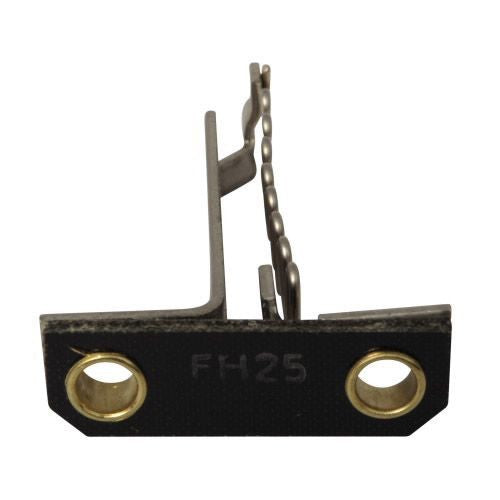

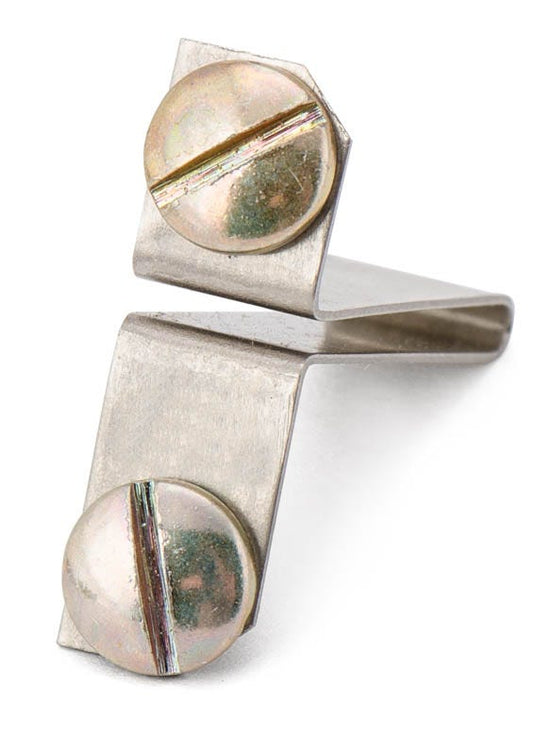

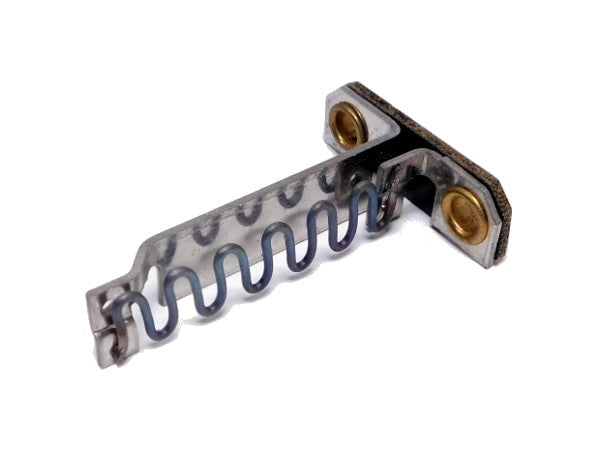

The EATON FH25 is an overload relay heater designed for use with Type A and B overload relays. Each heater is identified by a catalog number stamped on one terminal. It protects connected loads from overheating and causing damage. Heaters should be selected based on the actual full load current and service factor.

• Select heater coils based on full load current (FLA) shown on motor nameplate
• Heater coils are rated to protect 40 deg C rise and a service factor of 1.15
• Replaces damaged or worn thermal units in overload relays

Product Highlights

The EATON FH25 overload relay heater protects motors with a service factor of 1.15. It is compatible with A200 and B100 series and NEMA sizes 0, 1, and 2.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH25
• Country of Origin: Dominican Republic

Technical Specifications

• Approval: UL, CSA
• Manufacturer Name: Eaton
• Motor FLA: 2.16 to 2.70 Ampere
• NEMA Size: 0, 1, 2 (Enclosed/Open)
• PDW ID: ECL79364
• Product UPC: 786678629629
• Trip Type: Thermal, Fast
• Used On: Type A and B Overload Relay
• UNSPSC: 39122330
• Application: For A200 series NEMA 0/1/2 starter, safety, emergency exit devices, industrial facilities and factories facility applications
• Enclosure Type: NEMA 0/1/2
• Type: FH
• Accessory Type: Overload Heater
• Compatible with Series: A200; B100
• Full Load Current: 2.16 to 2.35 A, 2.49 to 2.72 A
• Trip Class: 20
• Overload Protection Type: Thermal
• Compatible with Grainger Part Number: 11Z488; 11Z489; 11Z49; 11Z491; 11Z492; 11Z493; 11Z494; 11Z495; 11Z496; 11Z497
• Compatible with Manufacturer Model Number: B100J0B; B100J0C; B100J1B; B100J1C; B100M0B; B100M0C; B100M1B; B100M1C; B100S0B; B100S0C; B100S1B; B100S1C; B100U0B; B100U0C; B100U1B; B100U1C; B100W0B; B100W0C; B100W1B; B100W1C
• Full Load Current Rating: 2.16 to 2.35/2.49 to 2.72 A
• Catalog ID: C-HFH25
• Series: A200/B100
• Standard & Approvals: UL Listed, CSA Certified
• Brand: EATON
• Amperage: 2.44-2.66
• Protection: Thermal
• Length (in): 2.1
• Width (in): 1.3
• Height (in): 0.8
• For Use With: Starter Sizes 0,1 and 2, Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
• Standards: NEMA
• Mpn: FH25
• Upc: 786678629629
• Gtin: 786678629629
• Manufacturer: Eaton / Cutler Hammer
