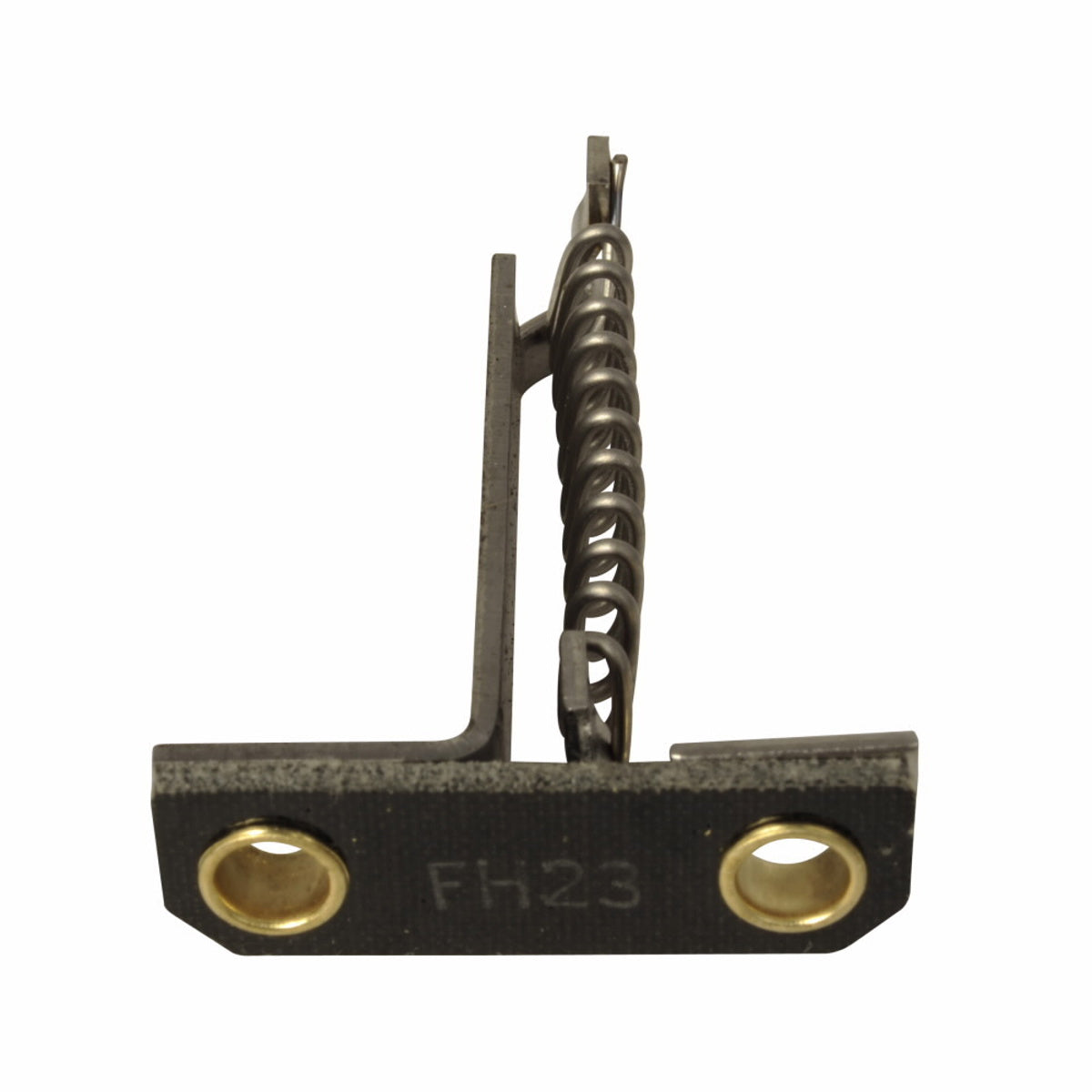

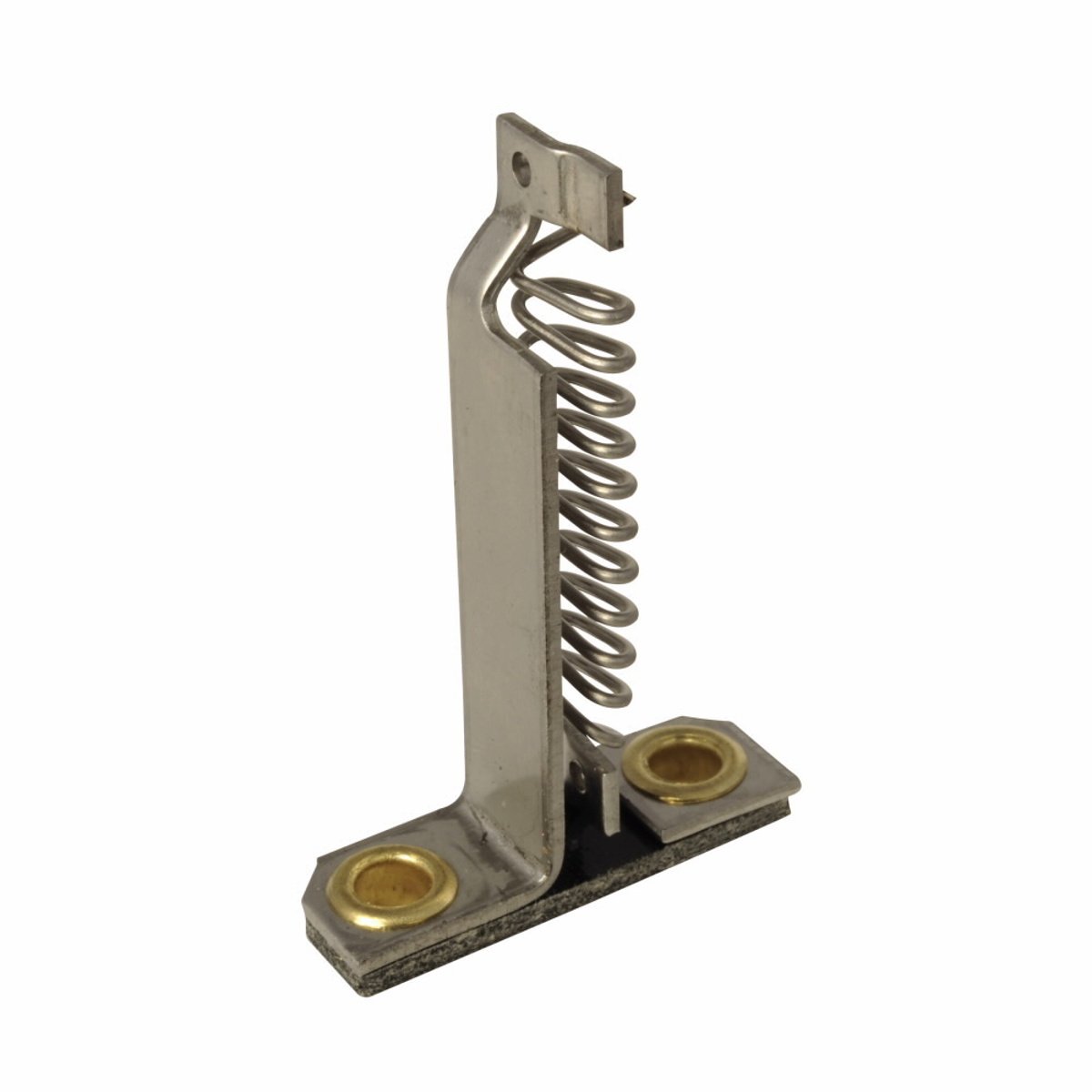

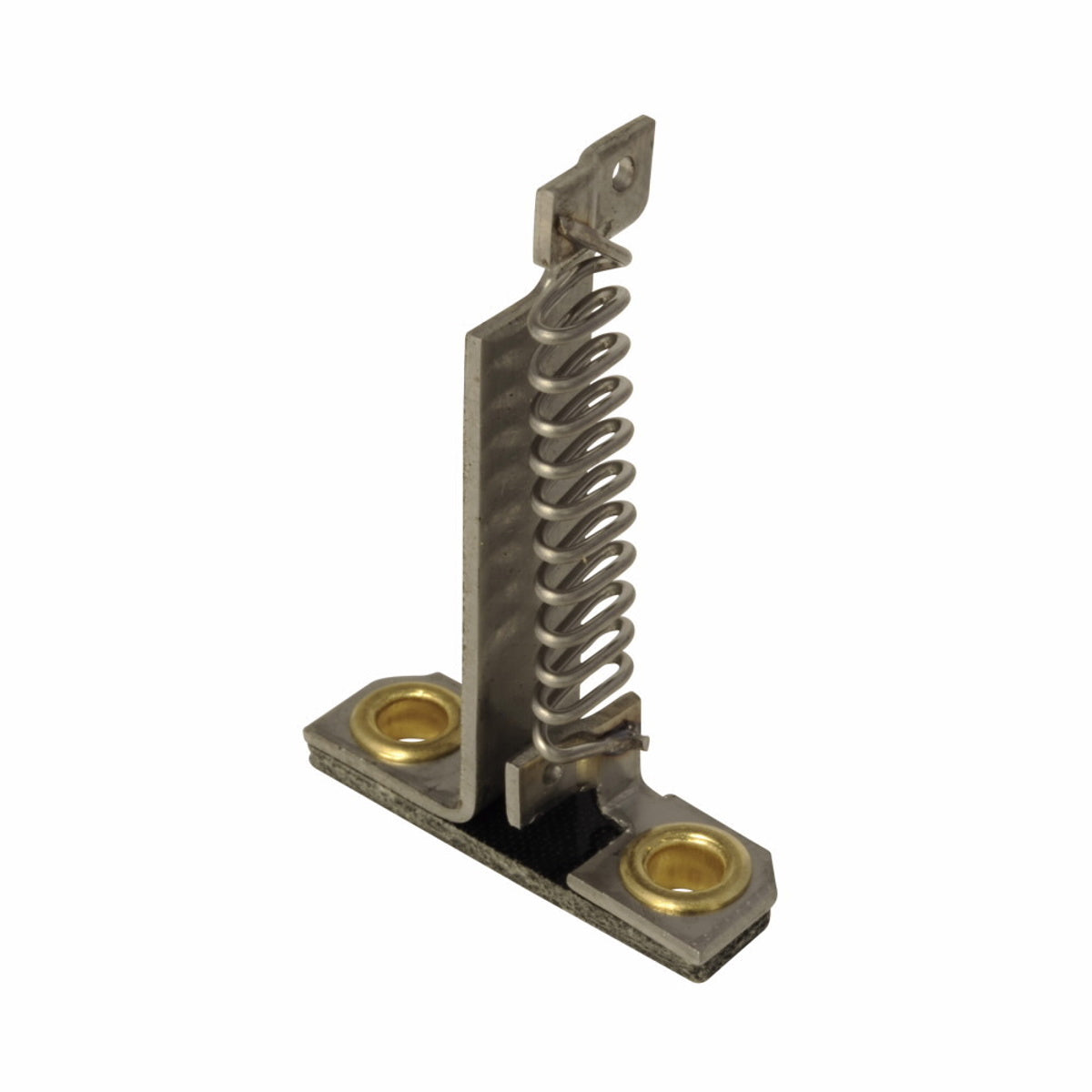

Eaton FH23 A200/B100 Heater Used with Starter Sizes 0, 1, and 2

Product Description

The Eaton FH23 A200/B100 heater is designed for maximum motor protection and compliance. This heater is used with starter sizes 0, 1, and 2, and is suitable for type A and B overload relays. It is designed to be selected based on the motor's full load current for optimal performance.

• Used with Starter Sizes 0, 1, and 2
• Thermal and fast trip
• Select heater coils based on full load current (FLA) shown on motor nameplate

Product Highlights

Eaton FH23 A200/B100 heater ensures motor protection and is compatible with various starter sizes and overload relays.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH23
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: FH23
• Manufacturer: Eaton
• Brand: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Application: Ind Facilities & Factories - Industrial Facilities/Factories - Other
• Special Features: Used with Starter Sizes 0,1, and 2
• Standard: UL Listed,CSA Certified
• UPC: 786678629568
• GTIN: 00786678629568
• Item Type: Heater
• Trip Type: Thermal and fast trip
• Enclosure Type: NEMA 0/1/2
• Full Load Current: 1.79 to 1.95/2.07 to 2.26 A Ambient, 1.66 to 1.81/2.02 to 2.21 A Non-Comp
• Type: A200/B100 Heater
• Motor FLA: 1.79 to 2.26 Ampere
• NEMA Size: 0, 1, 2 (Enclosed/Open)
• PDW ID: ECL79362
• Product UPC: 786678629568
• Used On: Type A and B Overload Relay
• Height: 0.8 Inch
• Length: 2.1 Inch
• Product Length/Depth: 2.1 in
• Product Height: 0.8 in
• Product Width: 1.3 in
• Certifications: UL Listed CSA Certified
• Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
• Global Catalog: FH23
• Product Type: Heater
• Design: NEMA
• Full load current range: Ambient 1.79-1.95, 2.07-2.26 A, Non-Comp 1.66-1.81, 2.02-2.21 A
• Overload relay: Type A and B
• Amps: 2.260
• Amps Range: 1.660 - 2.260
